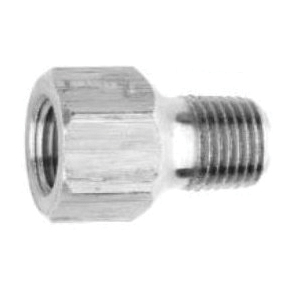

Trerice 872-1 Pressure Snubber, 1/4 in Inlet Pipe, Brass
- Manufacturer: H.O. Trerice
- Brand Name: Trerice
- Part#: TRE872-1
- MPN: 872-1
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
872 Series Pressure Snubbers are designed to improve readability and prevent wear on delicate gauge mechanisms by slowing rapid pressure changes and reducing shock and chattering. A pressure snubber should be installed on a gauge in any application where pressure spikes and/or pulsations may be present. If a single snubber does not correct the oscillation, it is recommended to place an additional snubber in line with the first. Trerice Pressure Snubbers reduce the pulsation by forcing the pressure medium through a porous metal core and are constructed from lead-free brass (PBF) or 303 stainless steel for use on a variety of pressure media.
Trerice Pressure Snubber, 872 Series, 1/4 in Inlet Pipe, Material Construction: Brass, 1-1/4 in L, 1000 psig Maximum Operating Pressure, Additional Information: NPT Connection Type, Air and Gases Service
| Additional Information | : | NPT Connection Type, Air and Gases Service |
| Dimensions | : | 1-1/4 in L |
| Fitting Type | : | Pressure Snubber |
| Inlet Pipe Size | : | 1/4 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Maximum Operating Pressure | : | 1000 psig |
| Series | : | 872 Series |
