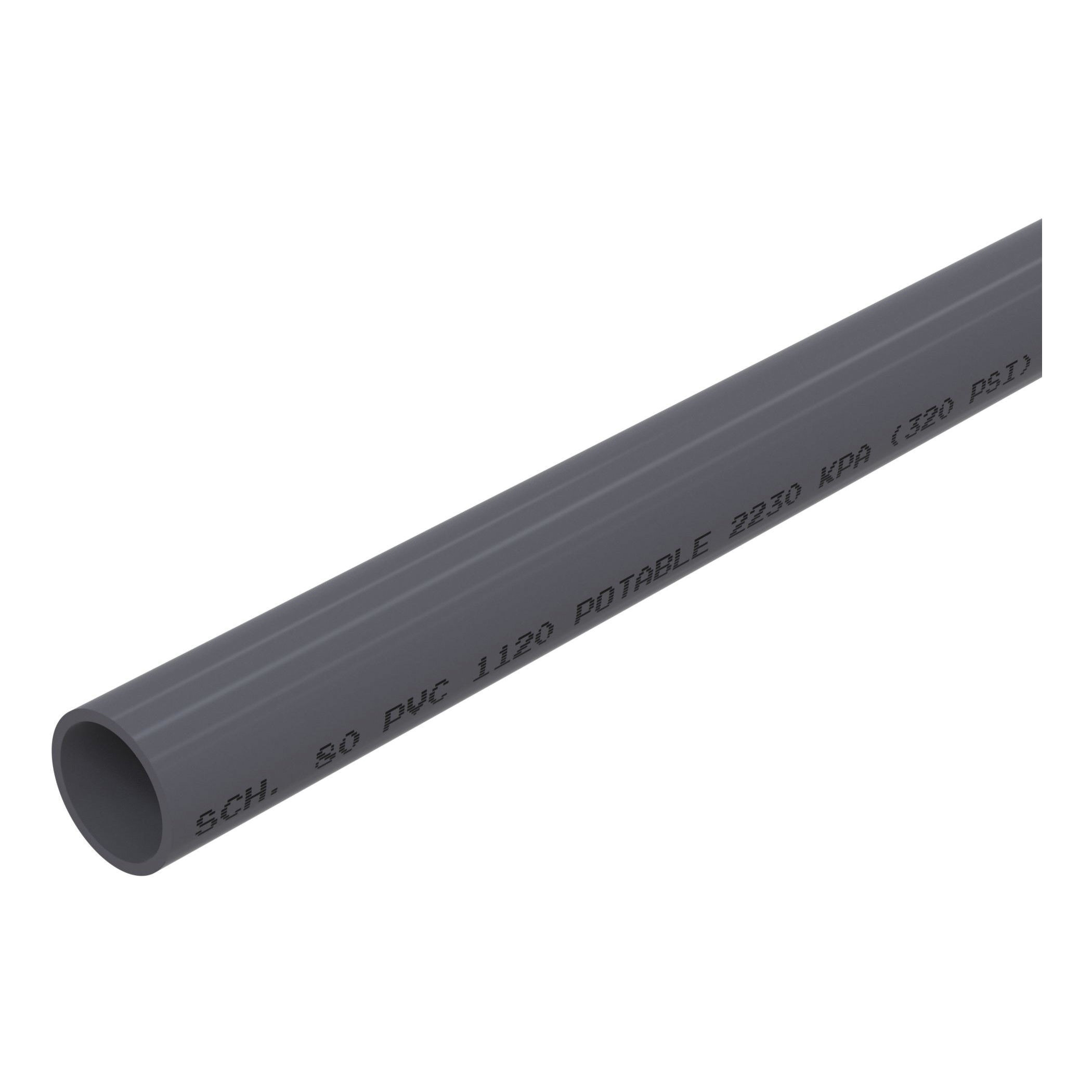

Xirtec® 085160 Pressure Pipe, 6 in Nominal Pipe, Plain End, 5.709 in ID, 6-5/8 in OD, 20 ft, SCH 80, PVC, Gray
- Manufacturer: IPEX®
- Brand Name: Xirtec®
- Part#: PVP80P6-20
- MPN: 085160
- UPC: 061194203981
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Xirtec PVC Pipe is designed to meet the temperature, pressure and size requirements of piping systems used in chemical processes and other industrial applications. They feature outstanding resistance to photodegradation, creep stress and immunity to oxidation, and are exceptionally suited for use with a wide range of acids, alcohols, salts and halogens. The perfect extended service, low maintenance alternative to common and exotic metal systems.
Xirtec® Pressure Pipe, Nominal Pipe Size: 6 in, Plain End Connection, 5.709 in ID, 6-5/8 in OD, 20 ft Length, 0.432 in Wall Thickness, 280 psi Pressure, SCH 80 Schedule, Material Standard: ASTM D1785, PVC, Gray, 73 deg F, Domestic/Import: Domestic
| Color | : | Gray |
| Connection Type | : | Plain End |
| Domestic/Import | : | Domestic |
| Inside Diameter | : | 5.709 in |
| Length | : | 20 ft |
| Material Standard | : | ASTM D1785 |
| Material | : | PVC |
| Nominal Pipe Size | : | 6 in |
| Outside Diameter | : | 6-5/8 in |
| Pressure Rating | : | 280 psi |
| Schedule Rating | : | SCH 80 |
| Temperature Rating | : | 73 deg F |
| Wall Thickness | : | 0.432 in |
- Meets ASTM D1785 requirements and is third party certified to CSA B137.3 or NSF 14
- Max service temperature 140 Degrees F (60 Degrees C) in pressure, 180 Degrees F (82 Degrees C) for intermittent gravity flow
- Interior remains smooth in virtually ever service, making it resistant to rust, pit, scale & corrosion
- Lower material costs and environmentally responsible as it is made with half the energy needed to product the same size steel/steel alloy
