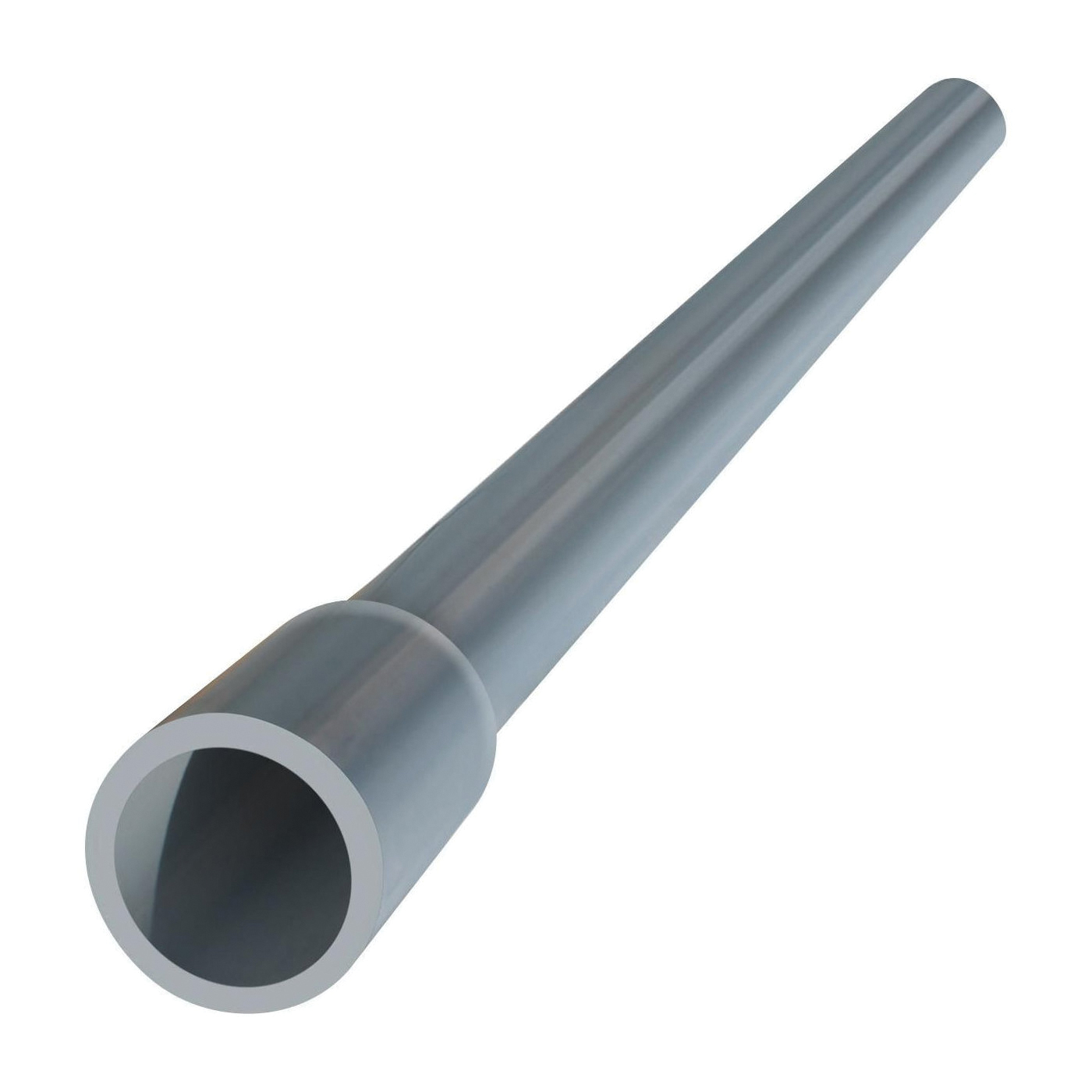

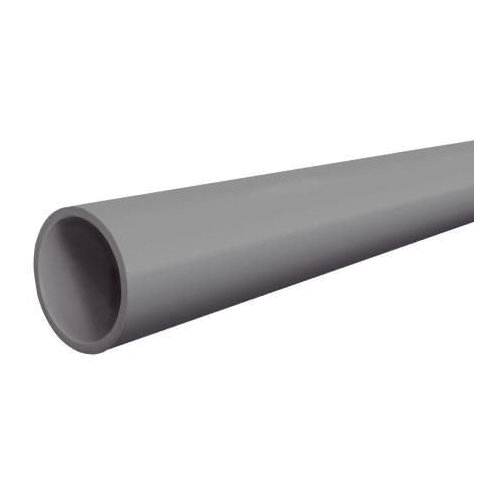

Xirtec® 022004 Pressure Pipe, 1/2 in Nominal Pipe, Bell End, 0.602 in ID, 0.84 in OD, 10 ft, SCH 40, PVC, Gray
- Manufacturer: Aliaxis Group SA
- Brand Name: Xirtec®
- Part#: PVP40P12-10
- MPN: 022004
- UPC: 622454220041
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Xirtec PVC Pipe is designed to meet the temperature, pressure and size requirements of piping systems used in chemical processes and other industrial applications. They feature outstanding resistance to photodegradation, creep stress and immunity to oxidation, and are exceptionally suited for use with a wide range of acids, alcohols, salts and halogens. The perfect extended service, low maintenance alternative to common and exotic metal systems.
Xirtec® Pressure Pipe, Nominal Pipe Size: 1/2 in, Bell End Connection, 0.602 in ID, 0.84 in OD, 10 ft Length, 0.109 in Wall Thickness, 600 psi Pressure, SCH 40 Schedule, Material Standard: ASTM D1785, PVC, Gray, 140 deg F
| Color | : | Gray |
| Connection Type | : | Bell End |
| Inside Diameter | : | 0.602 in |
| Length | : | 10 ft |
| Material Standard | : | ASTM D1785 |
| Material | : | PVC |
| Nominal Pipe Size | : | 1/2 in |
| Outside Diameter | : | 0.84 in |
| Pressure Rating | : | 600 psi |
| Schedule Rating | : | SCH 40 |
| Temperature Rating | : | 140 deg F |
| Wall Thickness | : | 0.109 in |
- Meets ASTM D1785 requirements and is third party certified to CSA B137.3 or NSF 14
- Max service temperature 140 Degrees F (60 Degrees C) in pressure, 180 Degrees F (82 Degrees C) for intermittent gravity flow
- Interior remains smooth in virtually every service, making it resistant to rust, pit, scale & corrosion
- Lower material costs and environmentally responsible as it is made with half the energy needed to product the same size steel/steel alloy
