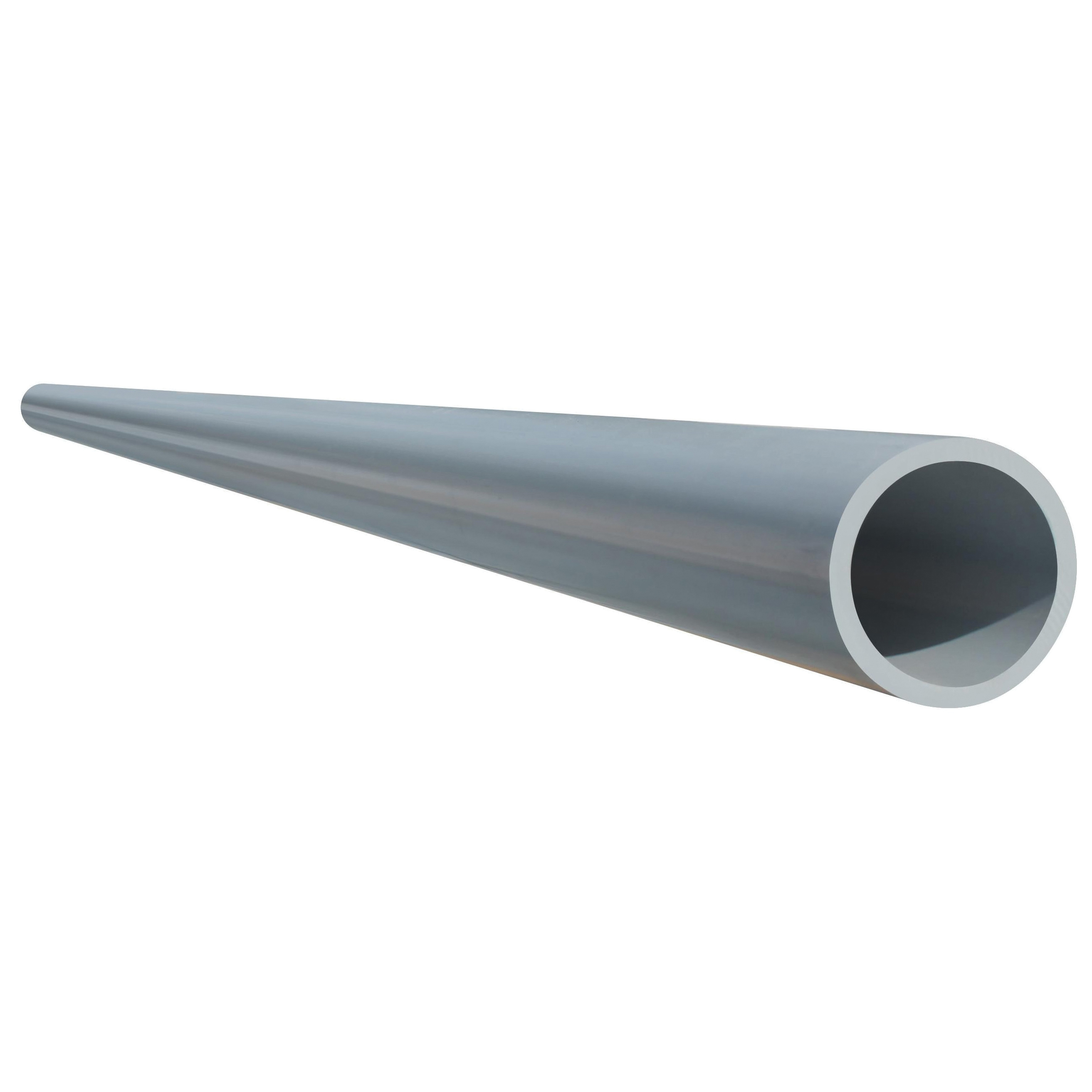

System 15® 010002 Pipe, 2 in Nominal Pipe, Plain End x Solvent Weld, 2.01 in ID, 2.38 in OD, 12 ft, SCH 40, PVC
- Manufacturer: Aliaxis Group SA
- Brand Name: System 15®
- Part#: PDP2
- MPN: 010002
- UPC: 622454100022
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
System 15 is a cost-effective "workhorse" designed for the majority of low building and light commercial applications where DWV systems don't run through air plenums. Available in 12 foot lengths and feature a plain end for most common connections.
System 15® Pipe, Nominal Pipe Size: 2 in, Plain End x Solvent Weld Connection, 2.01 in ID, 2.38 in OD, 12 ft Length, 0.15 in Wall Thickness, SCH 40 Schedule, Welded Method of Manufacture, PVC, 140 deg F
| Connection Type | : | Plain End x Solvent Weld |
| Inside Diameter | : | 2.01 in |
| Length | : | 12 ft |
| Material | : | PVC |
| Method of Manufacture | : | Welded |
| Nominal Pipe Size | : | 2 in |
| Outside Diameter | : | 2.38 in |
| Schedule Rating | : | SCH 40 |
| Temperature Rating | : | 140 deg F |
| Wall Thickness | : | 0.15 in |
- Certified to CSA B181.2
- Made to Schedule 40 thickness
- Exhibits a Flame Spread Rating of not greater than 25 as per ULC S102.2 test methods
- With some restrictions, System 15 is permitted for use in many commercial DWV applications.
