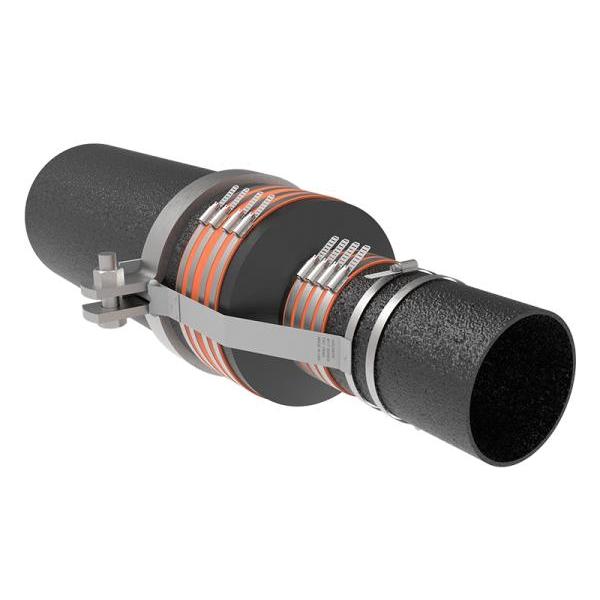

HoldRite® 117-R-G Series 117-12X8R-G Short Reducer Restraint, 12 x 8 in Pipe, No-Hub, Iron/Stainless Steel/Steel
- Manufacturer: Reliance Worldwide Corporation
- Brand Name: HoldRite®
- Part#: HLR117-12X8R-G
- MPN: 117-12X8R-G
- UPC: 671119803426
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The HOLDRITE® #117-10X4 thru -15X8 (R or R-G) Series No-Hub Fitting Restraints are designed to reinforce no-hub cast iron installations in accordance with the installation instructions of U.S. cast iron soil pipe manufacturers , CISPI Designation 310-11 and the 2006 CISPI Installation Handbook. The #117-R Series kits retain the Short Reducer onto the adjoining piping. All stainless steel bands must be torqued to 60 in/lbs. minimum and the pipe clamps torqued to 60 ft/lbs. When installed correctly, these restraint brackets achieve a safe thrust pressure rating equal to 50' head of water pressure for 10" models and 40' for 12"-15". Models ending in "-G" represent "galvanized".
HoldRite® Short Reducer Restraint, 117-R-G Series, 12 x 8 in Pipe, No-Hub Connection, Iron/Stainless Steel/Steel
| Connection Type | : | No-Hub |
| Material | : | Iron/Stainless Steel/Steel |
| Pipe Size | : | 12 x 8 in |
| Series | : | 117-R-G Series |
- Galvanized steel components
Catalog
