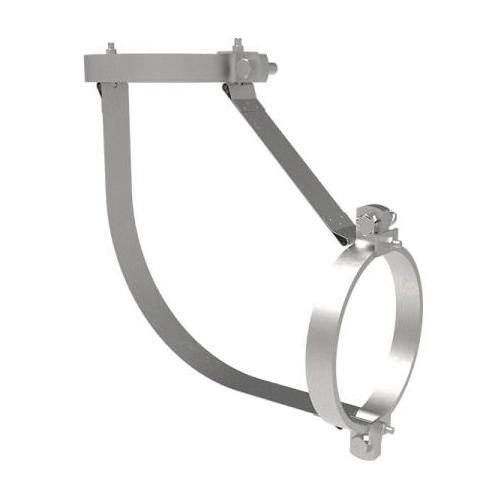

HoldRite® 117-K Series 117-12K 90 deg Quarter Bend Short Sweep Restraint, 12 in Pipe, No-Hub
- Manufacturer: Reliance Worldwide Corporation
- Brand Name: HoldRite®
- Part#: HLR117-12K
- MPN: 117-12K
- UPC: 671119117127
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

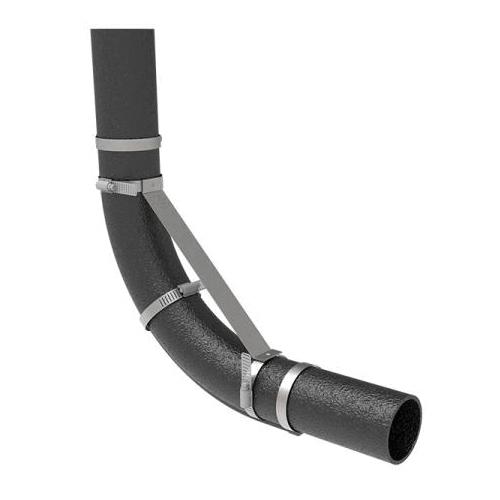

Pick from a range of short sweep quarter-bend restraints depending on the pipe size you are working with. The 117-K 10, 12 and 15 in sizes retain the 90 deg elbow onto the adjoining pipe. When installed correctly, these restraint brackets achieve safe thrust pressure rating equal to 50 ft head of water pressure for 10 in models and 40 ft head of water pressure for 12 to 15 in models.
HoldRite® 90 deg Quarter Bend Short Sweep Restraint, 117-K Series, 12 in Pipe, No-Hub Connection
| Connection Type | : | No-Hub |
| Pipe Size | : | 12 in |
| Series | : | 117-K Series |
- Ideal for restraining hub-less cast iron soil pipe against separation during high thrust conditions
- Engineered to meet plumbing codes, pipe manufacturers' installation instructions, and CISPI installation handbook
- Installs in minutes
- Built with stainless steel, black iron and/or galvanized components
- No special tools required for installation
- No field cutting or modifications required
