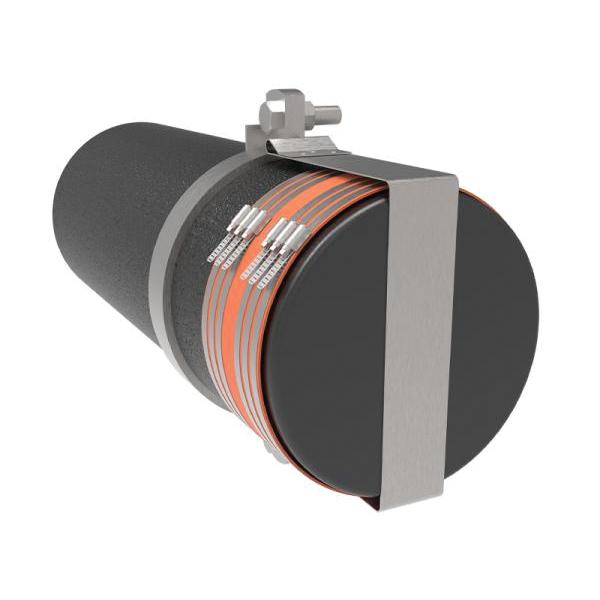

HoldRite® 117-BP-G Series 117-12BP-G Blind Plug Restraint, 12 in Pipe, No-Hub, Iron/Steel
- Manufacturer: Reliance Worldwide Corporation
- Brand Name: HoldRite®
- Part#: HLR117-12BP-G
- MPN: 117-12BP-G
- UPC: 671119803129
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The HOLDRITE® #117-10, -12 & -15 (BP or BP-G) Series No-Hub Fitting Restraints are designed to reinforce no-hub cast iron installations in accordance with the installation instructions of U.S. cast iron soil pipe manufacturers , CISPI Designation 310-11 and the 2006 CISPI Installation Handbook. The #117-10, -12 & -15 (BP or BP-G), 10" - 15" pipe size, restraints retain a blind plug onto the adjoining pipe. When installed correctly, these restraint brackets achieve a safe thrust pressure rating equal to 50' head of water pressure. Pipe clamps must be torqued to 60 ft/lbs. Models ending in "-G" represent "galvanized".
HoldRite® Blind Plug Restraint, 117-BP-G Series, 12 in Pipe, No-Hub Connection, Iron/Steel
| Connection Type | : | No-Hub |
| Material | : | Iron/Steel |
| Pipe Size | : | 12 in |
| Series | : | 117-BP-G Series |
- Galvanized steel components
