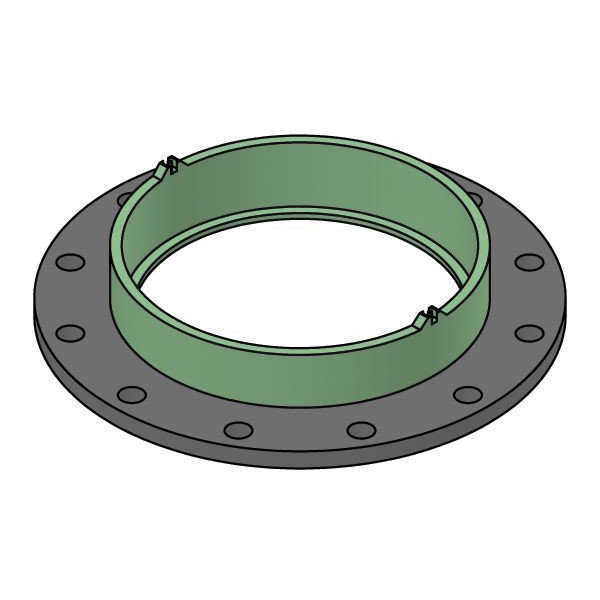

Enfield™ 257363 Fabricated Flange, 12 in Electrofusion x 12 in Electrofusion, Polypropylene, 150 lb
- Manufacturer: IPEX®
- Brand Name: Enfield™
- Part#: ENFL3612
- MPN: 257363
- UPC: 622454039414
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Enfield electrofusion polypropylene acid waste systems effectively handle a variety of corrosive chemicals and pH levels found in various chemical waste applications. Fittings are constructed with a heavy-gauge resistance wire integrally molded in the socket, with jointing completed by energizing the resistance wire via a microprocessor controlled Enfusion Control Unit. The result is unprecedented control of jointing and unparalleled joint reliability and repeatability in above- and below-grade acid waste applications. Enfield offers NSF-approved polypro fittings manufactured from flame-retardant polypropylene, which has an operating temperature range from -10 Degrees F (-23 Degrees C) to 212 Degrees F (100 Degrees C). Several joints can be made at one time. Fittings are quick and easy to connect and install and are maintenance free. Enfield Electrofusion fabricated flange (ASA 150 socket) fittings come in 8", 10" and 12" sizes. Backing plates, bolts and gaskets sold separately.
Enfield™ Fabricated Flange, Flange Fitting, 12 in Connection Size 1, Connection Type 1: Electrofusion, 12 in Connection Size 2, Connection Type 2: Electrofusion, Electrofusion|Electrofusion Connection, Polypropylene, Material Construction: Polypropylene, 3/4 in Flange Thickness, 1 in Bolt Hole Diameter, Pressure Class: 150 lb, 19 in W, -10 to 212 deg F, Additional Information: SCH 40 Schedule Rating
| Additional Information | : | SCH 40 Schedule Rating |
| Bolt Hole Diameter | : | 1 in |
| Connection Size 1 | : | 12 in |
| Connection Size 2 | : | 12 in |
| Connection Type 1 | : | Electrofusion |
| Connection Type 2 | : | Electrofusion |
| Connection Type | : | Electrofusion|Electrofusion |
| Dimensions | : | 19 in W |
| Fitting Type | : | Flange |
| Flange Thickness | : | 3/4 in |
| Material Construction | : | Polypropylene |
| Material | : | Polypropylene |
| Pressure Class | : | 150 lb |
| Temperature Rating | : | -10 to 212 deg F |
- Fabricated flange (ASA 150 socket) in 8", 10" and 12" sizes
- For use with Enfield electrofusion polypropylene acid waste systems
- Unparalleled joint reliability and repeatability
- Flame-retardant polypropylene
- Heavy-gauge resistance wire molded into sockets for controlled fusion of joints
- Microprocessor controlled Enfusion Control Unit ensures secure joints
- Temperature range from -10 Degrees F (-23 Degrees C) to 212 Degrees F (100 Degrees C)
- Easy connecting
- Easy to install
- Maintenance free
- NSF listed
