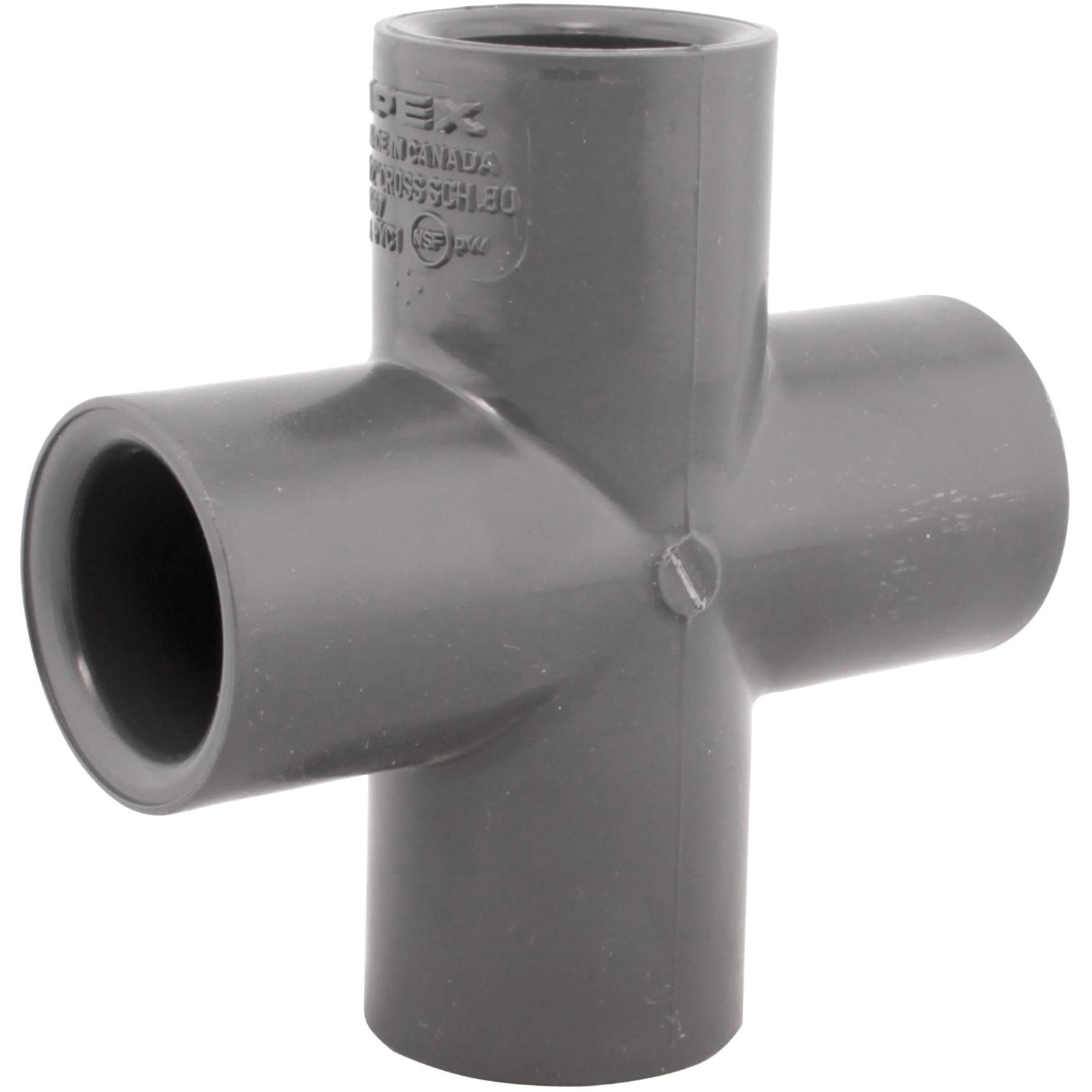

Xirtec® 036120 Pipe Cross, 1-1/2 in|1-1/2 in|1-1/2 in|1-1/2 in, Socket|Socket|Socket|Socket, PVC, SCH 80
- Manufacturer: Aliaxis Group SA
- Brand Name: Xirtec®
- Part#: P801100-112
- MPN: 036120
- UPC: 622454361201
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Xirtec PVC Schedule 80 crosses feature socket-ends for solvent weld connections. These crosses allow for three outlets and one inlet or vice versa.
Xirtec® Pipe Cross, Cross Fitting, 1-1/2 in Connection Size 1, Connection Type 1: Socket, 1-1/2 in Connection Size 2, Connection Type 2: Socket, Connection Size 3: 1-1/2 in, Connection Type 3: Socket, Connection Size 4: 1-1/2 in, Connection Type 4: Socket, 1-1/2 in|1-1/2 in|1-1/2 in|1-1/2 in Connection, Socket|Socket|Socket|Socket Connection, PVC, Material Construction: PVC, SCH 80, 2.575 in OD
| Connection Size 1 | : | 1-1/2 in |
| Connection Size 2 | : | 1-1/2 in |
| Connection Size 3 | : | 1-1/2 in |
| Connection Size 4 | : | 1-1/2 in |
| Connection Size | : | 1-1/2 in|1-1/2 in|1-1/2 in|1-1/2 in |
| Connection Type 1 | : | Socket |
| Connection Type 2 | : | Socket |
| Connection Type 3 | : | Socket |
| Connection Type 4 | : | Socket |
| Connection Type | : | Socket|Socket|Socket|Socket |
| Dimensions | : | 2.575 in OD |
| Fitting Type | : | Cross |
| Material Construction | : | PVC |
| Material | : | PVC |
| Schedule Rating | : | SCH 80 |
- Max service temperature 140 Degrees F (60 Degrees C) in pressure, 180 Degrees F (82 Degrees C) for intermittent gravity flow
- Interior remains smooth in virtually ever service, making it resistant to rust, pit, scale & corrosion
- Outstanding resistance to chemicals such as most acids, alcohols, alkalis, salt solutions, halogens and more
- Suitable for use with potable water as listed with the National Sanitation Foundation (NSF) & CSA International
- Lower material costs environmentally responsible as it is made with half the energy needed to product the same size steel/steel alloy
