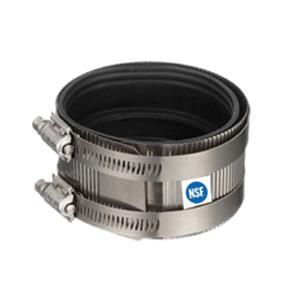

MIFAB® MI-HUB-2 Regular-Duty Coupling, 2 in No-Hub x 2 in No-Hub, Stainless Steel

MIFAB® Series MI-HUB (specify size) shielded no-hub couplings are manufactured with gaskets made from neoprene that meets the requirements of ASTM C564 housed inside a 301 stainless steel corrugated shield. Two (2 to 4 in size), four (6 to 10 in size) or six (12 in and 15 in sizes) 301 stainless steel clamps tightened with 5/16 in 305 stainless steel hex head screws surround the shield to provide the sealing force. MI-HUB Series couplings are tested and certified to the ASTM C1277-2018, CISPI 310-2010, CSA B602-2016 (file no. 247608) and B70 standards. They are listed with IAPMO and NSF certified to CISPI 310. Also tested and certified by Intertek testing services to CAN/ULC S102.2-07 "smoke test".

MIFAB® Regular-Duty Coupling, Series: MI-HUB Series, Coupling Fitting, 2 in Connection Size 1, No-Hub Connection Type 1, 2 in Connection Size 2, No-Hub Connection Type 2, No-Hub|No-Hub Connection, Stainless Steel, 301 Stainless Steel Material Construction, 20 psi, 2-1/8 in L, Additional Information: 2 Clamps, 60 in-lb Torque, 9/16 in W Clamp Band

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/MIFAB_MI_HUB_2_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/MIFAB_MI_HUB_2_Specification_Sheet.pdf
