199MBH FIRE TUBE HTG BLR
- Manufacturer: Independent Mechanical Supply
- Brand Name: Independent Mechanical Supply
- Part#: NTIFTVN199 SERIES 2
- MPN: FTVN199 SERIES 2
- UPC: 628233739155
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

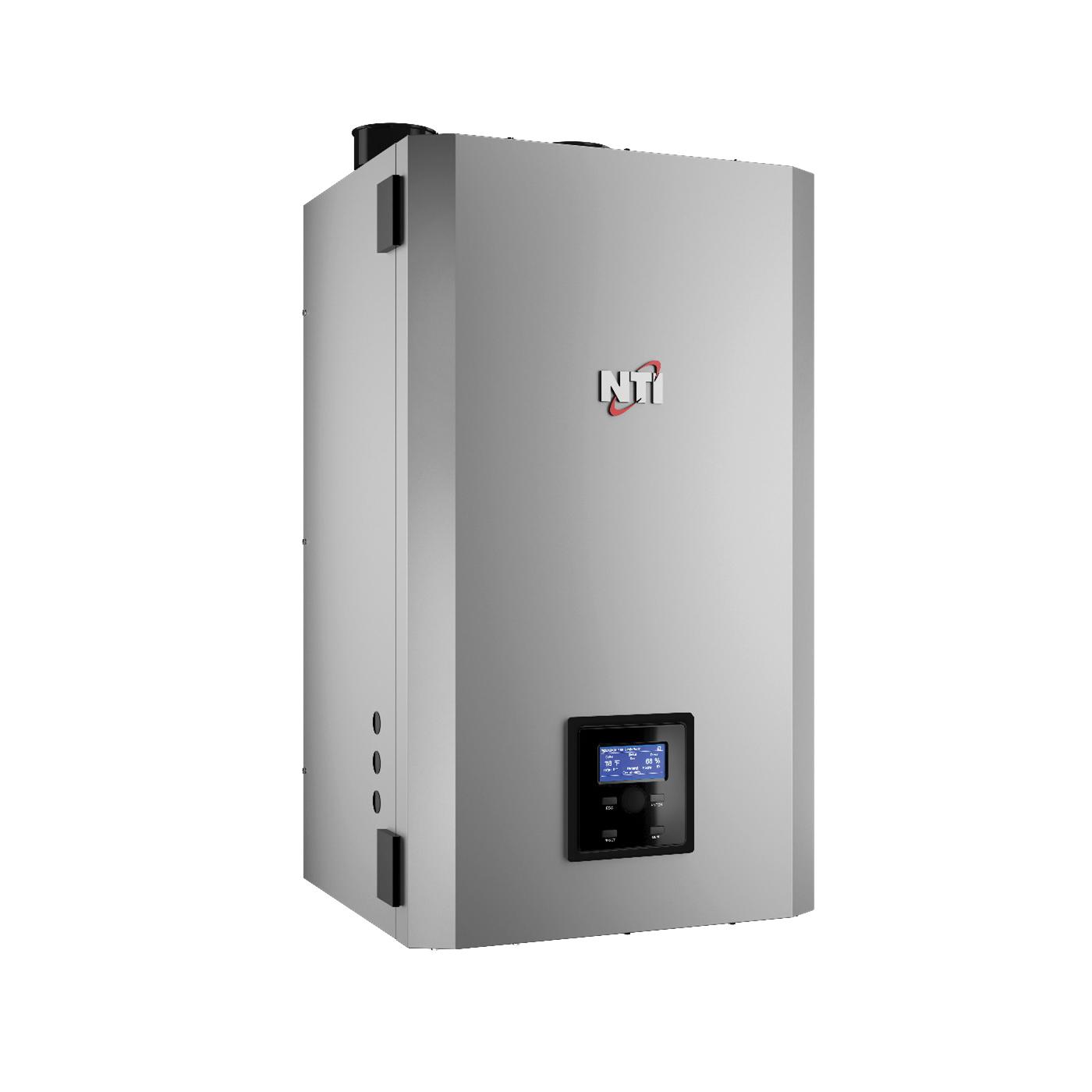

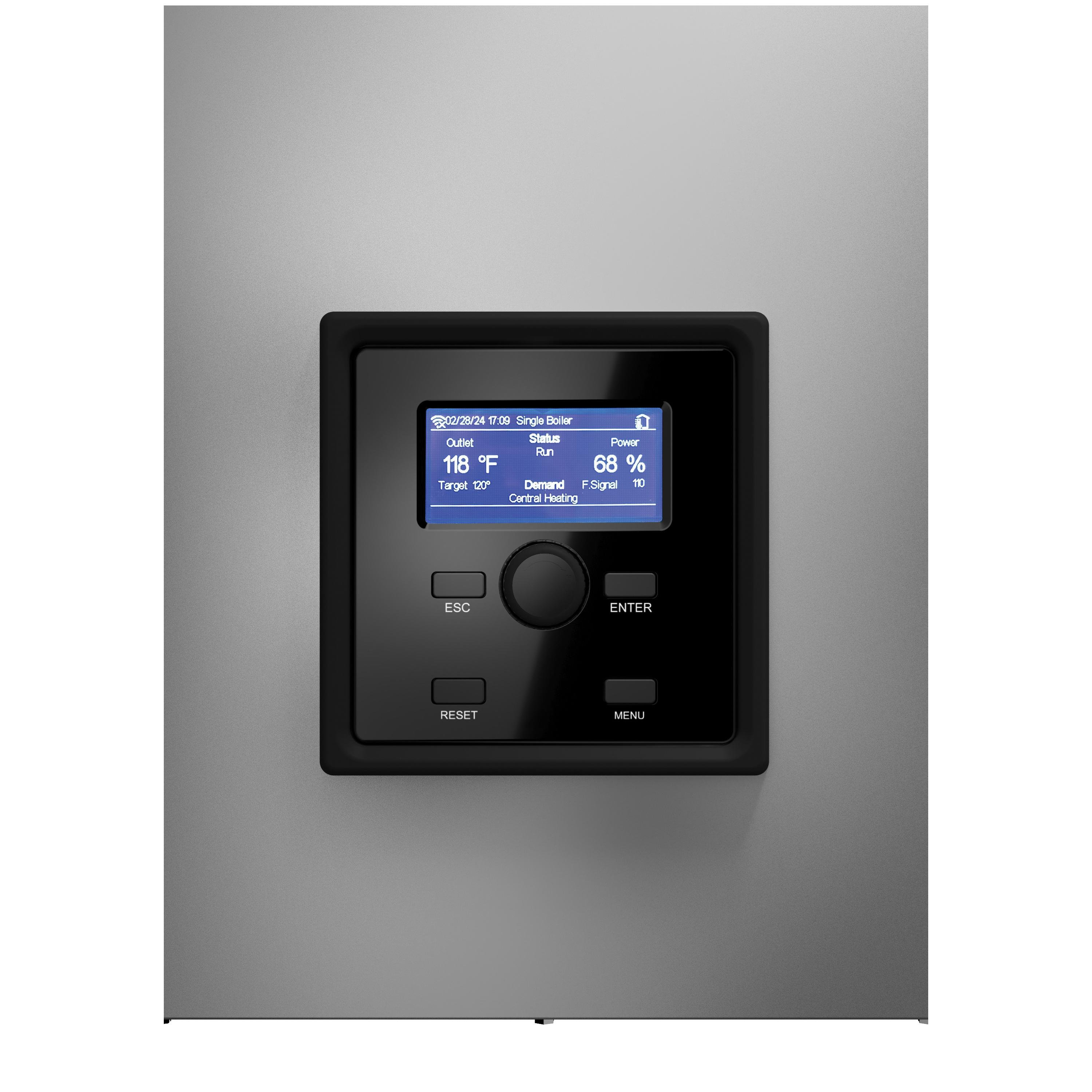

The FTVN Series II is a high efficiency, wall hung boiler using a durable, vertical down-fired stainless heat exchanger. With a new interface providing a smooth user experience, designed to help you achieve more with less effort, 10:1 modulation and 96% AFU, an integrated ECM pump and DHW diverter, quick connect components, WIFI connectivity for remote monitoring and alert notifications, the FTVN is an ideal solution for your 'peace of mind', home heating needs.
NTI Gas-Fired Condensing Boiler, FTVN II Series, 120 V, <12 A, 60 Hz, 1 ph Phase, 95 % AFUE Rating, 19900 to 199000 Btu/hr, 2.8 gal Capacity, 2 gpm Flow Rate, 50 psi, MNPT Connection, Natural Gas/Liquid Propane Fuel, Category IV, Sealed Combustion, Direct, Power Vent, Pre-Mixed Fuel Modulation/Stainless Steel Burner, Chimney/Breeching/Vent Size: 3 in, 184 mbh DOE Heating Capacity, 1 in Flue Outlet, Direct Electronic Spark/Flame Rectification Ignition, Wall Mounting, Steel, Finish: Painted, 33 to 104 deg F, 38-1/4 in H x 19-3/4 in W x 18-1/2 in D, Additional Information: Non-Combi Model, 3/4 in Gas Connection Size, 3/4 in Water Connection Size
| AFUE Rating | : | 95 % |
| Additional Information | : | Non-Combi Model, 3/4 in Gas Connection Size, 3/4 in Water Connection Size |
| Amperage Rating | : | <12 A |
| BTU Rating | : | 19900 to 199000 Btu/hr |
| Burner Type | : | Pre-Mixed Fuel Modulation/Stainless Steel |
| Capacity | : | 2.8 gal |
| Chimney/Breeching/Vent Size | : | 3 in |
| Connection Type | : | MNPT |
| DOE Heating Capacity | : | 184 mbh |
| Dimensions | : | 38-1/4 in H x 19-3/4 in W x 18-1/2 in D |
| Finish | : | Painted |
| Flow Rate | : | 2 gpm |
| Flue Outlet Size | : | 1 in |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas/Liquid Propane |
| Ignition Type | : | Direct Electronic Spark/Flame Rectification |
| Material | : | Steel |
| Mounting Type | : | Wall |
| Phase | : | 1 ph |
| Pressure Rating | : | 50 psi |
| Series | : | FTVN II Series |
| Temperature Rating | : | 33 to 104 deg F |
| Vent Type | : | Category IV, Sealed Combustion, Direct, Power |
| Voltage Rating | : | 120 V |
- Certified to ANSI Z21.13 / CSA 4.9 Gas-fired Boiler Standard
- SA-240 S43932 Chromium Stainless Steel Fire Tube Heat Exchanger
- ASME "H" stamped boiler, designed and constructed in
- compliance with the ASME Boiler and Pressure Vessel Code Section IV
- Maximum operating pressure 50 psi
- Wall mounted
- Zero clearance to combustibles
- Modulating burner, 10:1 turndown ratio
- Certified as Direct Vent (sealed combustion) or for use with indoor
- combustion air
- Sealed cabinet
- High energy ignition transformer
- Built-in water pressure bypass
- Low water pressure sensor

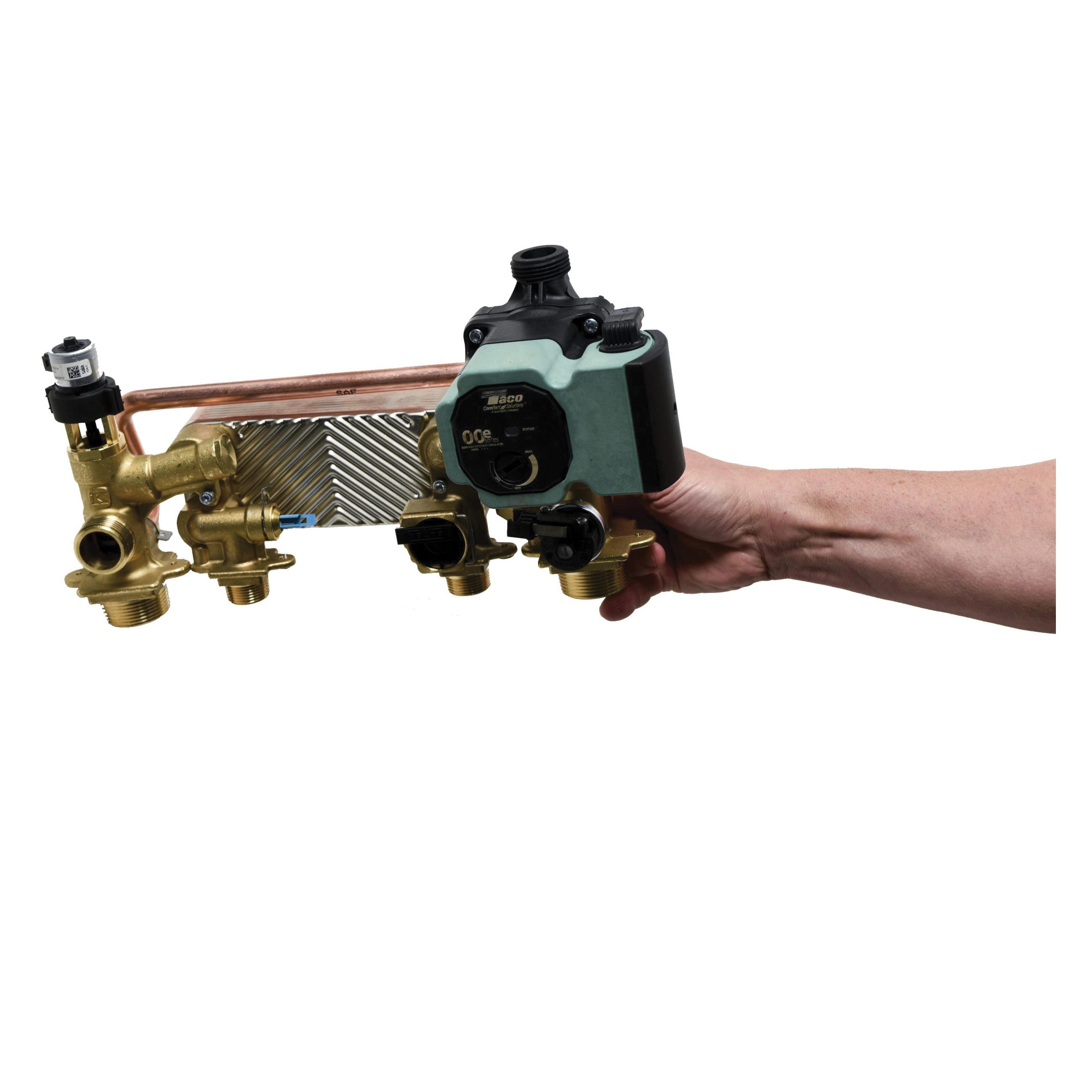

- Integrated ECM boiler circulator
- Integrated 3-way valve
- Integrated Condensate Trap
- Setup Wizard
- Two 120 VAC outputs for external circulators
- DHW zone input
