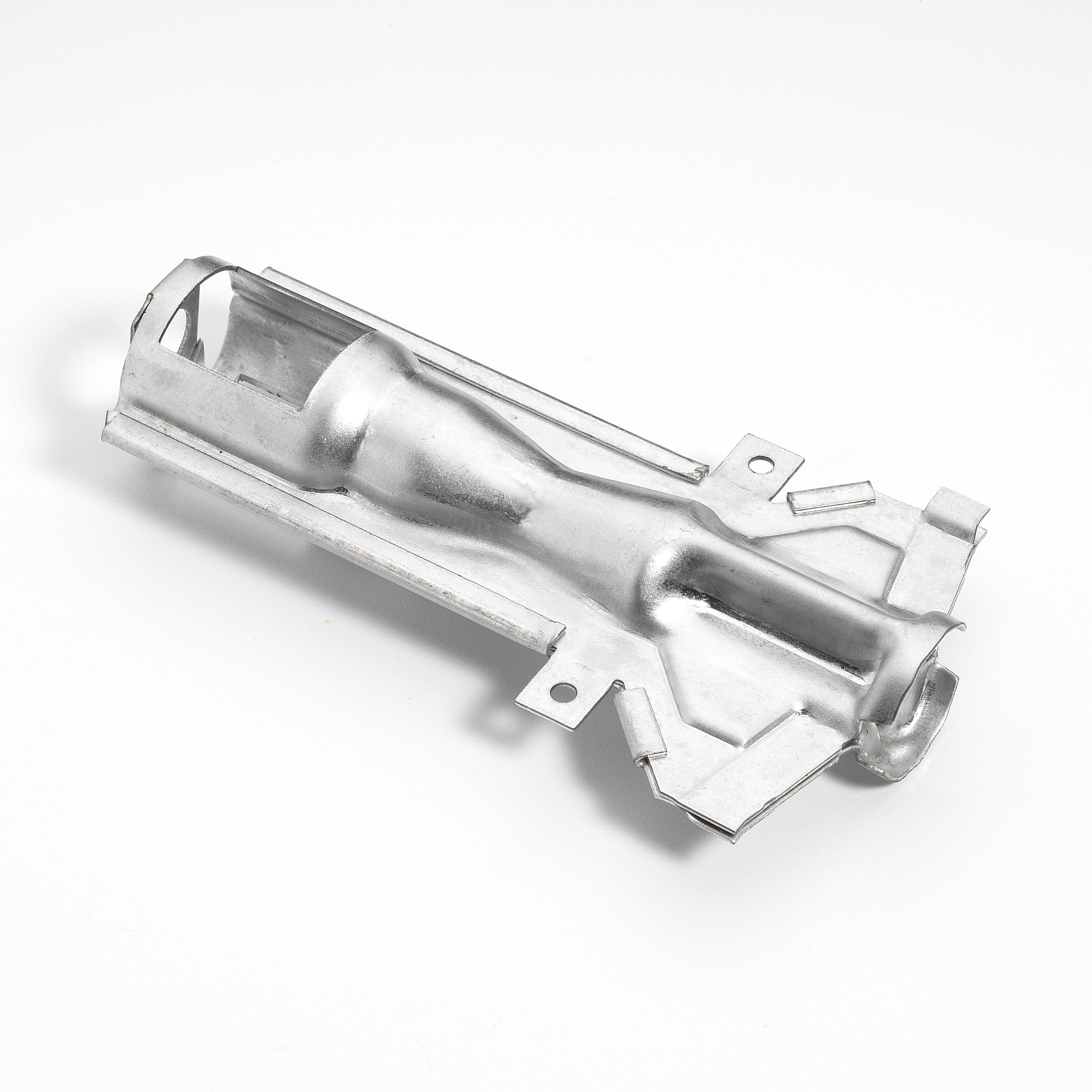

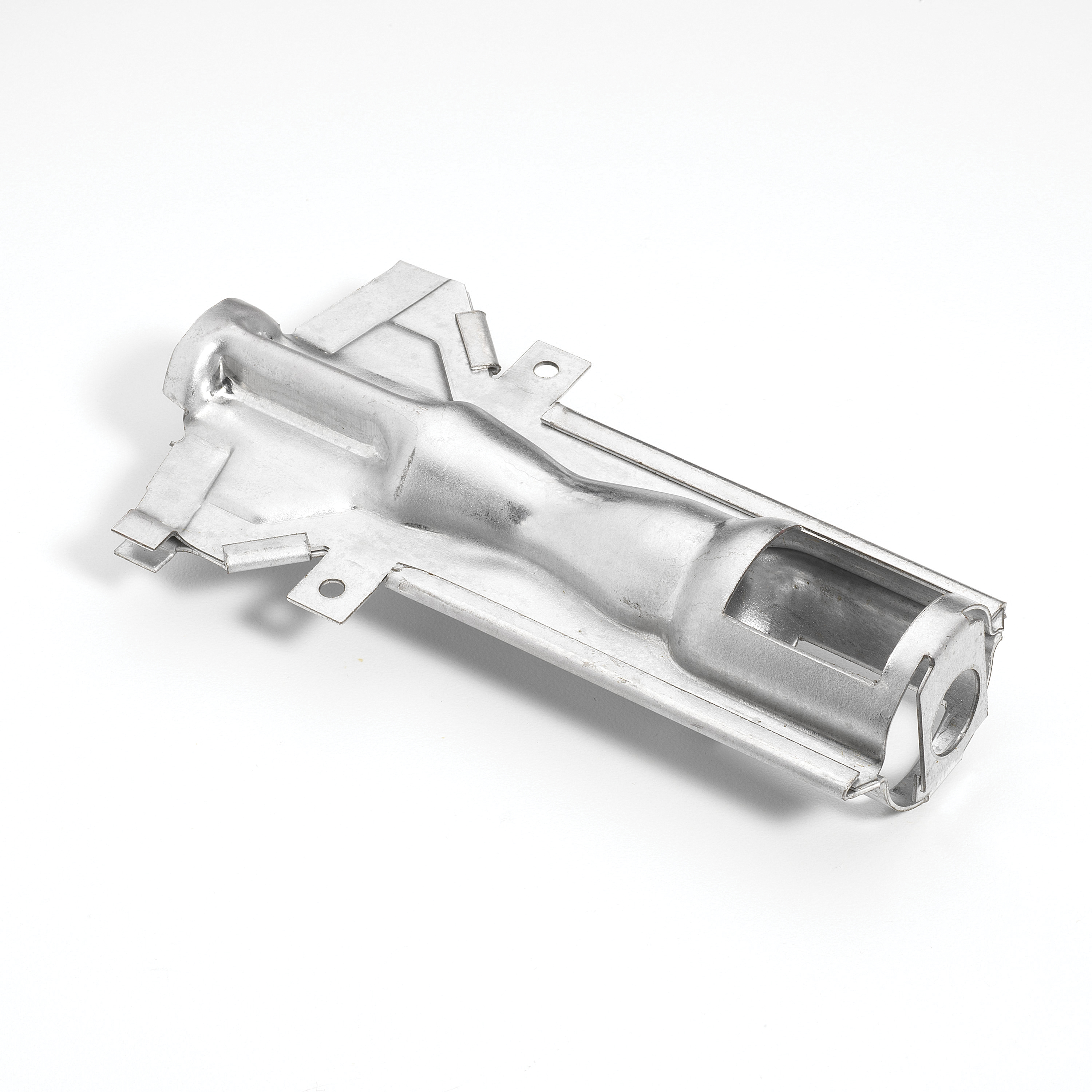

Robertshaw® Z93 Series Z935910000 Inshot Burner

The Robertshaw® inshot burners offer highly efficient, low cost alternatives for many cooking applications. The single port concept, combined with versatile mounting tab design and multiple in-line mounting capabilities, offers appliance manufacturers the flexibility needed to meet today's design requirements. All Robertshaw inshot burners are stamped from aluminized steel and incorporate our integral carryover flaps to provide dependable performance and long service life.

Robertshaw® Inshot Burner, Z93 Series, Specifications: Natural Gas, Liquid Propane, Mixed or Manufactured Gas, 1 in Diameter, 5-1/4 in Length, 0.9 in Width, 0.9 in Height, Additional Information: 2-3/4 in Center

• Rugged, compact design for versatility and long life
• Available in 4.5 in and 5.25 in overall length
• 0.500 in orifice cap
• Consistent ignition
• Clean burning blue flame
• High efficiency draft induced
• Mounting simplicity
• Light weight
• Low cost Applications
• Comfort Heating - Commercial and residential
• Cooking Appliance - Fryers and steamers
• Specialized - Space heatersSpecifications
• Used with natural, LP, mixed or manufactured gas
• 5.25 in burners have a 20,000 BTU - 25,000 BTU range
• Higher outputs dependent upon the application
• 4.5 in burners maximum output of 15,000 BTU
• Steel grade for both burners is AISI #C1008
