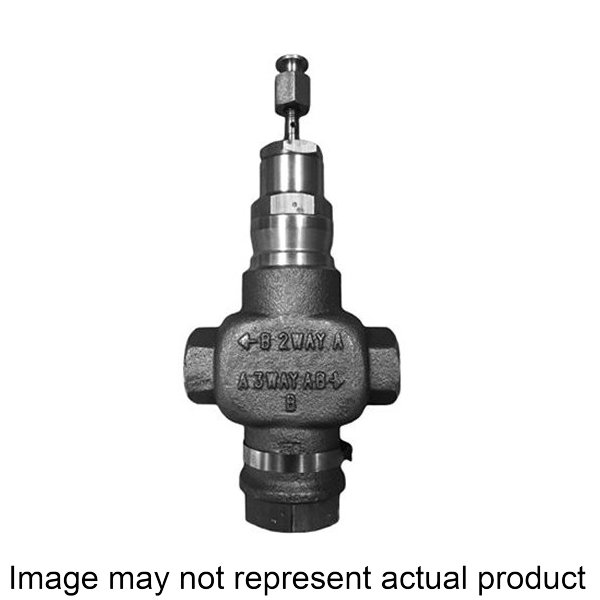

Honeywell Home V5011N2022/U Globe Valve, 1/2 in, NPT, 150 psi, Red Brass
- Manufacturer: Resideo Technologies Inc
- Brand Name: Honeywell Home
- Part#: HNWV5011N2022/U
- MPN: V5011N2022/U
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The V5011N is a two-way threaded globe valve that controls steam, water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valve is used in two-position and modulating control systems. The valve is not suitable for combustible gas service.
Honeywell Home Globe Valve, 1/2 in Nominal, Connection Type: NPT, Number of Ways/Position: 2-Way, 150 psi, 1.85 Cv Flow Coefficient (Cv), Stainless Steel Stem, PTFE Packing, Stainless Steel Seat, Red Brass, Pneumatic Actuator, Steam, Water Service, 45 to 250 deg F, 3-3/4 in L
| Actuator Type | : | Pneumatic |
| Connection Type | : | NPT |
| Dimensions | : | 3-3/4 in L |
| Flow Coefficient (Cv) | : | 1.85 Cv |
| Material | : | Red Brass |
| Nominal Size | : | 1/2 in |
| Number of Ways/Position | : | 2-Way |
| Packing Material | : | PTFE |
| Pressure Rating | : | 150 psi |
| Seat Material | : | Stainless Steel |
| Service Type | : | Steam, Water |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 45 to 250 deg F |
- Red brass body with NPT-threaded end connections
- Low seat leakage rate (=0.05 percent of Cv)
- 50:1 rangeability per VDI/VDE 2173
- Spring-loaded, self-adjusting packing
- Accurate positioning to ensure state of the art temperature control
- Directly coupled electric and pneumatic actuators for easy mounting
- Sizes range from 1/2 in. to 2 in
- Valve designs provide equal percentage flow characteristic for water and linear flow characteristic for steam
- Stainless steel stem and metal-to-metal seats
- Repack and rebuild kits for field servicing
Specification Sheet
