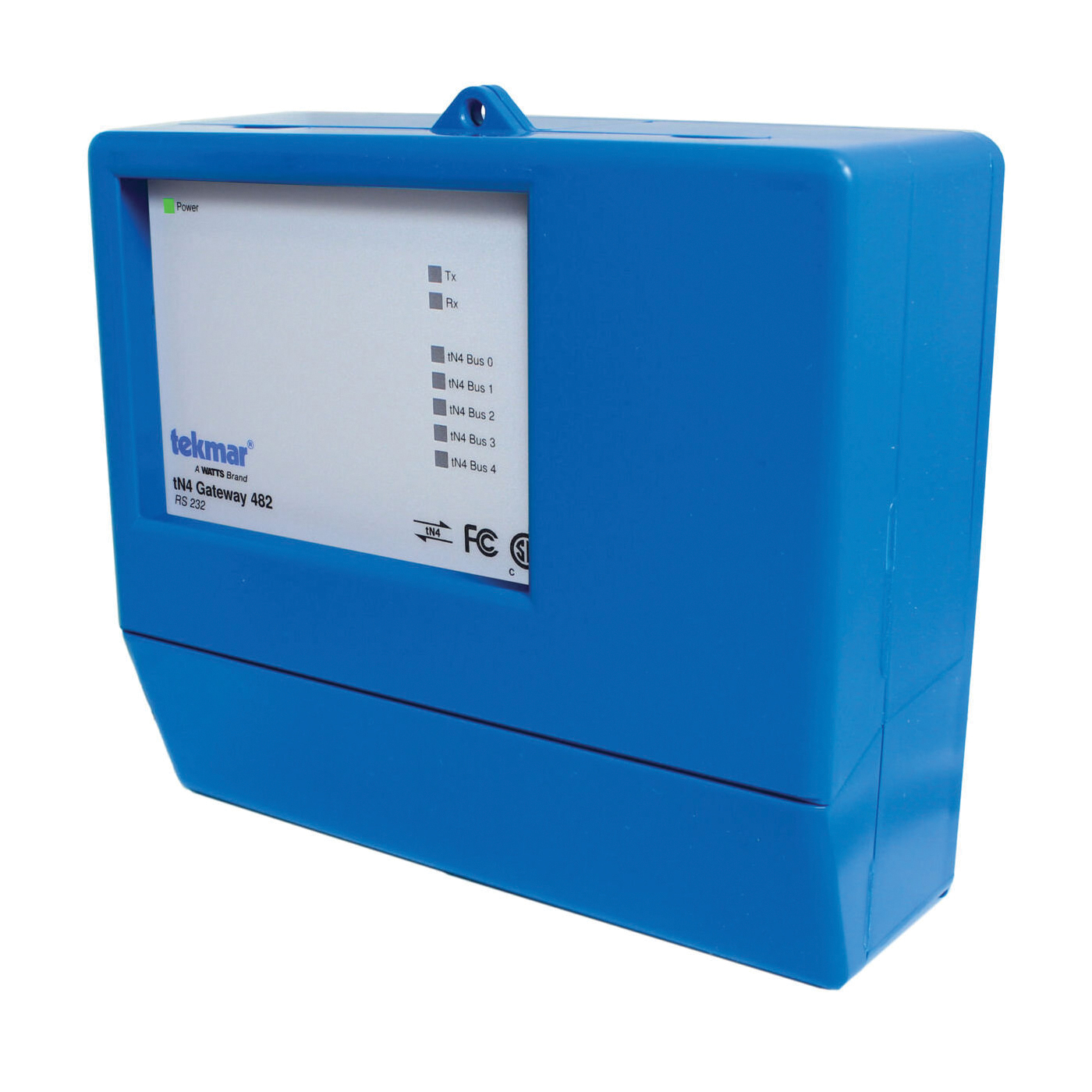

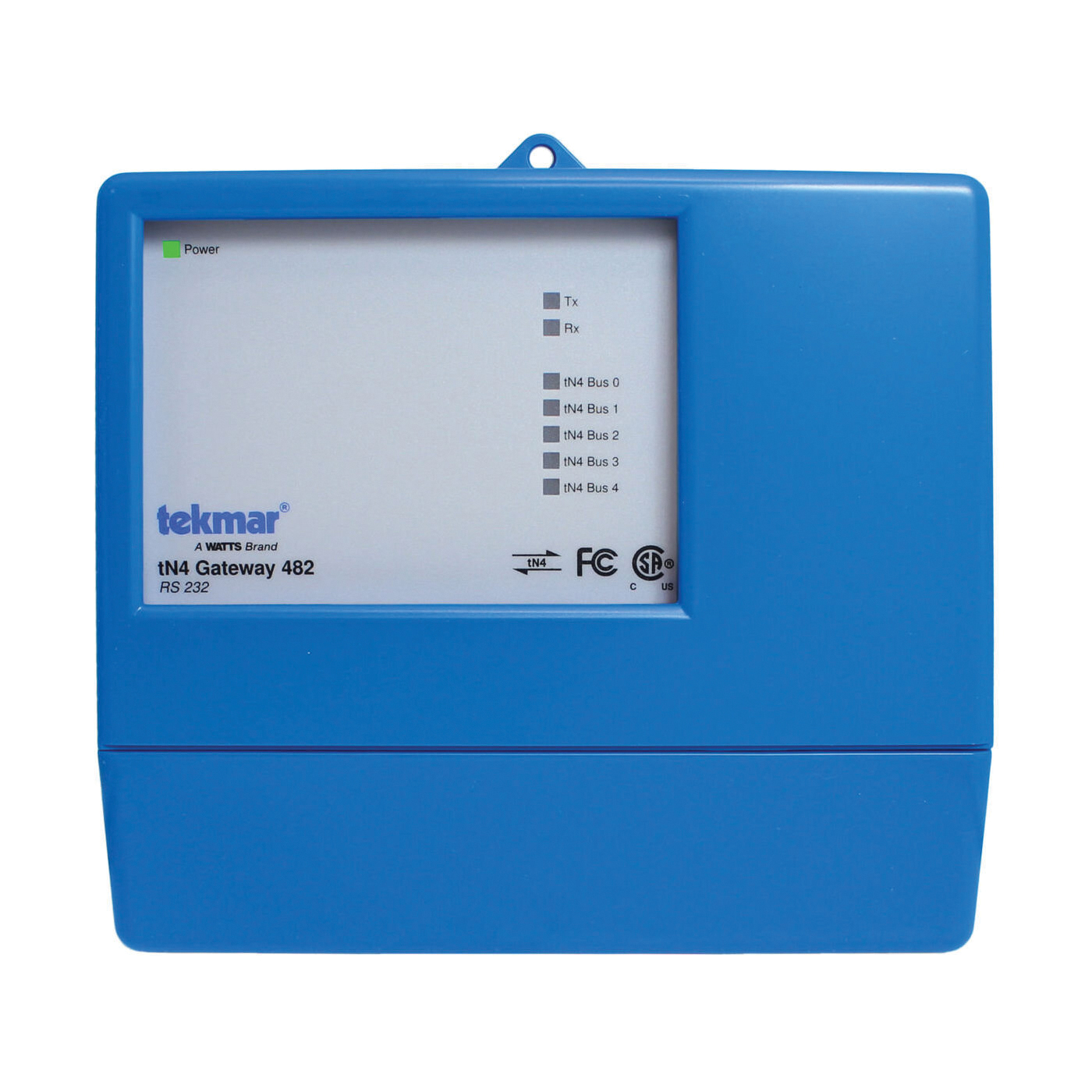

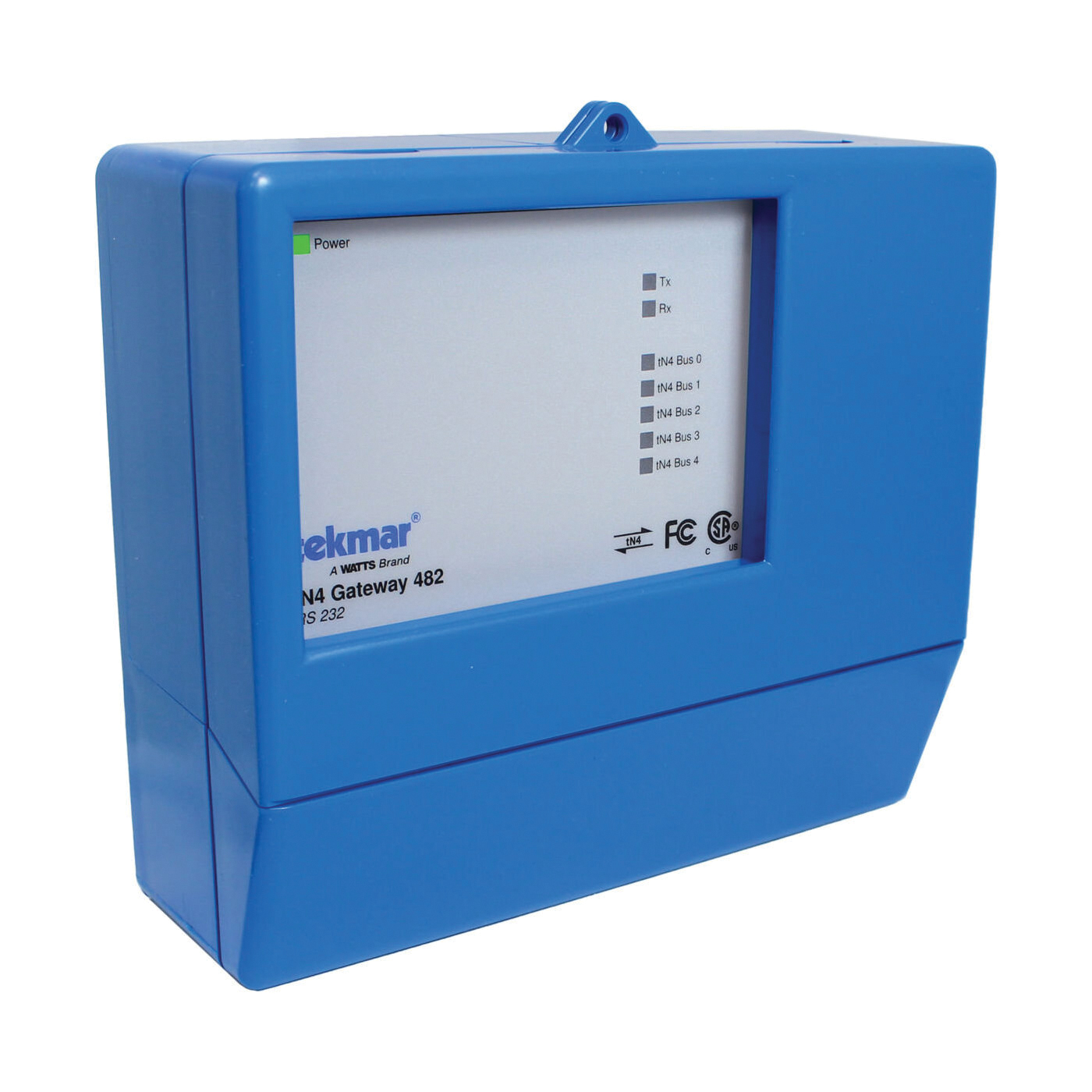

Tekmar® tekmarNet® 4 482 Gateway, 115 V, 45 mA, 32 to 122 deg F, PVC
- Manufacturer: Watts Water Technologies
- Brand Name: Tekmar®
- Part#: TEK482
- MPN: 482
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The tekmarNet® 4 Gateway 482 provides RS 232 serial communication between tekmarNet ® thermostats and third party home automation systems. The third party automation system is able to monitor and adjust any of the thermostat's heating, cooling, and ventilation fan settings. Through the use of third party device drivers written for this product, tekmarNet® systems are fully integrated into home automation systems.
Tekmar® Gateway, 45 mA, 115 V, 60 Hz, PVC, 32 to 122 deg F, 6-5/8 in H x 7-9/16 in W x 2-13/16 in D, Additional Information: NEMA 1 Rating, Microprocessor PID Control Type
| Additional Information | : | NEMA 1 Rating, Microprocessor PID Control Type |
| Amperage Rating | : | 45 mA |
| Dimensions | : | 6-5/8 in H x 7-9/16 in W x 2-13/16 in D |
| Frequency Rating | : | 60 Hz |
| Material | : | PVC |
| Temperature Rating | : | 32 to 122 deg F |
| Voltage Rating | : | 115 V |
- tekmarNet® 4 and tekmarNet ® 2 compatible
- CSA C US approved for US and Canada
- Drivers available for leading home automation systems
- Indoor use only, 32 to 122degF (0 to 50degC)
