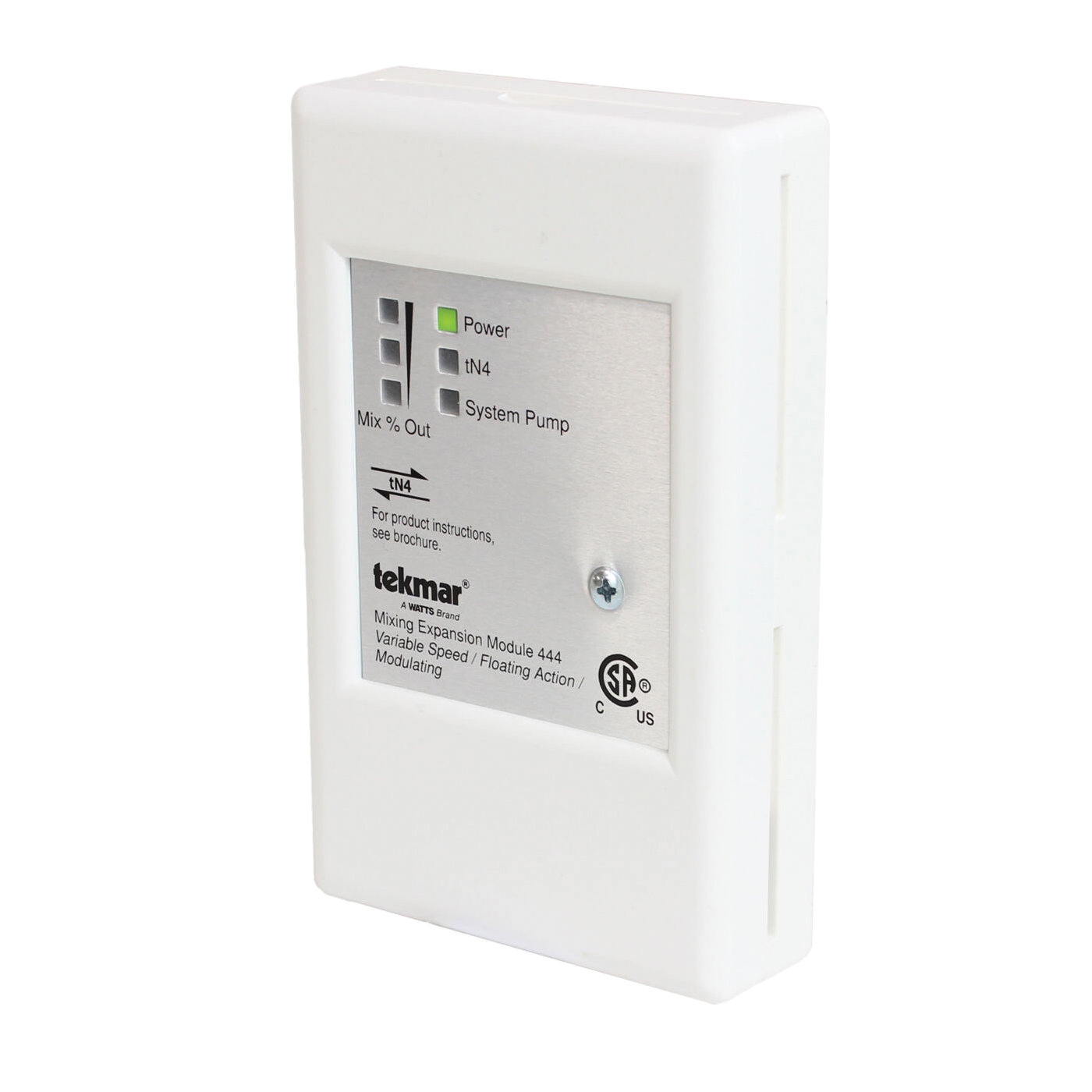

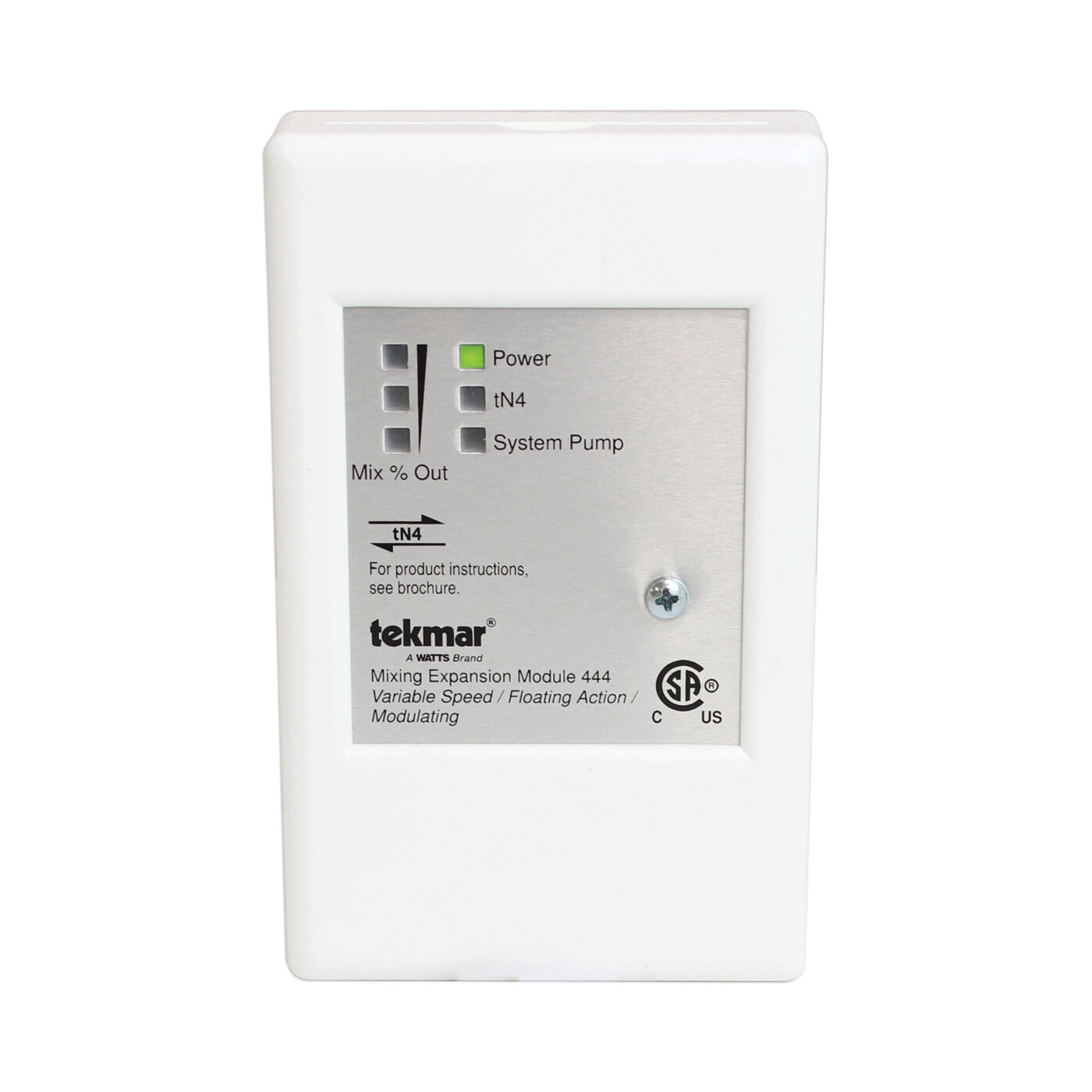

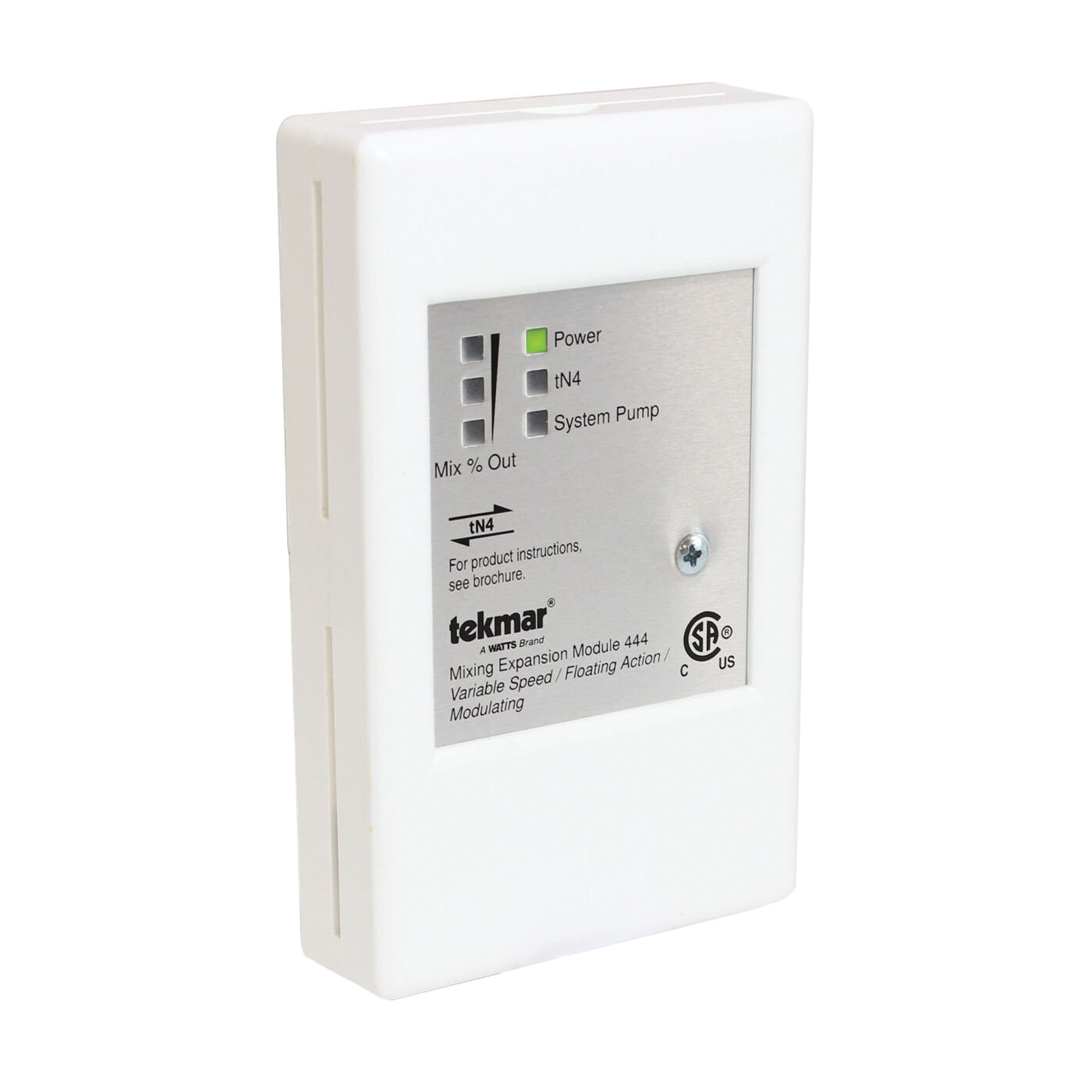

Tekmar® 444 Mixing Expansion Module, NTC Thermistor Sensor, 120 V, PVC, White
- Manufacturer: Watts Water Technologies
- Brand Name: Tekmar®
- Part#: TEK444
- MPN: 444
- UPC: 779655044409
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Mixing Expansion Module 444 is designed to operate a mixing device within a hydronic heating system as part of a tekmarNet® control system. It is capable of controlling a mixed system pump and six optional outputs for mixing: a variable speed injection pump, a floating action actuator, or an analog 0-10 V (dc), 2-10 V (dc), 0-20 mA, or 4-20 mA signal.
Tekmar® Mixing Expansion Module, 120 V, 24 V, NTC Thermistor Sensor, PVC, White, 4-3/4 in H x 2-7/8 in W x 1-7/8 in D
| Color | : | White |
| Dimensions | : | 4-3/4 in H x 2-7/8 in W x 1-7/8 in D |
| Material | : | PVC |
| Power Supply | : | 24 V |
| Sensor Type | : | NTC Thermistor |
| Voltage Rating | : | 120 V |
- Requires a tekmarNet® 4 system control
- Powered variable speed injection pump
- Powered 24 V (ac) floating action output
- Analog 0-20 mA or 4-20 mA output
- Analog 0-10 V (dc) or 2-10 V (dc) output
- Powered 120 V (ac) system pump
- Powered 24 V (ac) system pump output
- CSA C US certified for use in USA and Canada
