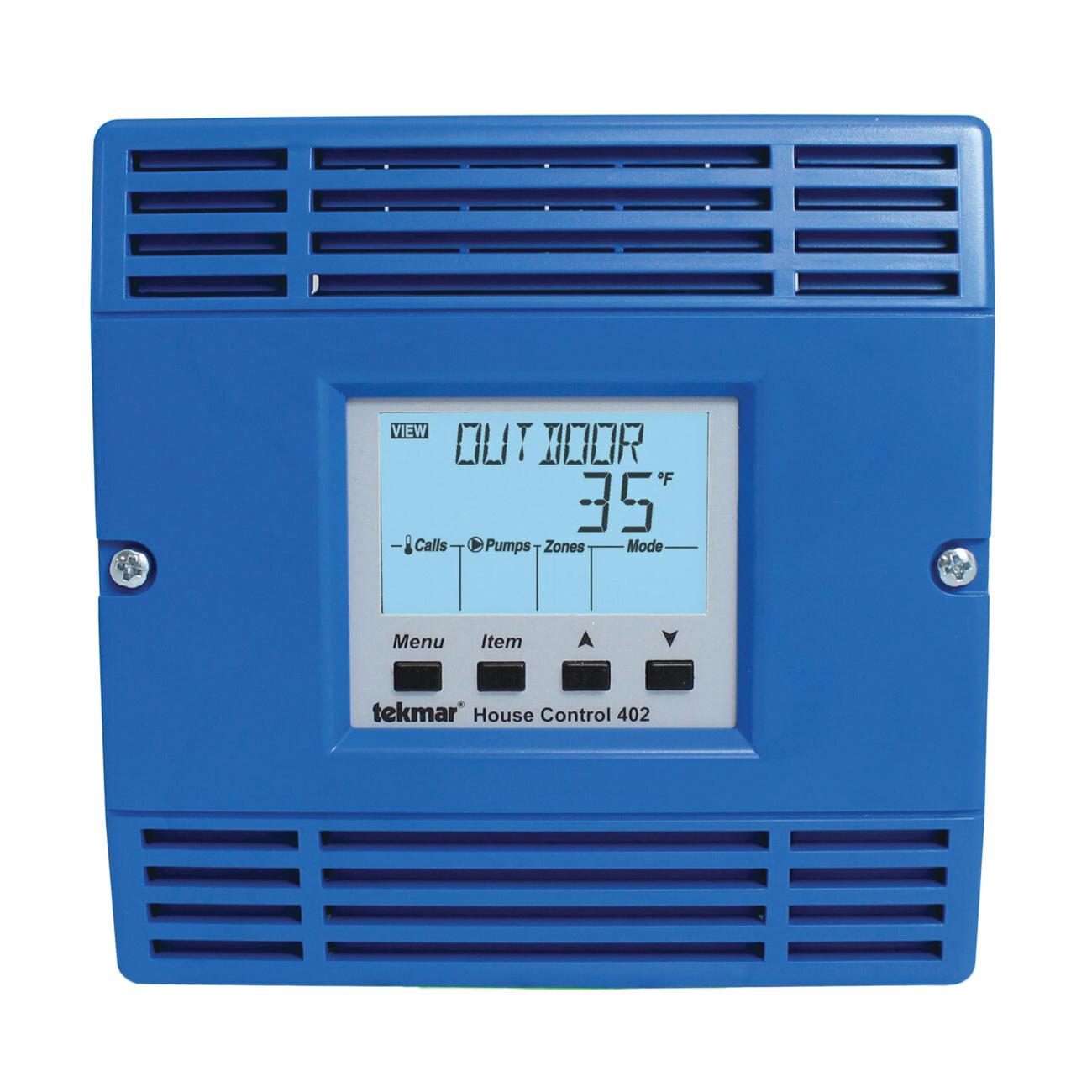

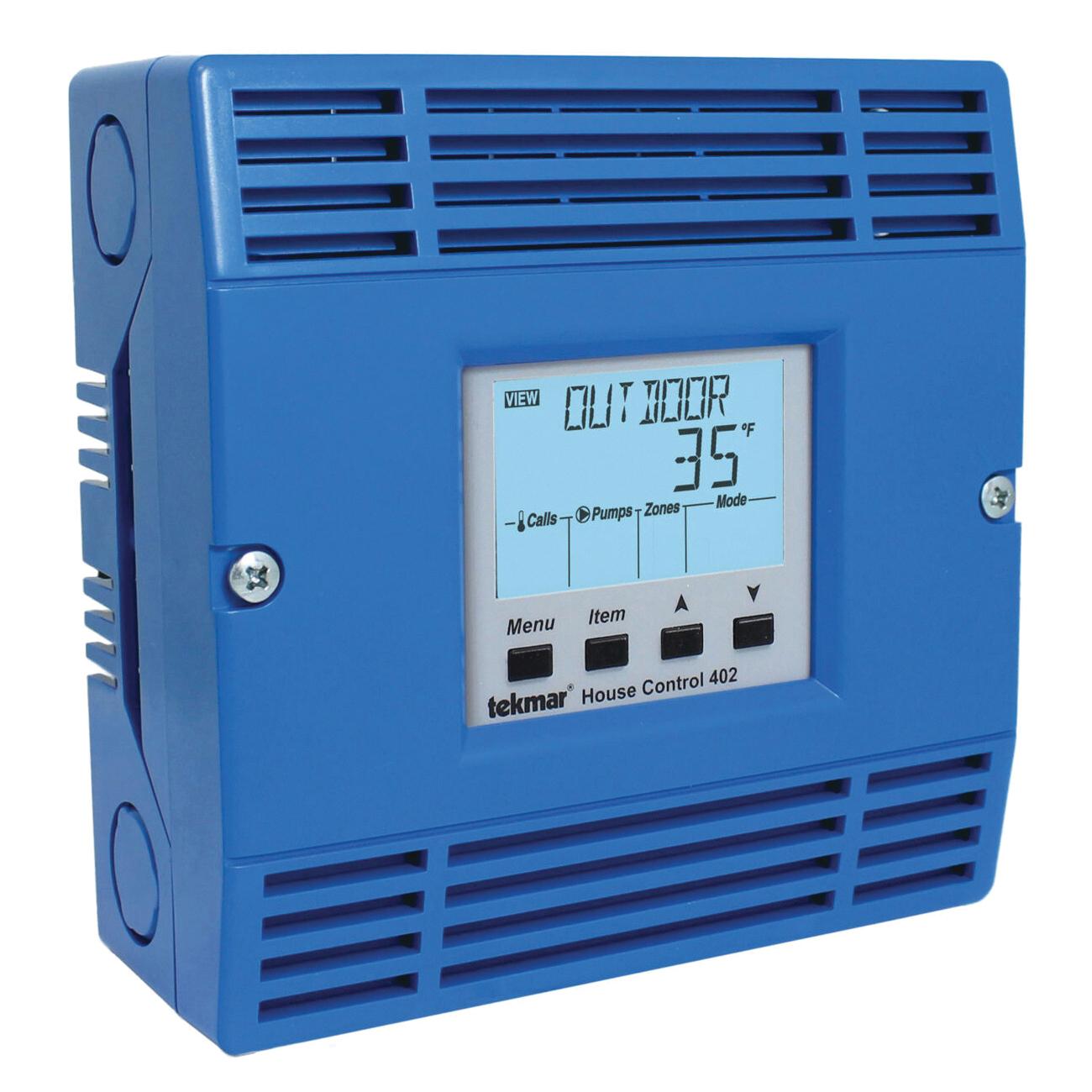

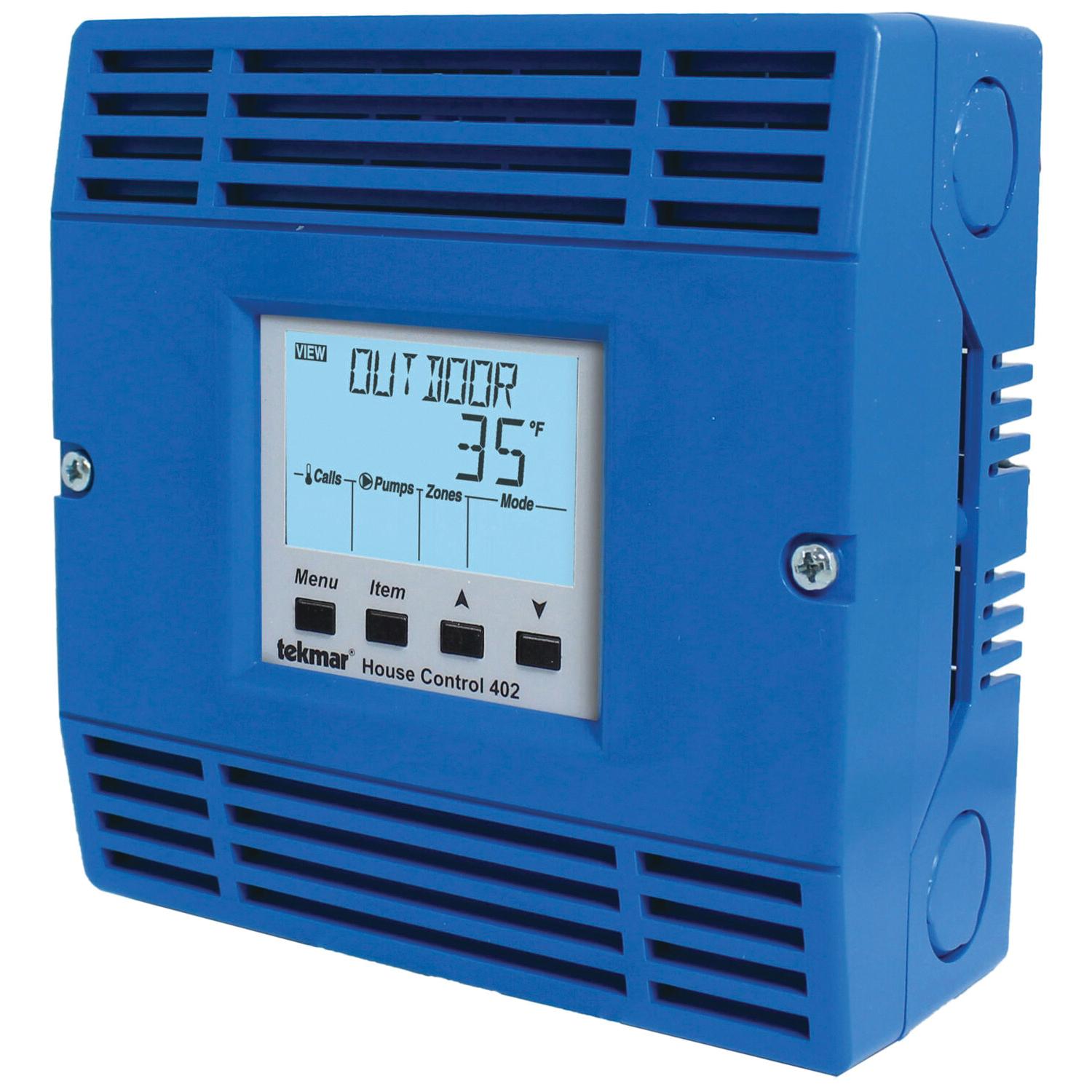

Tekmar® 402 House Control, NTC Thermistor Sensor, 24 to 115 VAC, ABS/Polycarbonate, Blue

The tekmarNet® two house control 402 is designed to operate all the mechanical equipment in a residential hydronic heating system, coordinating their operation through network communication. It can be used in applications ranging from a single zone of baseboard with an on/off boiler to multiple fan coils, mixed radiant floor heating zones and a modulating/condensing boiler. This control regulates up to two heating water temperatures through outdoor temperature reset and indoor temperature feedback. It is capable of controlling a single on/off, two-stage or modulating boiler, a mixing device, domestic hot water, set point loads, four on-board zone valves and can expand up to 24 zones in total for each space heating water temperature.

Tekmar® House Control, 5 to 12 A, 24 to 115 VAC, 24 VAC, NTC Thermistor Sensor, NEMA 1 Enclosure, ABS/Polycarbonate, Blue, 5-1/2 in H x 5-1/2 in W x 2-1/4 in D

• Only requires two-wire per zone, four 24 VAC powered zone outputs
• For use with tekmarNet® 2 thermostats only, tN4 expansion terminals
• Outdoor temperature reset, indoor temperature feedback
• Warm weather shut down, zone synchronization
• DHW post purge, DHW control
• DHW priority (optional), setpoint operation
• Expandable up to 48 zones, single on/off, two-stage or modulating boiler control
• Variable speed, floating action or proportional mixing control, automatic boiler differential
• Exercising, boiler protection

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Tekmar_402_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Tekmar_402_Specification_Sheet.pdf
