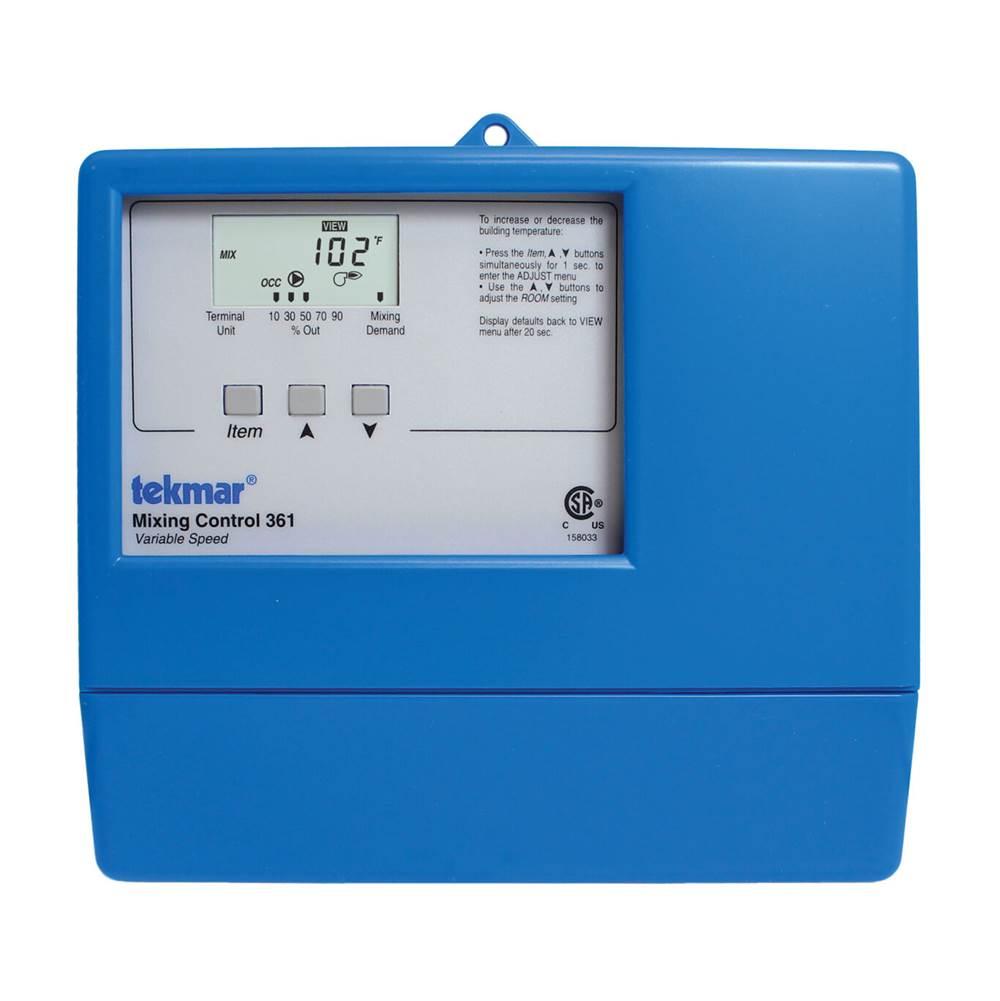

Tekmar® 361 Variable Speed Mixing Control, NTC Thermistor Sensor, 120 VAC, Plastic, Blue, Blue

The mixing control 361 is designed to operate a mixing pump using outdoor temperature reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for boiler return protection with full reset. This control regulates a single heating water temperature through mixing outdoor reset. It provides mixing by speeding up or slowing down a single permanent capacitor (standard wet rotor) circulator and provides control of the mix system pump.

Tekmar® Variable Speed Mixing Control, 24 A, 120 VAC, 120 VAC, 50/60 Hz, NTC Thermistor Sensor, NEMA 1 Enclosure, Plastic, Finish: Blue, Blue, 0 to 40 deg C, 6-5/8 in H x 7-9/16 in W x 2-13/16 in D

• Automatic boiler differential, variable speed pump control
• Test sequence to ensure proper component operation
• Powered mixing system pump output, quick setup for easy installation and programming of control
• Warm weather shut down, boiler load control
• User comfort adjustment to increase or decrease building space temperature
• Advanced settings to fine tune building requirements
• Setback input for energy savings

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/TEK-361_install.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/TEK-361_spec.pdf
