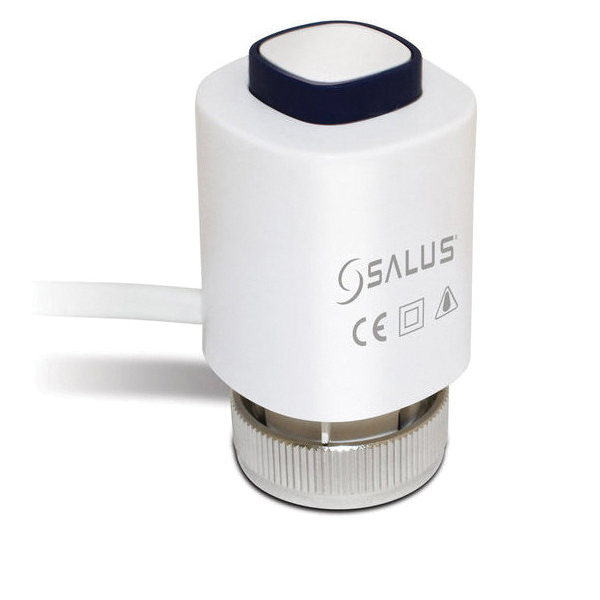

SALUS THERMOSTATS A30N024 Thermal Actuator, 24 VAC, 14 to 158 deg F, 4 mm Stroke
- Manufacturer: COMPUTIME LIMITED
- Brand Name: SALUS®
- Part#: SLTA30N024
- MPN: A30N024
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The SALUS A30 line of thermal actuators are the perfect solution for accurately controlling radiant heating and cooling systems. The actuators offer low power consumption, high-quality wax elements, a 5 year warranty and a range of configurations to ensure optimum performance for any job.
SALUS® Thermal Actuator, 200 mA, 90 mA, 24 VAC, 50/60 Hz, 2 W, Contact Configuration: NO, 100 N Torque, 4 mm Stroke, 14 to 158 deg F, 1.5 in L x 2.7 in W x 1.5 in H, Additional Information: 5 A Dry Contact End Switch, M30 x 1.5 Connection, High-Quality Wax Element Actuator
| Additional Information | : | 5 A Dry Contact End Switch, M30 x 1.5 Connection, High-Quality Wax Element Actuator |
| Amperage Rating | : | 200 mA, 90 mA |
| Contact Configuration | : | NO |
| Dimensions | : | 1.5 in L x 2.7 in W x 1.5 in H |
| Frequency Rating | : | 50/60 Hz |
| Power Rating | : | 2 W |
| Stroke | : | 4 mm |
| Temperature Rating | : | 14 to 158 deg F |
| Torque Rating | : | 100 N |
| Voltage Rating | : | 24 VAC |
- Easy to install
- Adaptive stroke 4mm max
- Low power consumption (2W)
- 100N spring force
- High quality wax element
- Easy closing and opening display
- 5 year warranty
Instruction/Installation Manual
