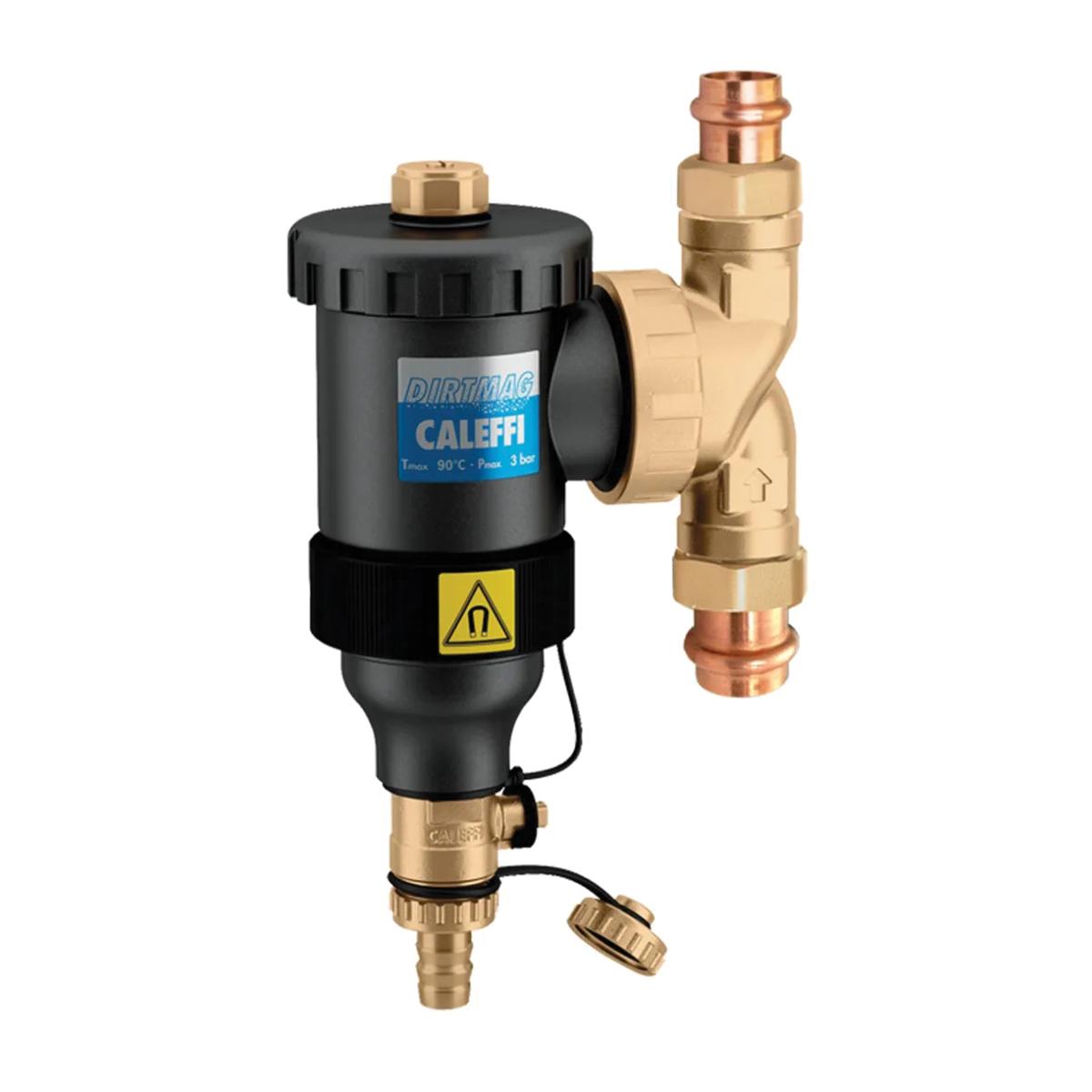

Caleffi DIRTMAG® NA5453 Series NA545396 Dirt Separator With Neodymium Rare Earth Magnet, 1 in, Sweat Union

Dirt separator with magnet brass mounting housing. Ferrous impurities separation efficiency - 100%. Drain valve with hose connection. Top dosing point port. Dosing capacity - 12 fl-oz. Manual screw air vent.

Caleffi DIRTMAG® Dirt Separator With Neodymium Rare Earth Magnet, NA5453 Series, 1 in Nominal, Sweat Union Connection, 45 psi, 32 to 195 deg F, 10 gpm Flow Rate, 12 Cv Flow Coefficient (Cv), 5 um Particle Separation Capacity, Brass/Technopolymer, Additional Information: 12 fl-oz Dosing Capacity

• The DIRTMAG® removes both ferrous and non-ferrous impurities continuously in a sealed hydronic heating and cooling system
• A removable magnetic ring and large drain valve make the DIRTMAG® quick and easy-to-flush collected dirt and ferrous impurities, including magnetite
• A large low velocity zone dirt collection chamber reduces the frequency of cleaning, which can also be done while the system is operating
• A powerful removable external magnetic ring attracts ferrous impurities with 2-1/2X the removal performance of a standard dirt separator
• DIRTMAG® will separate dirt particles down to 5 um and up to 100% of ferrous impurities, including magnetite, during multiple passes of system fluid
• This multi-function device, with isolating valves, can also be used as a dosing point to inject chemical additives into the hydronic circuit

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Caleffi_NA545396_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Caleffi_NA545396_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Caleffi_NA545396_Specification_Sheet.pdf
• Video Link https://youtu.be/X22askTCsOw
