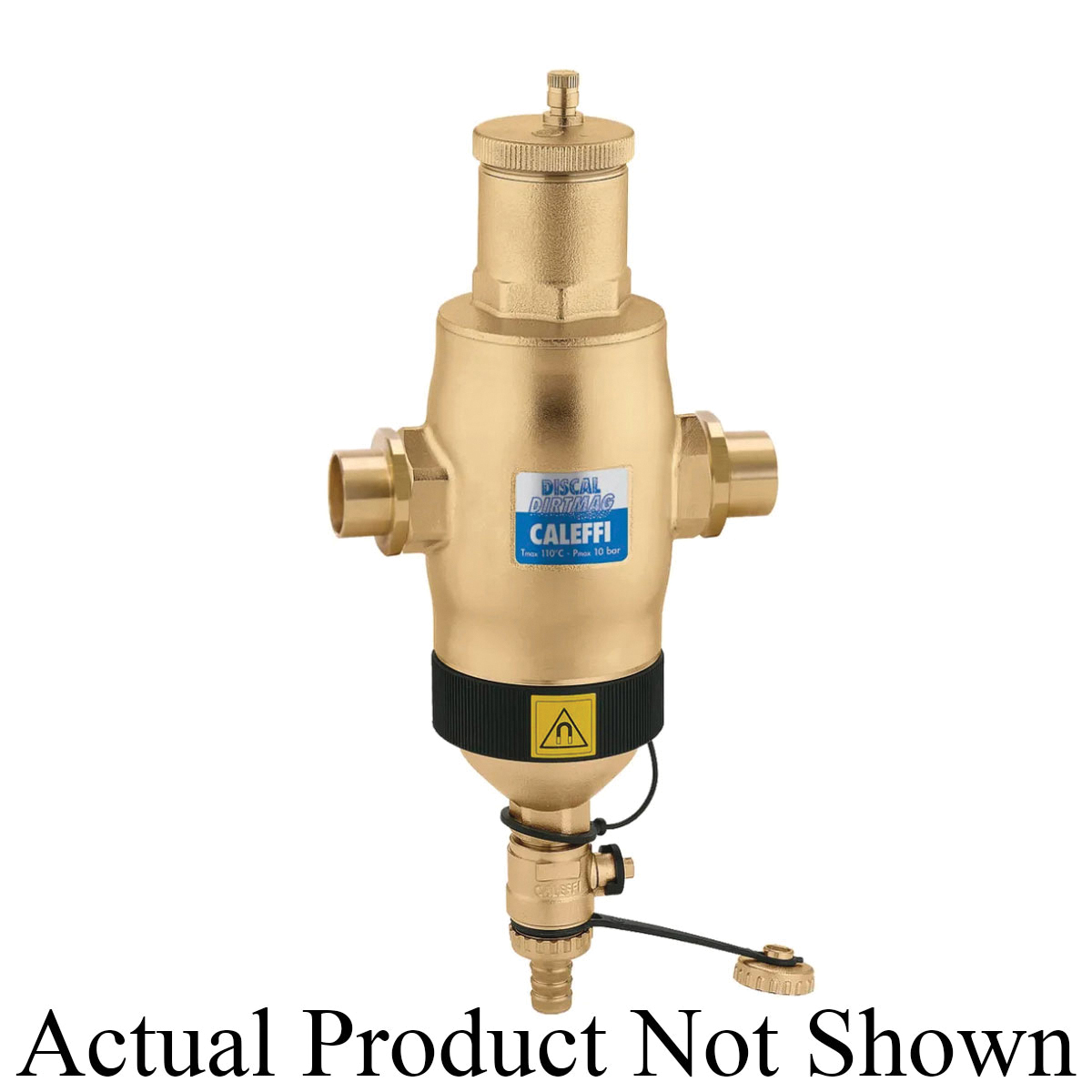

Caleffi DISCALDIRTMAG™ 5461 Series 546116A Air and Dirt Separator, 1 in, MNPT

Air & Dirt separator with magnet Stainless steel float guide pin and linkage Glass reinforced nylon internal element Complete with: External clip-on magnet Drain valve with cap connection: 1" MNPT. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 250 °F. Material: brass.

Caleffi DISCALDIRTMAG™ Air and Dirt Separator, 5461 Series, 1 in Nominal, MNPT Connection, 150 psi, 32 to 250 deg F, Glycol Solution, Water Suitable Media, 50 % Maximum Percentage of Glycol, 9 gpm Flow Rate, 32 Cv Flow Coefficient (Cv), 4 fps Velocity Rating, 5 um Particle Separation Capacity, Brass/EPDM/Glass Reinforced Nylon/Polypropylene/Stainless Steel, 12-3/4 in H x 7-3/8 in W

• DISCAL DIRTMAG™ has 3-in-1 high performance functionality to continuously remove all air and debris, including ferrous and non-ferrous impurities in a sealed hydronic heating and cooling system
• Microparticle dirt separation: the internal element separates and collects all the particles in the dirt collection chamber
• Collected particles are discharged with the drain valve, while the system is operating
• Microbubble air separation: the widening of the cross section decreases the fl ow velocity and the internal element facilitates the release of mircobubbles
• Magnetic separation of ferrous impuritites: the powerful, external rare earth magnet captures ferrous impurities
• Removing the magnetic ring allows for discharging through drain valve even with system operating
