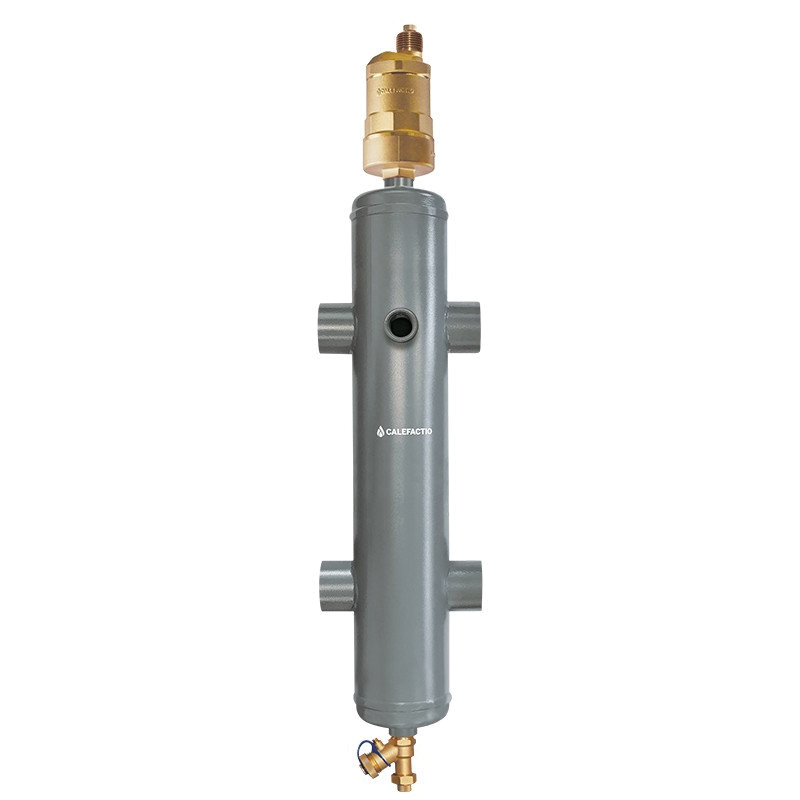

Calefactio CB100-4 4-in-1 Hydraulic Separator, 1 in, FNPT, Steel
- Manufacturer: Calefactio
- Brand Name: Calefactio
- Part#: CLFCB100-4
- MPN: CB100-4
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
In addition to isolating the primary circuit from the secondary circuit, the new 4 in 1 hydraulic separators from Calefactio separates water, air, dirt and ferrous debris. The coalescence process produced by the media allows air and micro-bubbles to fuse and then be evacuated through the automatic air vent.
Calefactio 4-in-1 Hydraulic Separator, 1 in Nominal, Connection Type: FNPT, 150 psi, 212 deg F, Water, Glycol Solutions Suitable Media, 50 % Maximum Percentage of Glycol, 11 gpm Flow Rate, Steel, Painted, 26.7 in H x 5.4 in W
| Connection Type | : | FNPT |
| Dimensions | : | 26.7 in H x 5.4 in W |
| Finish | : | Painted |
| Flow Rate | : | 11 gpm |
| Material | : | Steel |
| Maximum Percentage of Glycol | : | 50 % |
| Nominal Size | : | 1 in |
| Pressure Rating | : | 150 psi |
| Suitable Media | : | Water, Glycol Solutions |
| Temperature Rating | : | 212 deg F |
- Prevents variations in flow rates and temperature
- Separate dirt
- Separate air
- Capture ferrous and non-ferrous debris
- Improves system efficiency
- Better energy performance
- Increases component life
- Reduces installation and operation costs
- Easy to install and maintain
