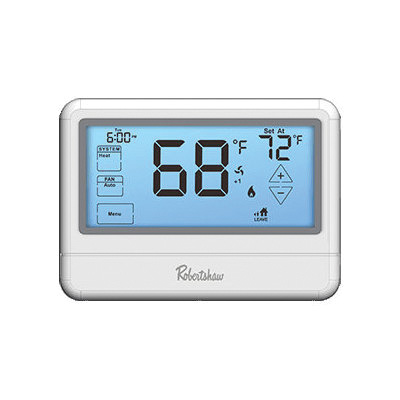

Robertshaw® RS9423T Thermostat, 24 V, +/-1 deg F Accuracy, Wall, Junction Box Mounting
- Manufacturer: Robertshaw
- Brand Name: Robertshaw®
- Part#: INVRS9423T
- MPN: RS9423T
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
With the Pro-Series Wall Thermostats, contractors can offer owners easy, yet powerful and reliable control.
Robertshaw® Thermostat, 24 V, +/-1 deg F Accuracy, 50/60 Hz, 2 Heat/2 Cool or 4 Heat/2 Cool Stages, Wall, Junction Box Mounting, 7-Day Program, 5-1-1 or Non-Programmable Programmability, 32 to 99 deg F, 5.3 in H x 3.8 in W x 1 in D
| Accuracy | : | +/-1 deg F |
| Dimensions | : | 5.3 in H x 3.8 in W x 1 in D |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Wall, Junction Box |
| Programmability | : | 7-Day Program, 5-1-1 or Non-Programmable |
| Stages | : | 2 Heat/2 Cool or 4 Heat/2 Cool |
| Temperature Rating | : | 32 to 99 deg F |
| Voltage Rating | : | 24 V |
- Multi-stage temperature control in a simple, modern design
- Dual fuel compatible
- Wireless balance point for heat pumps
- Compatible with RS9055OUT Remote Sensor
- 7-day, 5-1-1 or non-programmable
- Large 9.5-square-inch blue backlit touchscreen display
- Auto changeover
- Adjustable temperature differential (swing)
- Heat pump-compatible: auxiliary/emergency heat
- Filter change reminder (selectable on/off)
- Adjustable heat and cool setpoint limits
- IAQ Mode (selectable number of cycles and duration)
- Simplify installation with our push-in terminals
- Secure your device with the Keypad Lock feature
Instruction/Installation Manual
