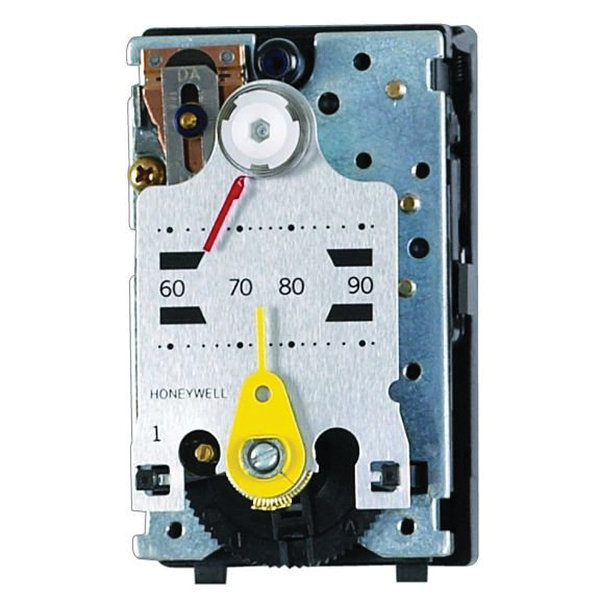

resideo TP97 Series TP970A2242 Pneumatic Thermostat, Direct Action, 60 to 90 deg F Setpoint, 150 deg F
- Manufacturer: Resideo Technologies Inc
- Brand Name: resideo
- Part#: HNWTP970A2242
- MPN: TP970A2242
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
TP97 pneumatic thermostats are used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems. They incorporates a relay amplifier giving sensitive control and facilitating averaging control, which requires extra relays when bleed-type thermostats are used. The range comprises factory calibrated bimetal element proportional instruments with a set-point indicator. The cover is ordered separately, and restrictors are not required.
resideo Pneumatic Thermostat, TP97 Series, Model: TP970, Direct Action, 60 to 90 deg F Setpoint, 25 psi Air Pressure, 150 deg F
| Action Type | : | Direct |
| Air Pressure | : | 25 psi |
| Model | : | TP970 |
| Series | : | TP97 Series |
| Setpoint | : | 60 to 90 deg F |
| Size | : | 2 Inch Width x 1-5/8 Inch Depth x 3-1/4 Inch Height |
| Specifications | : | Temperature Rating: 100 Deg F |
| Temperature Rating | : | 150 deg F |
| Type | : | Single Set Point, Direct Acting |
- High capacity
- Proportional control
- Single temperature
Instruction/Installation Manual
