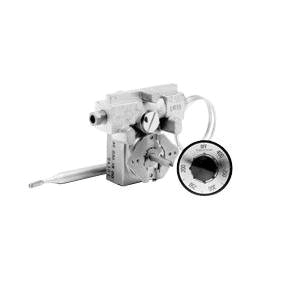

Robertshaw® 4200 Series 4290-033 Gas Thermostat
- Manufacturer: Robertshaw
- Brand Name: Robertshaw®
- Part#: INV41-802N
- MPN: 4290-033
- UPC: 662013284725
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Robertshaw® 4290 Series Gas Thermostat is a snap-acting hydraulic thermostat and used to provide temperature control by interrupting gas flow to the burner. The 4290 Series gas thermostat is available for a wide variety of applications including small ovens, griddles, brooders, warming cabinets, and fryers.
Robertshaw® Gas Thermostat, 4200 Series, 3/8 in Dia x 5-3/8 in L Nickel Bulb Sensing Element, 200 to 400 deg F Temperature Settings, 200 to 400 deg F, 30 in Capillary Length, Connection Type: Tube, 3.5 in L x 3.1 in W x 2.5 in H, Additional Information: 30000 Btu Capacity, 1/4 x 1/4 in Connection Size
| Additional Information | : | 30000 Btu Capacity, 1/4 x 1/4 in Connection Size |
| Capillary Length | : | 30 in |
| Connection Type | : | Tube |
| Dimensions | : | 3.5 in L x 3.1 in W x 2.5 in H |
| Sensing Element | : | 3/8 in Dia x 5-3/8 in L Nickel Bulb |
| Series | : | 4200 Series |
| Temperature Rating | : | 200 to 400 deg F |
| Temperature Settings | : | 200 to 400 deg F |
- Capable up to 30,000 BTUs
- Available in various temperature ranges, with temperature control up to 600 deg F (316 deg C)
- Snap-acting from Off position to full gas flow
- Adjustable bypass key and bypass settings are optional
- Applicable to use with high capacity gas operated diaphragm valves (700-800 Series)
- Adapts to limited mounting space
- Bulb and capillary assemblies supplied in nickel plated copper or stainless steel
- Dials in heat resistant plastic are included
- Ambient temperature is 300 deg F (149 deg C)
