Tekmar® 681 TEK681
  1. pin-int

ADEY INNOVATION 681 Snow/Ice Sensor, In-Slab and Retrofit Aerial Sensor

ADEY INNOVATION 681 Snow/Ice Sensor, In-Slab and Retrofit Aerial Sensor

  • Manufacturer: Watts Water Technologies
  • Brand Name: Tekmar®
  • Part#: TEK681
  • MPN: 681
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

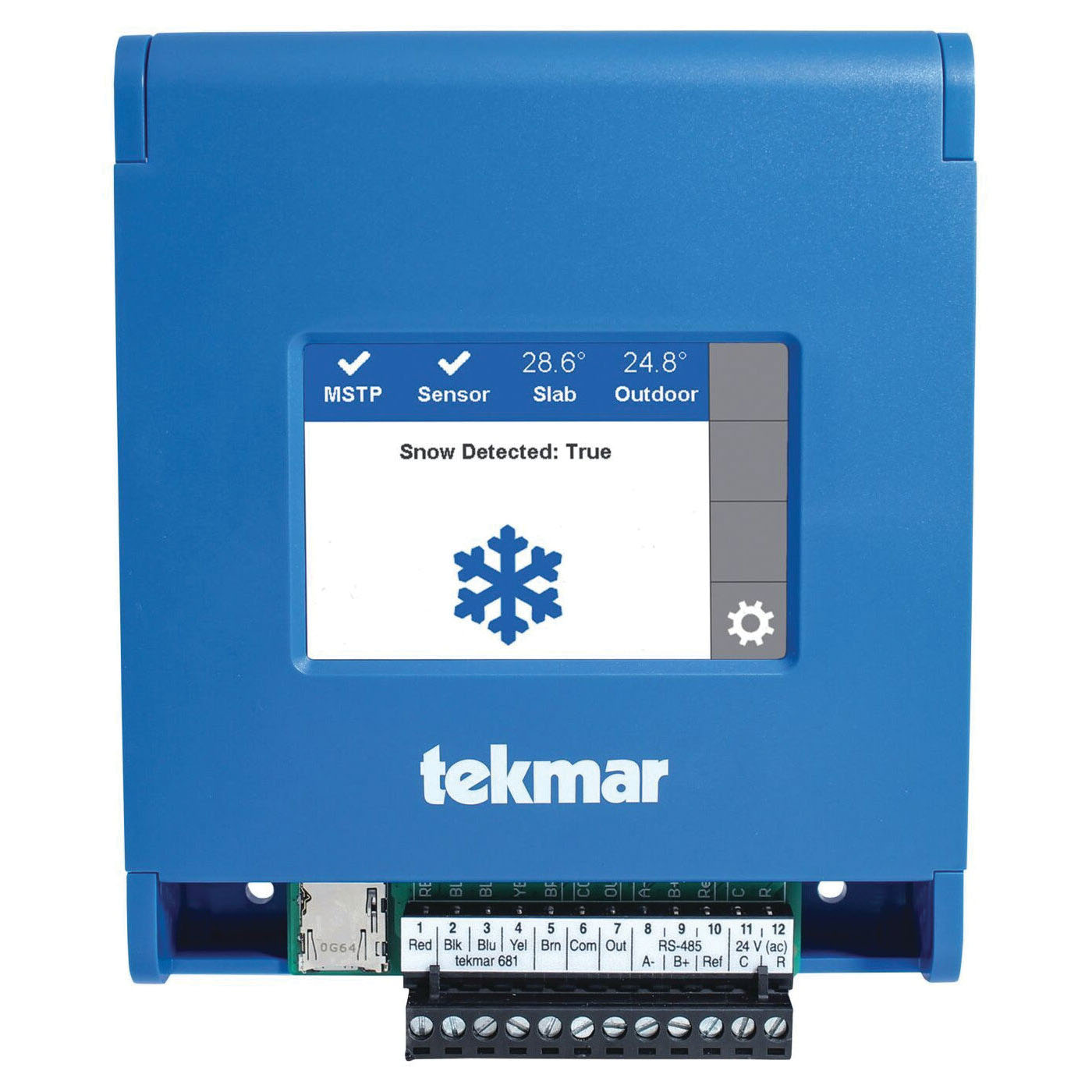

The BACnet Snow/Ice Sensor Interface 681 is designed to measure the presence of snow/ice and interfaces with the Building Automation System (BAS) to operate electric or hydronic snow melting systems. The 681 uses tekmar® sensor technology to automatically detect snow or ice, and upon detection communicates with the BAS through BACnet MS/TP. This operation allows the BAS to automatically turn on/off and provide operational status for a snow melting system. The 681 is suitable for any snow melting commercial application including, hospitals, schools, airports, ski resorts, business entrances, driveways, loading docks, and shopping malls.

Tekmar® Snow/Ice Sensor, In-Slab and Retrofit Aerial Sensor, 24 VAC, 50/60 Hz, NEMA 1 Enclosure, Color Touchscreen Display, 3-1/2 in Display, ABS/Polycarbonate Body, Blue Body, 1.3 in Overall Length, 5.13 in Overall Width, 6.34 in Overall Height, Additional Information: BACnet MSTP Communication

Additional Information      :      BACnet MSTP Communication
Body Color      :      Blue
Body Material      :      ABS/Polycarbonate
Display Size      :      3-1/2 in
Display Type      :      Color Touchscreen
Enclosure Type      :      NEMA 1
Frequency Rating      :      50/60 Hz
Overall Height      :      6.34 in
Overall Length      :      1.3 in
Overall Width      :      5.13 in
Sensor Type      :      In-Slab and Retrofit Aerial
Voltage Rating      :      24 VAC
  • Automatic snow / ice detection
  • BACnet MSTP communication
  • Supports both in-slab and retrofit aerial sensors
  • Warm weather shut down
  • Cold weather cut off
  • Slab target temperature
  • Error codes
  • Melt pending
  • Supports both DIN rail and backplate mount
