Jard® by Mars® 92360 MRR92360
  1. pin-int

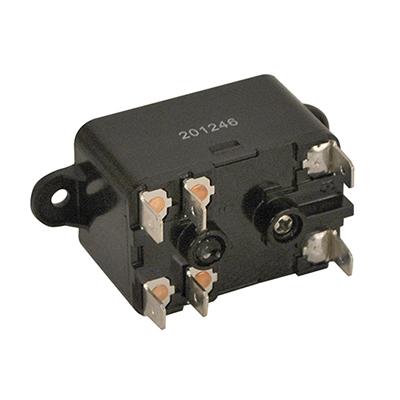

Jard® by Mars® 92360 Power Relay, 24 V Coil, 18 A, 1NO, SPST

Jard® by Mars® 92360 Power Relay, 24 V Coil, 18 A, 1NO, SPST

  • Manufacturer: RectorSeal
  • Brand Name: Jard® by Mars®
  • Part#: MRR92360
  • MPN: 92360
  • UPC: 685744923602
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Jard® by Mars® Power Relay, 20.4 V, 18 A, 24 V Coil, 1NO, SPST Contact Form, Quick-Connect Terminal, Tab Mounting, Additional Information: 60 Hz Frequency

Additional Information      :      60 Hz Frequency
Amperage Rating      :      18 A
Coil Voltage      :      24 V
Contact Form      :      1NO, SPST
Contact Rating Amps      :      18
Drop-out Voltage      :      4.8
Hold Voltage      :      13.2
Hz      :      60
Mounting Type      :      Tab
Mounting      :      Tab
Pick-up Voltage      :      20.4
Relay Type      :      Power Relay
Terminal Style      :      Quick Connect
Terminal Type      :      Quick-Connect
Voltage Rating      :      20.4 V
  • The most popular relays used in HVAC equipment
  • Replaces WR/Essex/RBM type 184
  • 0.25 in. Quick-connect Terminals
  • Tab bracket, Non-positional
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Jard_by_Mars_92291_Specification_Sheet.pdf
