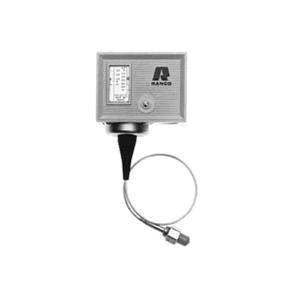

RANCO® O Series O16-557 Single Low Pressure Control, 0.4 to 3.5 bar, 1/4 in, SAE Male Flared
- Manufacturer: Robertshaw
- Brand Name: RANCO®
- Part#: INV720-406
- MPN: O16-557
- UPC: 662013922818
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.
RANCO® Single Low Pressure Control, O Series, 0.4 to 3.5 bar, 50 psi Maximum Pressure, 0.3 to 2.4 bar Differential Pressure, SPDT Switch, 1/4 in Connection, Connection Type: SAE Male Flared, Automatic Reset, Additional Information: 3.3 in L x 2 in W x 4.2 in H Dimensions
| Additional Information | : | 3.3 in L x 2 in W x 4.2 in H Dimensions |
| Connection Size | : | 1/4 in |
| Connection Type | : | SAE Male Flared |
| Differential Pressure | : | 0.3 to 2.4 bar |
| Maximum Pressure | : | 50 psi |
| Pressure Rating | : | 0.4 to 3.5 bar |
| Reset Type | : | Automatic |
| Series | : | O Series |
| Switch Type | : | SPDT |
- Controls available for most refrigerant types
- High-amp rated switch (SPST) design (O10-1402/O10-1483)
- Super Cap® capillary vibration protection system
- Non-conductive front cover with captive screw
- Adjustable differential and range
- Easy-to-read scale plate
- Vibration cone (absorbs and reduces vibration away from brazed joint)
- Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
- Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A
