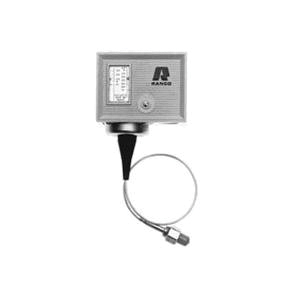

RANCO® O Series O16-209 High Pressure Control, 10 to 31 bar, 1/4 in, SAE Male Flared
- Manufacturer: Robertshaw
- Brand Name: RANCO®
- Part#: INV10-227
- MPN: O16-209
- UPC: 662013922757
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
These controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.
RANCO® High Pressure Control, O Series, 10 to 31 bar, 450 psi Maximum Pressure, 3 bar Differential Pressure, SPDT Switch, 1/4 in Connection, Connection Type: SAE Male Flared, Manual Reset, Additional Information: 3.4 in L x 2 in W x 4.2 in H Dimensions
| Additional Information | : | 3.4 in L x 2 in W x 4.2 in H Dimensions |
| Connection Size | : | 1/4 in |
| Connection Type | : | SAE Male Flared |
| Differential Pressure | : | 3 bar |
| Maximum Pressure | : | 450 psi |
| Pressure Rating | : | 10 to 31 bar |
| Reset Type | : | Manual |
| Series | : | O Series |
| Switch Type | : | SPDT |
- NEMA 1 enclosure with non-conductive cover
- Front-located captive cover screw
- Large, easy-to-read scale plate
- SUPER CAP® capillary protection system
- Universal mounting and compact design
- Screw terminals are raised and fully accessible for easy wiring
- Laser-welded bellows for extended life
- Heavy-duty plated steel frame
- Suitable for R12, R22, and R502 applications
