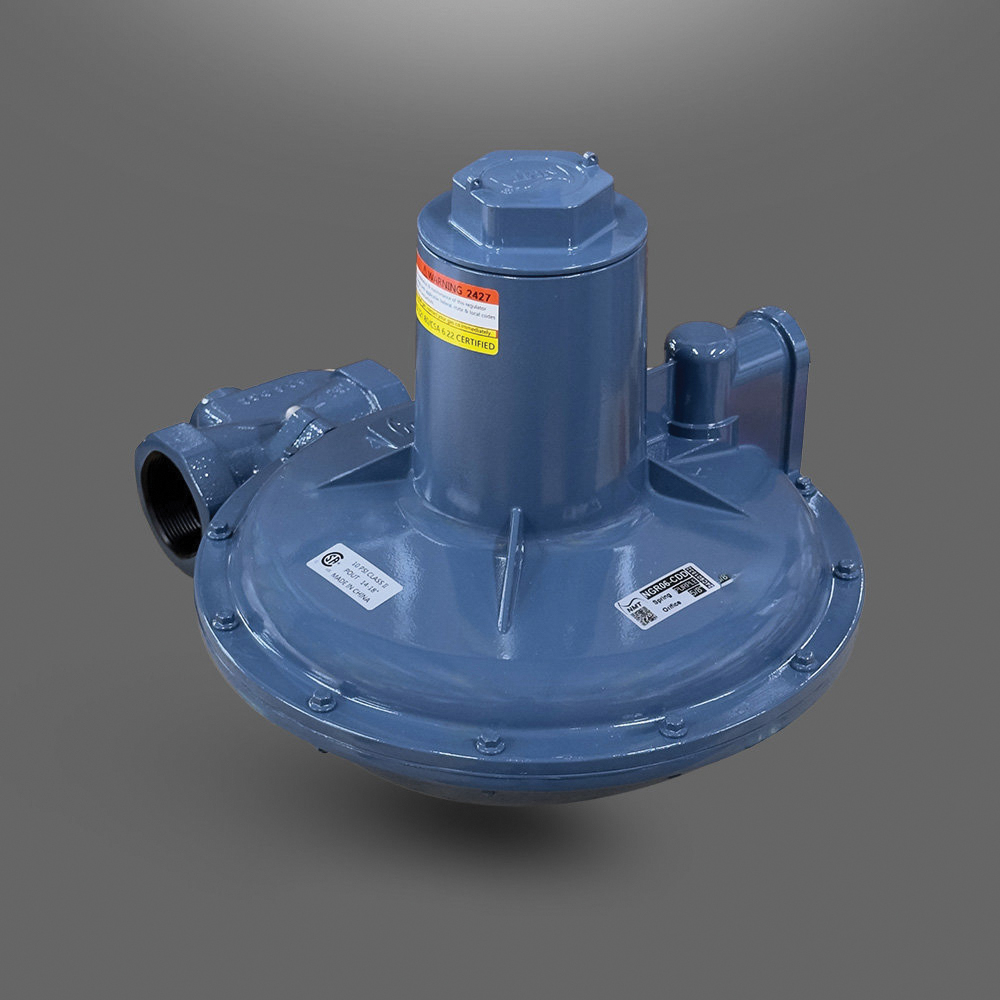

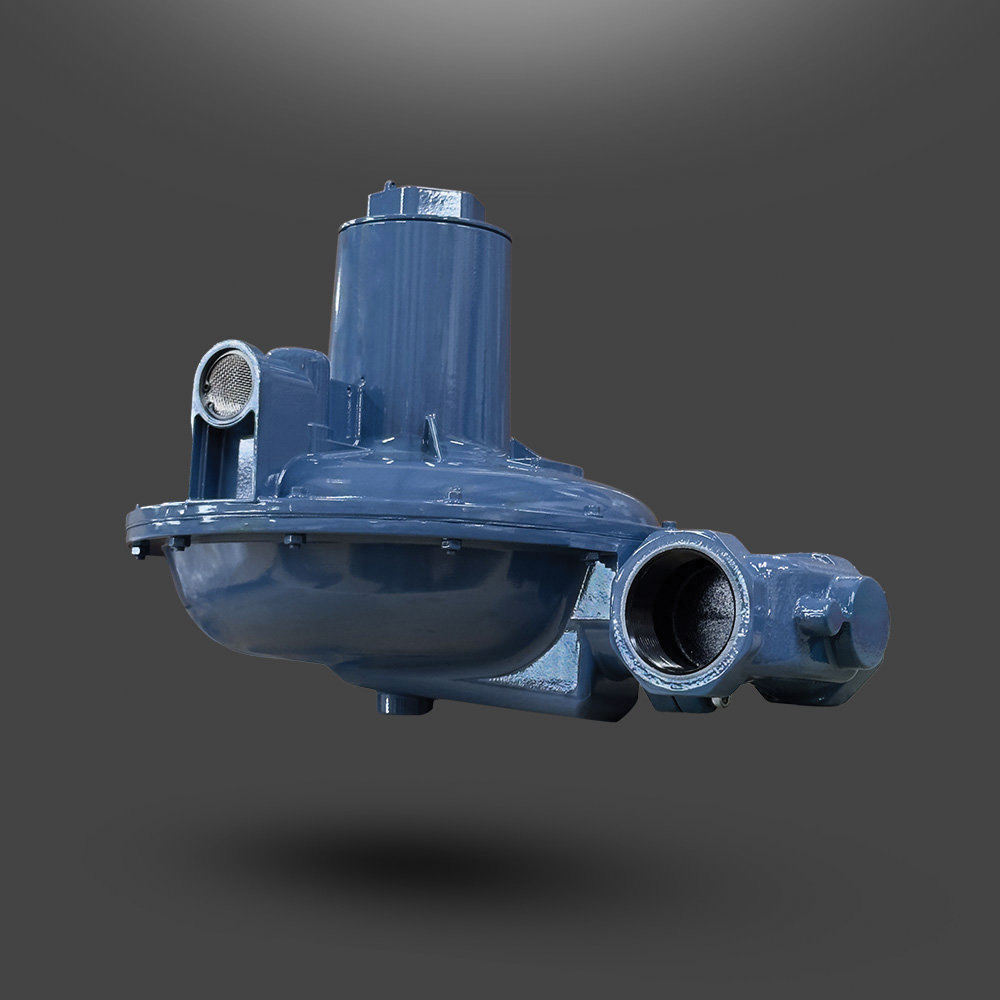

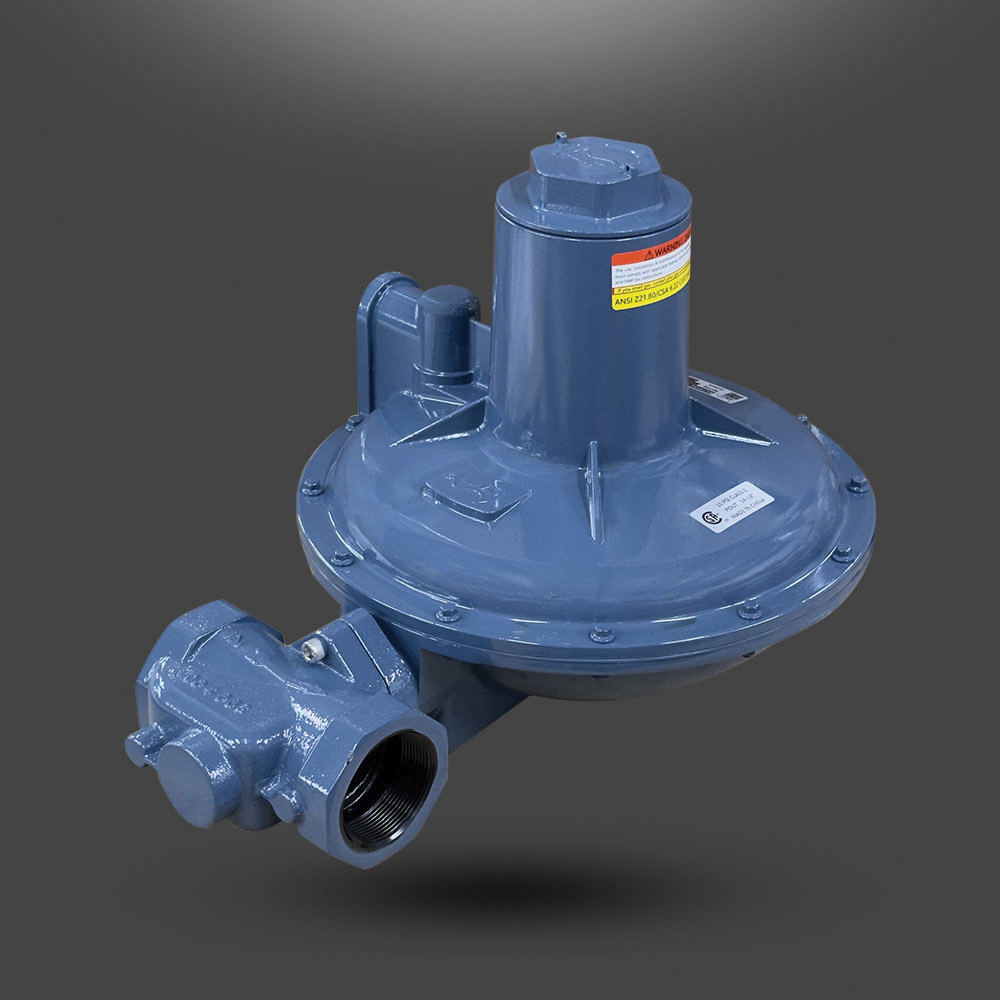

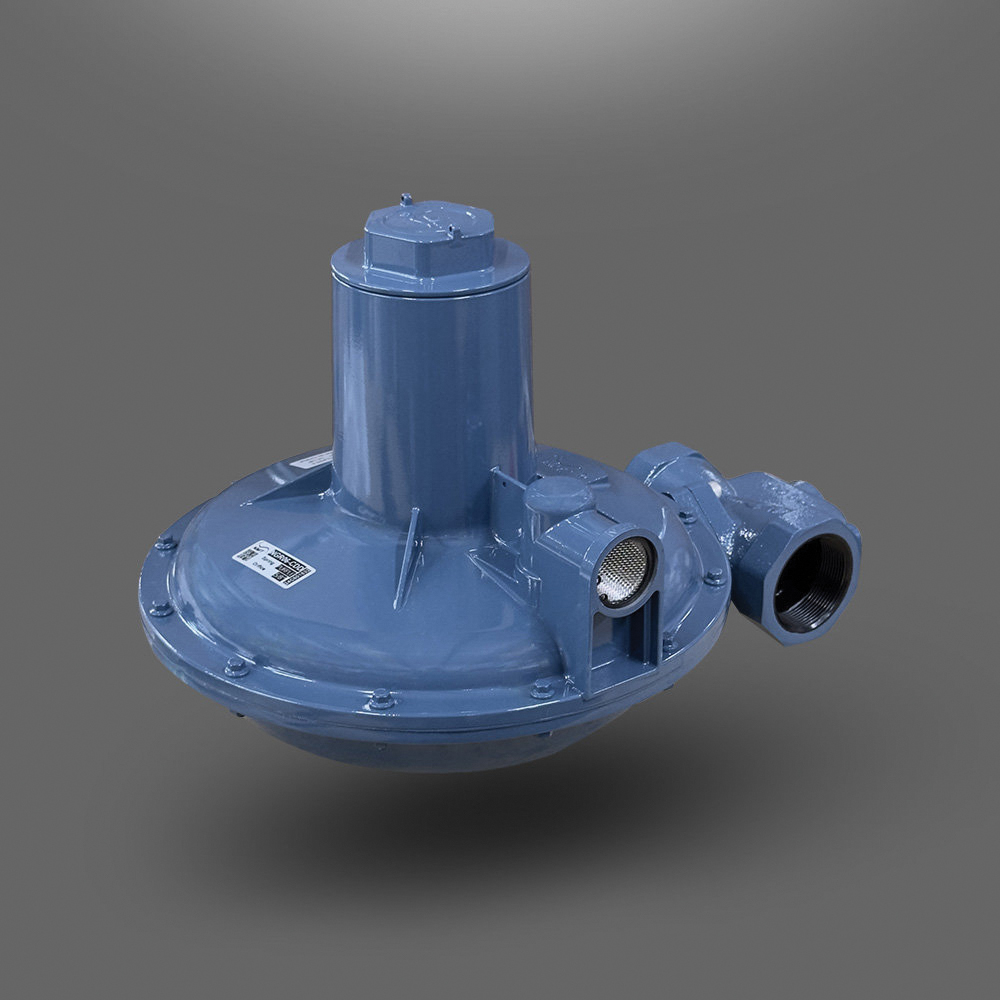

NMT™ NGR06 Series NGR06-112-FB-SC Spring Loaded Gas Regulator, 1-1/2 in Nominal, LP Gas, Natural Gas Fuel, 125 psig
- Manufacturer: Norgas Meter Technologies
- Brand Name: NMT™
- Part#: NRGNGR06-112-FB-SC
- MPN: NGR06-112-FB-SC
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The NMT® NGR06 series spring-loaded gas regulators with internal relief provide consistent and controlled pressure in a variety of residential, industrial, and commercial applications. The NGR06 meets ANSI Z21.80 for Class I, Class II, Vent Limiting, and OPD (Overpressure Protection Device) applications and is designed to be used in manyapplications where non-corrosive dry gases are used.
NMT™ Spring Loaded Gas Regulator, NGR06 Series, 1-1/2 in Nominal, 3/8 in Orifice, Connection Type: NPT, LP Gas, Natural Gas Fuel, 125 psig, Aluminum, Epoxy-Coated, -40 to 140 deg F, Additional Information: Black Spring Color, Cast Iron Value Body, Buna-N Diaphragm/Valve Seat, High Strength Brass Orifice
| Additional Information | : | Black Spring Color, Cast Iron Value Body, Buna-N Diaphragm/Valve Seat, High Strength Brass Orifice |
| Connection Type | : | NPT |
| Finish | : | Epoxy-Coated |
| Fuel Type | : | LP Gas, Natural Gas |
| Material | : | Aluminum |
| Nominal Size | : | 1-1/2 in |
| Orifice Size | : | 3/8 in |
| Pressure Rating | : | 125 psig |
| Series | : | NGR06 Series |
| Temperature Rating | : | -40 to 140 deg F |
- ANSI Z21.80 certified
- Vent Limiter Option
- Internal Relief - OPD
- Outlet pressures up to 7 psig
- Conforms to ANSI B109.4
- Corrosion-resistant exterior
Specification Sheet
