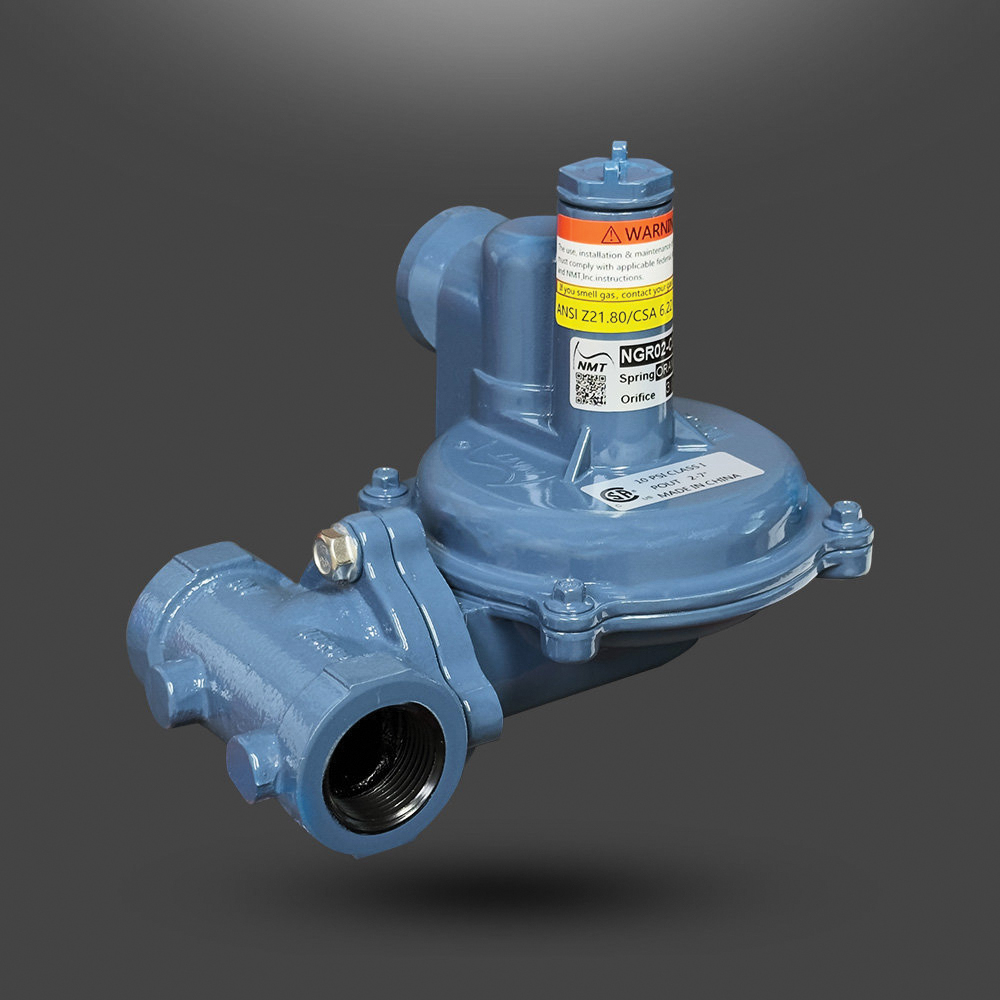

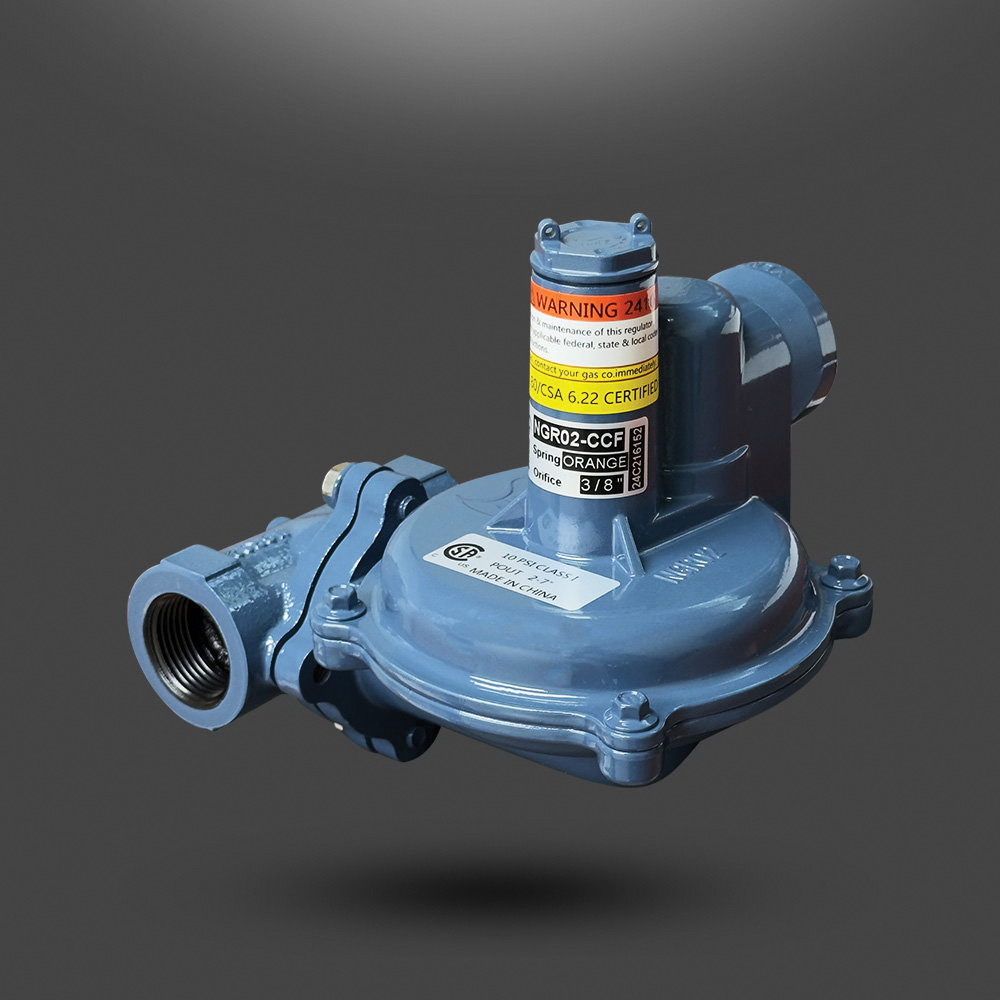

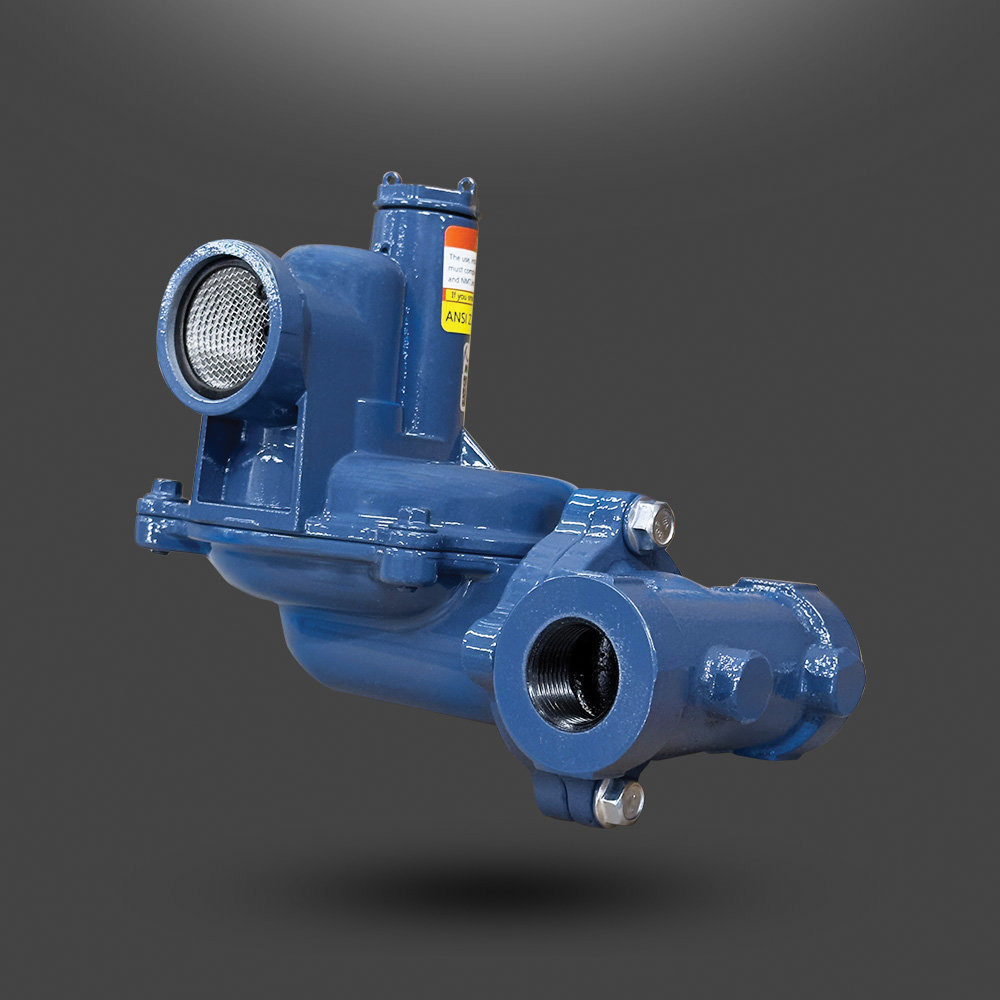

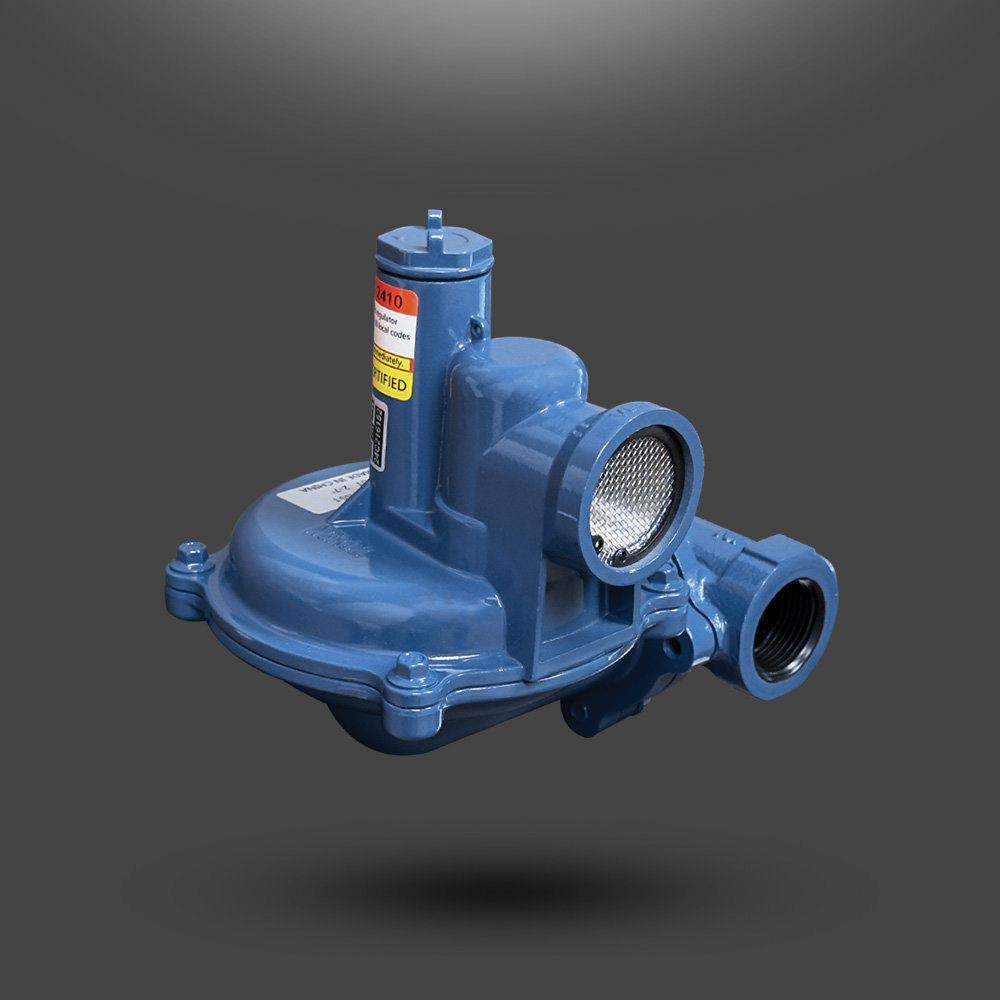

NMT™ NGR02 Series NGR02-1-FD-SD Spring Loaded Gas Regulator, 1 in Nominal, LP Gas, Natural Gas Fuel, 10 psig, Aluminum
- Manufacturer: Norgas Meter Technologies
- Brand Name: NMT™
- Part#: NRGNGR02-1-FD-SD
- MPN: NGR02-1-FD-SD
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The NMT® NGR02 series spring-loaded gas regulators with internal relief provide consistent and controlled pressure in a variety of residential, industrial, and commercial applications. The NGR02 meets ANSI Z21.80 for Class I, Class II, Vent Limiting, and OPD (Overpressure Protection Device) applications and is designed to be used in many applications where non-corrosive dry gases are used.
NMT™ Spring Loaded Gas Regulator, NGR02 Series, 1 in Nominal, 1/2 in Orifice, Connection Type: NPT, LP Gas, Natural Gas Fuel, 10 psig, Aluminum, Epoxy-Coated, -40 to 140 deg F, Additional Information: Yellow Spring Color, Cast Iron Value Body, Buna-N Diaphragm/Valve Seat, High Strength Brass Orifice
| Additional Information | : | Yellow Spring Color, Cast Iron Value Body, Buna-N Diaphragm/Valve Seat, High Strength Brass Orifice |
| Connection Type | : | NPT |
| Finish | : | Epoxy-Coated |
| Fuel Type | : | LP Gas, Natural Gas |
| Material | : | Aluminum |
| Nominal Size | : | 1 in |
| Orifice Size | : | 1/2 in |
| Pressure Rating | : | 10 psig |
| Series | : | NGR02 Series |
| Temperature Rating | : | -40 to 140 deg F |
- ANSI Z21.80 certified
- Vent Limiter Option
- Internal Relief - OPD
- Outlet pressures up to 5 psig
- Conforms to ANSI B109.4
- Corrosion-resistant exterior
Specification Sheet
