HATTERSLEY-MILKN LUB PLUG VLV 325-L Series MXT-325-5L600.75 Regulator, 1 in Nominal, 425000 Btu/hr Nominal, 5 psi
- Manufacturer: Norgas Meter Technologies
- Brand Name: NMT™
- Part#: NRGMXT-325-5L600.75
- MPN: MXT-325-5L600.75
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Designed for higher pressure applications where vent lines are not required and an OPD safety device is included. They can be used outside but need to be protected from the elements.
NMT™ Regulator, 325-L Series, 1 in Nominal, 425000 Btu/hr Nominal Capacity, Connection Type: NPT, 5 psi, Aluminum, -40 to 205 deg F, 11 in L x 5-1/2 in H
| Connection Type | : | NPT |

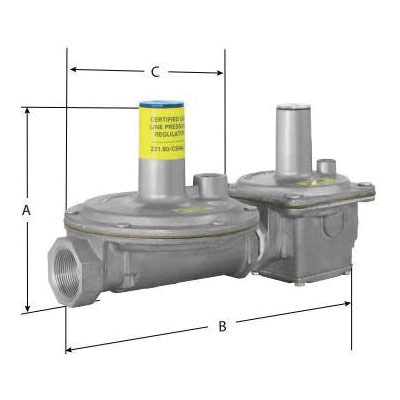

| Dimensions | : | 11 in L x 5-1/2 in H |
| Material | : | Aluminum |
| Nominal Capacity | : | 425000 Btu/hr |
| Nominal Size | : | 1 in |
| Pressure Rating | : | 5 psi |
| Series | : | 325-L Series |
| Temperature Rating | : | -40 to 205 deg F |
- Minimum Inlet Pressure: 1 PSI
- Maximum Inlet Pressure: 5 PSI
- Outlet Pressure Range: 7" - 11" WC
- Size Range: 3/8" - 3" NPT
- Approvals: ANSI Z21.80 & CSA 6.22 (Class I)
Specification Sheet
