WHITE-RODGERS™ 048225 Liquid Line Filter Drier, 1-1/8 in, Sweat ODF, 41 cu-in Volume, 38.7
- Manufacturer: Copeland LP
- Brand Name: WHITE-RODGERS™
- Part#: RIG48225
- MPN: 048225
- UPC: 681344482259
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability

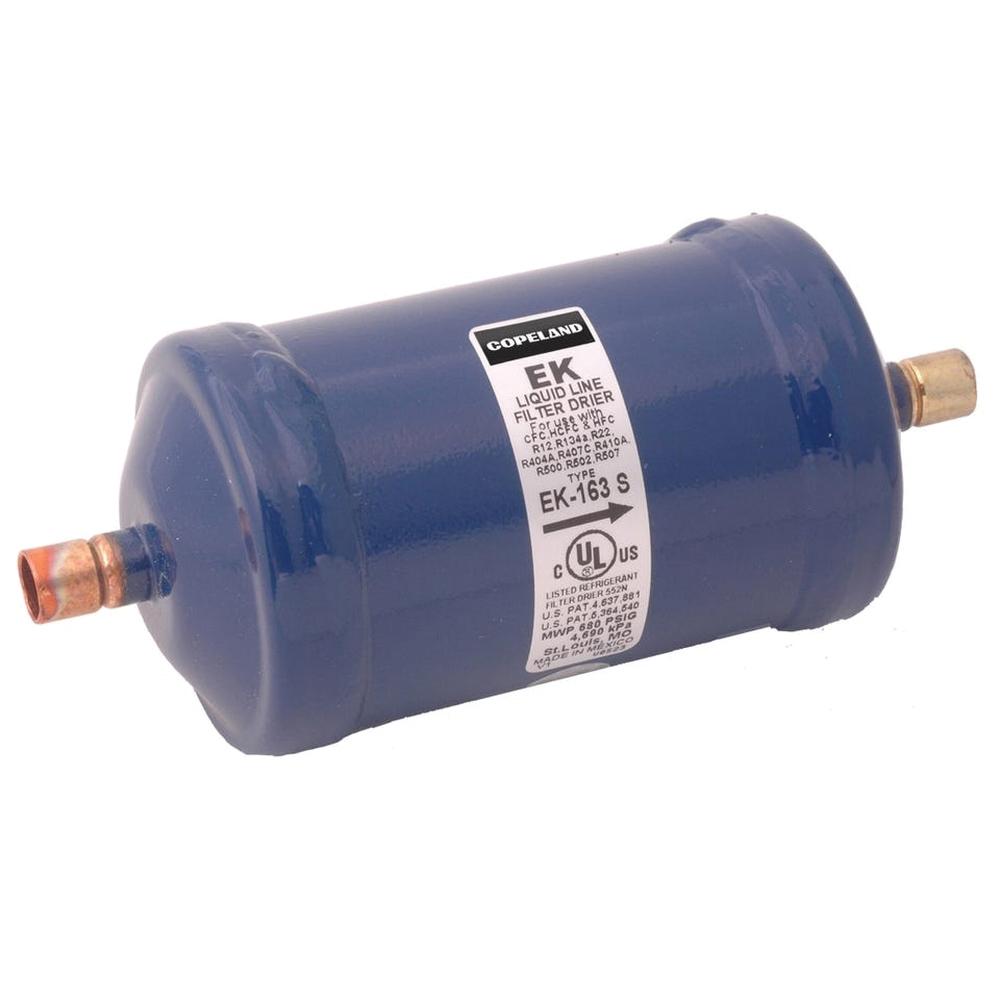

The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC, and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.
WHITE-RODGERS™ Liquid Line Filter Drier, EK Series, EK 419S Model, 1-1/8 in, Connection Type: Sweat ODF, 680 psig, 20 um Micron Rating, 41 cu-in Volume, R-22, R-410A, R-448A, R-449A, R-134A, R-450A, R-513A, R-290, R-404A, R-507, R-452A, R-452C, R-407C, R-744 Refrigerant Type, 38.7 Flow Capacity, CFC, HCFC, HFC Refrigerants Suitable For Use With, Epoxy Powder-Coated, 3.64 in Dia x 10.39 in L Dimensions, Import Domestic/Import
| Connection Type | : | Sweat ODF |
| Dimensions | : | 3.64 in Dia x 10.39 in L |
| Domestic/Import | : | Import |
| Finish | : | Epoxy Powder-Coated |
| Flow Capacity | : | 38.7 |
| Micron Rating | : | 20 um |
| Model | : | EK 419S |
| Pressure Rating | : | 680 psig |
| Refrigerant Type | : | R-22, R-410A, R-448A, R-449A, R-134A, R-450A, R-513A, R-290, R-404A, R-507, R-452A, R-452C, R-407C, R-744 |
| Series | : | EK Series |
| Size | : | 1-1/8 in |
| Suitable For Use With | : | CFC, HCFC, HFC Refrigerants |
| Volume | : | 41 cu-in |
- Filtration first for more effective use of surface area of desiccant
- High moisture and acid removal capacity
- Solid copper connections
- Corrosion resistant epoxy powder paint finish
- Approved for POE oils with Copeland™ compressors
- Shock resistant steel shell construction
