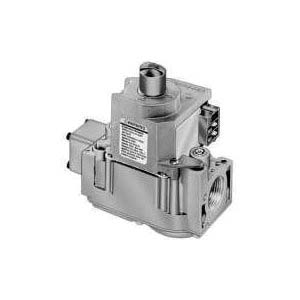

HONEYWELL VR8305P4279/U Combination Gas Control, 1/4 in Nominal, Male Quick-Disconnect End, 0.5 psi

Combination gas control for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances, with capacities from 30 to 415 cfh.

resideo Combination Gas Control, 1/4 in Nominal, Male Quick-Disconnect End, 0.5 psi, -40 to 79 deg C, 4-1/16 in Width, 2-11/16 in Height, 5-3/8 in Depth, Additional Information: 30000 to 415000 Btu/hr Nominal Capacity, Direct Ignition, Natural Gas, 24 VAC Voltage Rating, 60 Hz Frequency Rating

• Controls include manual valve, two automatic operators, and pressure regulator
• Provide two automatic valves
• Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
• Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted
• Meet codes requiring dual safety shutoff
• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
• ON-OFF lighting sequence
• All adjustments, wiring connections and pilot outlet are accessible from top of control
• Use VR8305 models with S89C,E,F and S87 series 5 and later

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/resideo_VR8205C1024_U_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/resideo_R8229A1021_U_Specification_Sheet.pdf
