resideo VR8205A2024/U HNWVR8205A2024/U
  1. pin-int

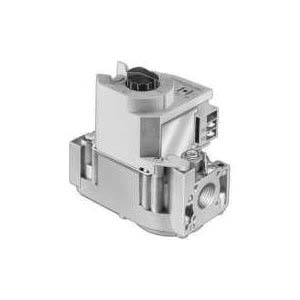

HONEYWELL VR8205A2024/U Direct Ignition Gas Valve, 1/2 in Nominal, Male Quick-Disconnect End, 0.5 psi

HONEYWELL VR8205A2024/U Direct Ignition Gas Valve, 1/2 in Nominal, Male Quick-Disconnect End, 0.5 psi

  • Manufacturer: Resideo Technologies Inc
  • Brand Name: resideo
  • Part#: HNWVR8205A2024/U
  • MPN: VR8205A2024/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

resideo Direct Ignition Gas Valve, 1/2 in Nominal, Male Quick-Disconnect End, 0.5 psi, -18 to 79 deg C, 4-1/8 in Width, 2-11/16 in Height, 4-15/16 in Depth, Additional Information: 0.87 kPa Pressure Regulator Setpoint, 20000 to 200000 Btu/hr Nominal Capacity, Direct Ignition, Natural Gas, 24 VAC Voltage Rating, 60 Hz Frequency Rating, 1/4 in Electrical Connection

Additional Information      :      0.87 kPa Pressure Regulator Setpoint, 20000 to 200000 Btu/hr Nominal Capacity, Direct Ignition, Natural Gas, 24 VAC Voltage Rating, 60 Hz Frequency Rating, 1/4 in Electrical Connection
Depth      :      4-15/16 in
End Type      :      Male Quick-Disconnect
Height      :      2-11/16 in
Nominal Size      :      1/2 in
Pressure Rating      :      0.5 psi
Temperature Rating      :      -18 to 79 deg C
Width      :      4-1/8 in
  • Controls include manual valve, two automatic operators, and pressure regulator
  • Provide two automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
  • Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted
  • Meet codes requiring dual safety shutoff
  • Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
  • All adjustments, wiring connections and pilot outlet are accessible from top of control
  • ON-OFF lighting sequence
