MERSEN Surge-Trap® STXH Series STXH240S05 Surge Protector, 120/240 V, 200 kA Short Circuit
- Manufacturer: Mersen
- Brand Name: MERSEN
- Part#: INVSTXH240S05
- MPN: STXH240S05
- UPC: 782001472504
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Surge-Trap® STXH is listed UL Type 1 and fully compliant with UL1449 5th Edition, suitable for any 120/240VAC split phase application. Equipped with TPMOV® technology, stands out as the safest option in its class. Compact design, combined with superior performance and reliability, makes it particularly suited for HVAC systems and direct attachment to air conditioning disconnect switches.
MERSEN Surge Protector, Surge-Trap® STXH Series, 120/240 V, 20 kA Normal Discharge Current, 200 kA Short Circuit, Polycarbonate, 81.3 mm Overall Length, 47 mm Overall Width, 81.8 in Overall Depth, Additional Information: 50/60 Hz Frequency Rating, Panel-Mount
| Additional Information | : | 50/60 Hz Frequency Rating, Panel-Mount |
| Material | : | Polycarbonate |
| Normal Discharge Current | : | 20 kA |
| Overall Depth | : | 81.8 in |
| Overall Length | : | 81.3 mm |
| Overall Width | : | 47 mm |
| Series | : | Surge-Trap® STXH Series |
| Short Circuit Rating | : | 200 kA |
| Voltage Rating | : | 120/240 V |
- Mersen TPMOV Technology - does not require additional overcurrent protection
- Compact footprint for seamless integration with AC Disconnect Switches
- NEMA 4X enclosure for outdoor or indoor use

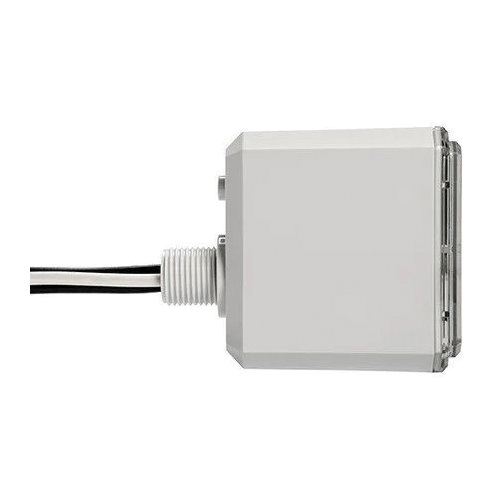

- Fits 1/2" knockouts with 18" leads for easy installation
- Up to 3 modes of protection (L-N, L-L, and L-G)

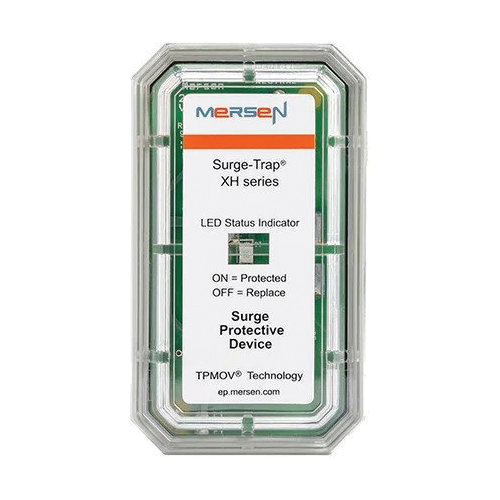

- Bright LED status indicator, visible from side profile through clear cover
- 3-year manufacturer's warranty, plus up to $25k connected equipment warranty (for details see warranty statement)
Full Engineering Drawing
