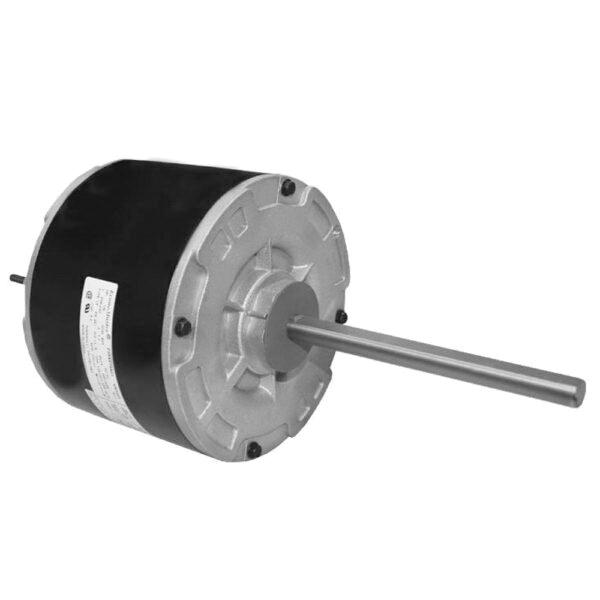

Rotom CF-816 Condenser Fan Motor, 1/6 hp, 208 to 230 V, 60 Hz, 48Y Frame, 825 rpm Speed
- Manufacturer: DiversiTech Corporation
- Brand Name: Rotom
- Part#: ALPCF-816
- MPN: CF-816
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Rotom Condenser Fan Motor, 1/6 hp HP Rating, 208 to 230 V, 1 A, 60 Hz, 825 rpm Speed Rating, 1 Speed, Totally Enclosed, 48Y Frame, 1/2 in Dia x 6 in L Shaft, Ball Bearing, Stud and Strap Mount, 60 deg C, Insulation Class: Class B
| Amperage Rating | : | 1 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | Totally Enclosed |
| Frame | : | 48Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Stud and Strap |
| Number of Speeds | : | 1 |
| Shaft Size | : | 1/2 in Dia x 6 in L |
| Speed Rating | : | 825 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208 to 230 V |
- Reversible
- Rain shields
- Thermally protected
