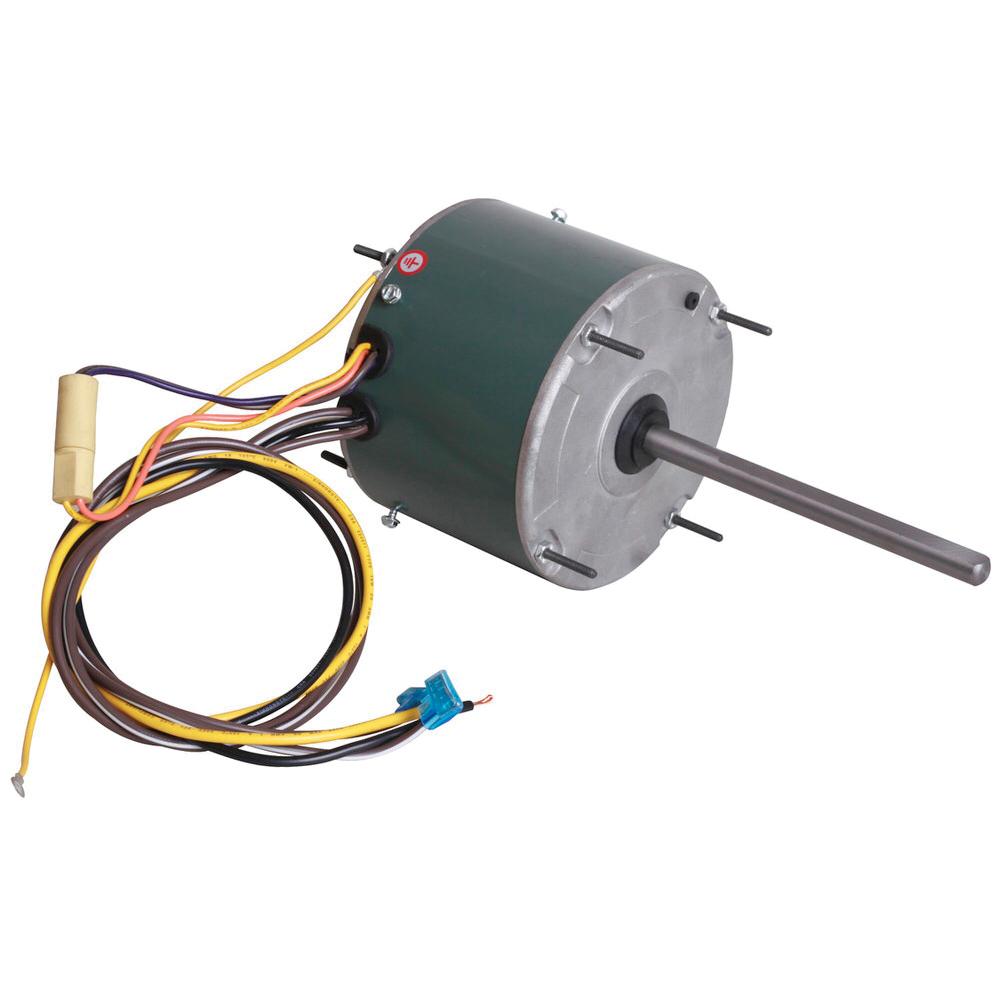

Rotom CF-3735 Condenser Fan Motor, 3/4 hp, 208/230 VAC, 60 Hz, 1 ph, 48Y Frame, 1075 rpm Speed
- Manufacturer: DiversiTech Corporation
- Brand Name: Rotom
- Part#: ALPCF-3735
- MPN: CF-3735
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Rotom Condenser Fan Motor, 3/4 hp, 208/230 VAC, 4.6 A, 60 Hz, 1 ph, 1075 rpm Speed, Number of Speeds: 1, Totally Enclosed Enclosure, Frame: 48Y, 1/2 x 5-1/2 in Shaft, Ball Bearing, Stud Mounting, 60 deg C, B Insulation Class, 5-3/4 in W Overall, Additional Information: Reversible Rotation
| Additional Information | : | Reversible Rotation |
| Amperage Rating | : | 4.6 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | Totally Enclosed |
| Frame | : | 48Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| Insulation Class | : | B |
| Mounting Type | : | Stud |
| Number of Speeds | : | 1 |
| Overall Width | : | 5-3/4 in |
| Phase | : | 1 ph |
| Shaft Size | : | 1/2 x 5-1/2 in |
| Speed Rating | : | 1075 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208/230 VAC |
- Thermally protected
- Rain shields
- 25.6 in colored electrical leads
