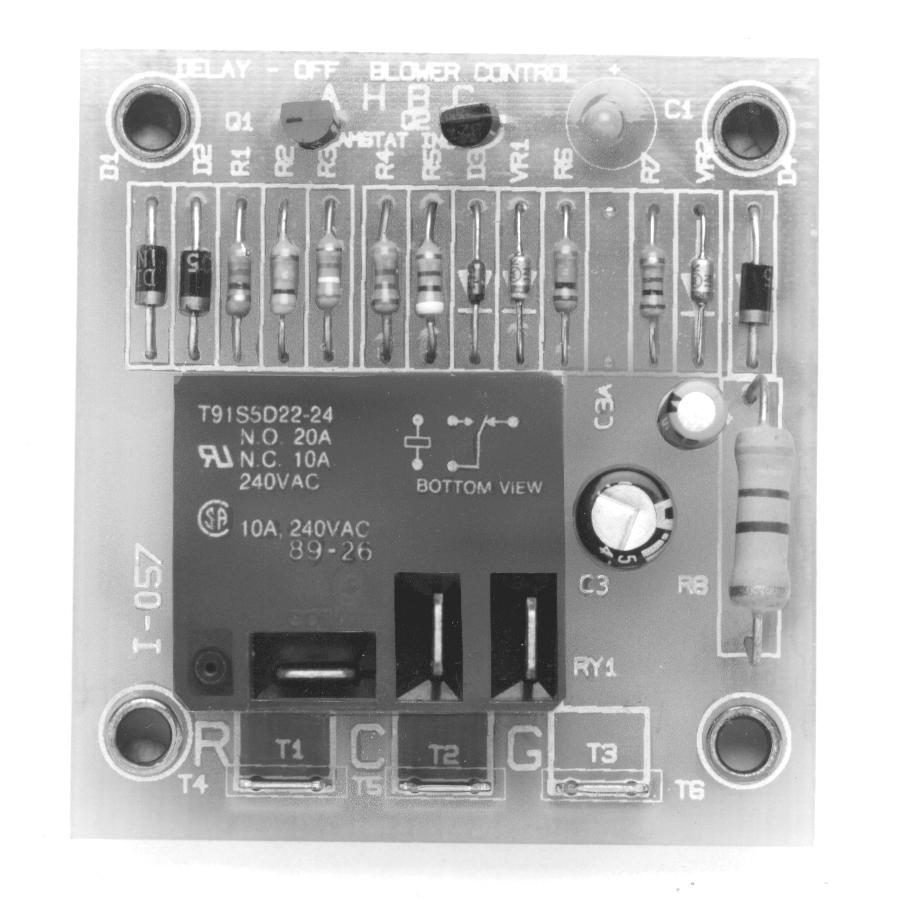

Mars® 32574 Fan Time Delay Module, For Use With: Post Purge Timer
- Manufacturer: Mars
- Brand Name: Mars®
- Part#: MRR32574
- MPN: 32574
- UPC: 685744325741
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
The MAHBC fan time delay module is a replacement for the direct motor control used by leading OEMs in high efficiency conditioning systems. The purpose of the control is to keep the blower motor running for 60 seconds after the thermostat has been satisfied. The result is an increase in residual cooling from the indoor coil without running the condensing unit, and thus, higher energy efficiency. The MAHBC is ideal for retrofit where improved efficiency is desirable.
Mars® Fan Time Delay Module, 18-30 V, 50/60 Hz, Connection Type: Male Quick-Connect, Specifications: SPDT 10NC-20NO, 60 s Time Delay Range, 60 s Time Delay Range, For Use With: Post Purge Timer, Additional Information: Fixed Adjustment, -40 to 175 deg F Temperature Rating
| Additional Information | : | Fixed Adjustment, -40 to 175 deg F Temperature Rating |
| Amp Rating | : | N.O. Contact: 20 N.C. contact: 10 |
| Connection Type | : | Male Quick-Connect |
| Frequency Rating | : | 50/60 Hz |
| Hz Rating | : | 50/60 |
| Hz | : | 50/60 |
| Specifications | : | SPDT 10NC-20NO, 60 s Time Delay Range |
| Suitable For Use With | : | Post Purge Timer |
| Time Delay Range | : | 60 Seconds |
| Timer Type | : | Post Purge Timer |
| Type of Adjustment | : | Fixed |
| Voltage Range | : | 18-30Vac |
| Voltage Rating | : | 18-30 V |
- Wide ambient temperature operating range -40degF to 175degF
- 1/4" male quick connect terminals
- Easy surface mount with four #6 screws
- UL and CSA recognized
