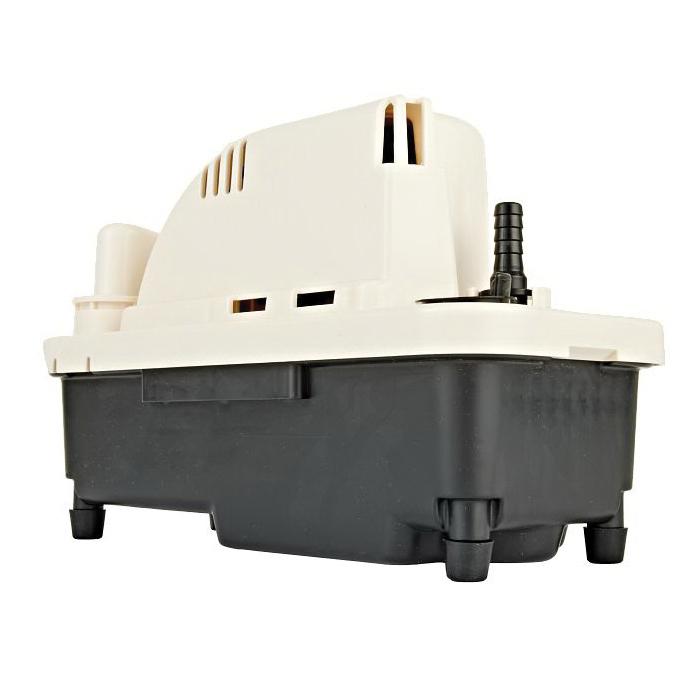

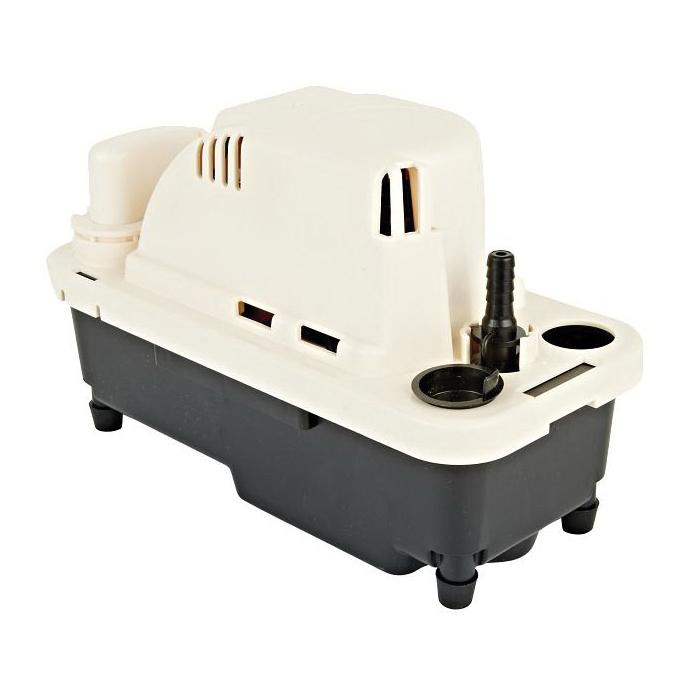

Franklin Electric VCMA-20ULS-PRO 554631 Condensate Pump, 230 VAC, 1.5 A, 1/30 hp, 1.33 gpm, Plastic
- Manufacturer: Franklin Electric
- Brand Name: Franklin Electric
- Part#: LGP554631
- MPN: 554631
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Condensation build-up in air conditioning equipment can wreak havoc on your HVAC system. Little Giant's VCMA-20-PRO Series condensate pump provides a high capacity option for the automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible. Its slim footprint makes this condensate pump the optimal choice for tight spaces.
Franklin Electric Condensate Pump, Model: VCMA-20ULS-PRO, 230 VAC, 1.5 A, 75 W, 1/30 hp, 50/60 Hz, 1.33 gpm Flow Rate, 0.38 in Discharge, Glass Filled Polypropylene Impeller, Shut-Off Head: 20 ft, 6 ft Cord, 8.6 psi, 140 deg F, 10.2 in L x 4.8 in W x 6.5 in H, Plastic
| Amperage Rating | : | 1.5 A |
| Cord Size | : | 6 ft |
| Dimensions | : | 10.2 in L x 4.8 in W x 6.5 in H |
| Discharge Size | : | 0.38 in |
| Flow Rate | : | 1.33 gpm |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1/30 hp |
| Impeller Material | : | Glass Filled Polypropylene |
| Material | : | Plastic |
| Model | : | VCMA-20ULS-PRO |
| Power Rating | : | 75 W |
| Pressure Rating | : | 8.6 psi |
| Shut-Off Head | : | 20 ft |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 230 VAC |
- 1/30 hp high performance motor
- ABS tank, motor cover and volute
- Stainless steel motor shaft
- Fully automatic start/stop and safety switch operations
- Thermally protected fan cooled motor to prevent overheating and possible motor damage
