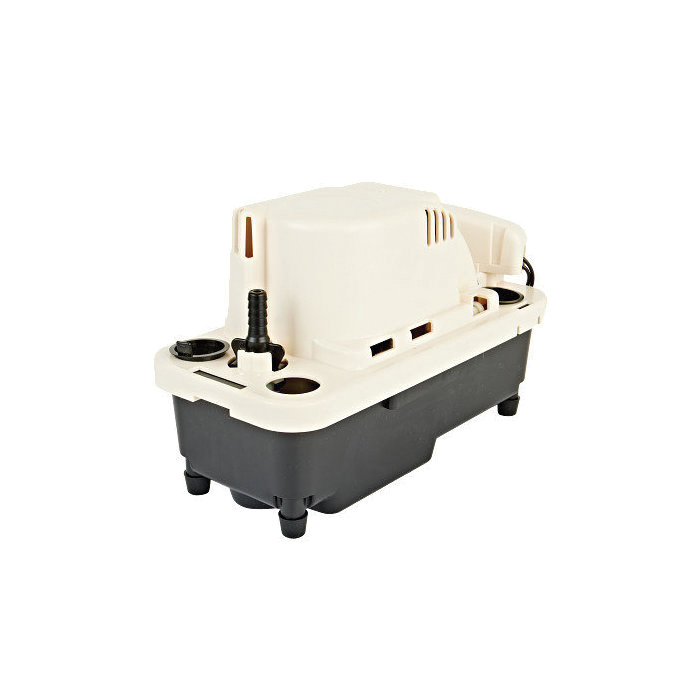

Little GIANT® VCMA-20UL-PRO 554621 Automatic Condensate Removal Pump, 230 VAC, 1.5 A, 1/30 hp, 1.33 gpm, 19 ft Max Head
- Manufacturer: Franklin Electric
- Brand Name: Little GIANT®
- Part#: LGP554621
- MPN: 554621
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
This pump automatically removes condensate water that drips from an air conditioner evaporator coil, refrigeration equipment coil, condensing furnace, or condensing boiler. The pump is controlled by a float switch mechanism, which automatically starts and stops the pump. Some models also include a high-water level switch, which opens a thermostat circuit when the pump reservoir is full, stopping production of condensate. Alternatively, this switch can be reconfigured to close a circuit, which can operate an external alarm or relay, (purchased separately).
Little GIANT® Automatic Condensate Removal Pump, Model: VCMA-20UL-PRO, 230 VAC, 1.5 A, 75 W, 1/30 hp, 50/60 Hz, 1.33 gpm Flow Rate, 0.38 in Discharge, 19 ft Maximum Head, Shut-Off Head: 20 ft, 6 ft Cord, 140 deg F, 10.2 in L x 4.8 in W x 6.5 in H
| Amperage Rating | : | 1.5 A |
| Cord Size | : | 6 ft |
| Correct Item Group | : | Condensate Pumps |
| Dimensions | : | 10.2 in L x 4.8 in W x 6.5 in H |
| Discharge Size | : | 0.38 in |
| Flow Rate | : | 1.33 gpm |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1/30 hp |
| Maximum Feet of Head | : | 20 ft |
| Maximum Head | : | 19 ft |
| Model | : | VCMA-20UL-PRO |
| Operating Temperature | : | 140 deg F |
| Power Rating | : | 75 W |
| Pump Type | : | Condensate |
| Series | : | VCMA Series |
| Shut-Off Head | : | 20 ft |
| Suitable For Use With | : | Air Conditioners, Dehumidifiers |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 230 VAC |
Owners/User Manual
