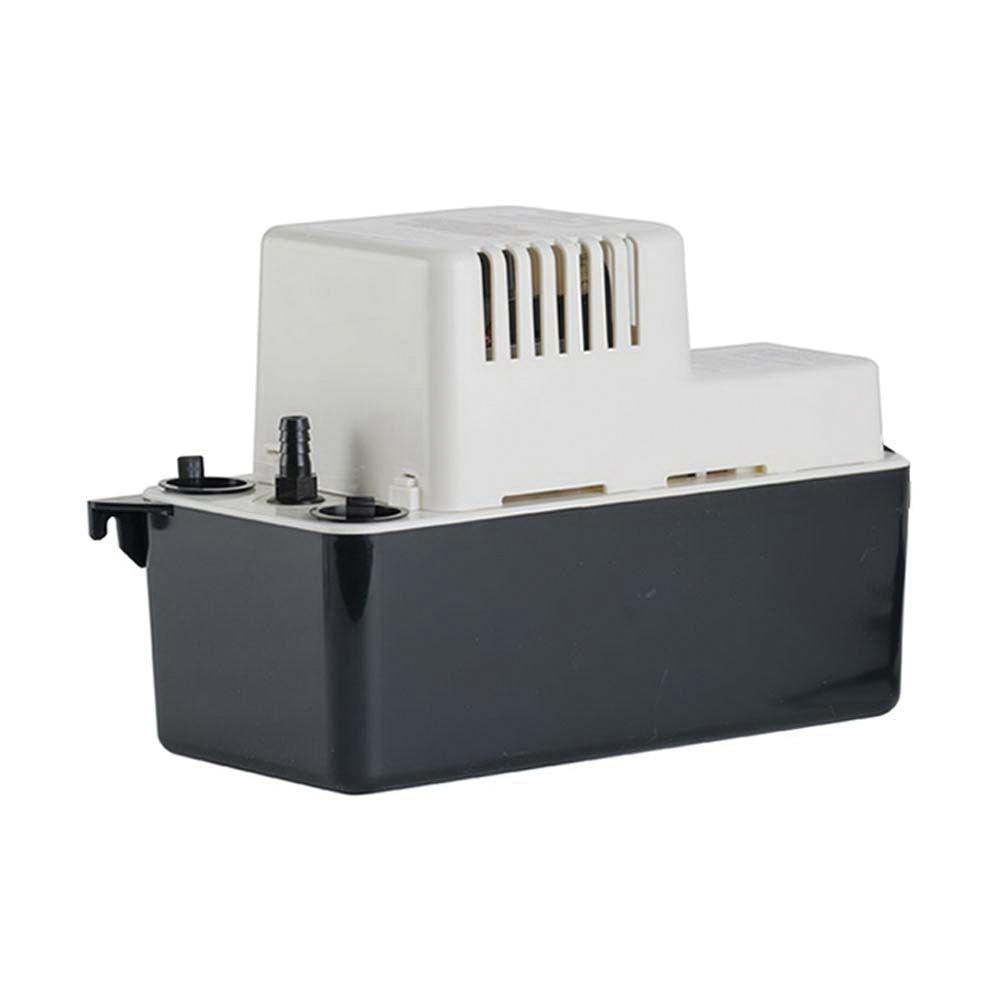

Franklin Electric VCMA-15 Series VCMA-15UL 554401 Condensate Pump, 115 V, 1 A, 1/50 hp, 65 gph, 15 ft Max Head, ABS
- Manufacturer: Franklin Electric
- Brand Name: Franklin Electric
- Part#: LGP554401
- MPN: 554401
- UPC: 010121544017
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Franklin Electric Condensate Pump, Series: VCMA-15 Series, Model: VCMA-15UL, 115 V, 1 A, 60 W, 1/50 hp HP Rating, 60 Hz, 65 gph, 3/8 in Discharge, 15 ft Maximum Head, Polypropylene Impeller, 0.5 gal Tank, 6.5 psi, 140 deg F, 11 in L x 5 in W x 7 in H, ABS
| Amperage Rating | : | 1 A |
| Dimensions | : | 11 in L x 5 in W x 7 in H |
| Discharge Size | : | 3/8 in |
| Flow Rate | : | 65 gph |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/50 hp |
| Impeller Material | : | Polypropylene |
| Material | : | ABS |
| Maximum Head | : | 15 ft |
| Model | : | VCMA-15UL |
| Power Rating | : | 60 W |
| Pressure Rating | : | 6.5 psi |
| Series | : | VCMA-15 Series |
| Tank Size | : | 0.5 gal |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 115 V |
- Automatic start and stop operation
- Thermal protection, fan cooled motor
- Safety overflow switch - dual function no and NC operation (set to no from factory for equipment shut down connection)
- Three 1-1/8 in Dia inlet openings (two fitted with removable cap plug)
- 6 ft three conductor cables with grounded three prong plug
- Built-in wall-mount tabs on tank
- Three inlet drain holes
- Removable pump float locking tab for safety during transportation (remove at time of installation)
- Snap action switch
- Safety overflow switch includes two 5 in switch lead wires
