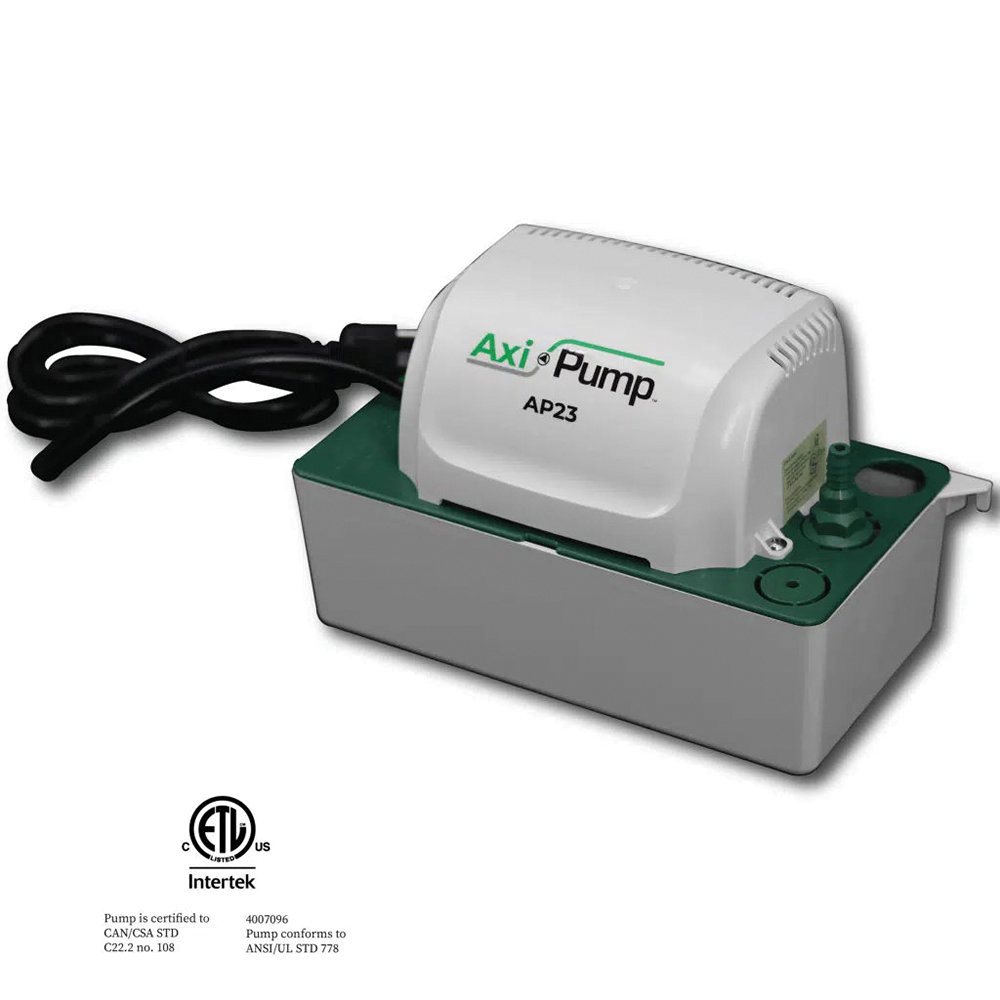

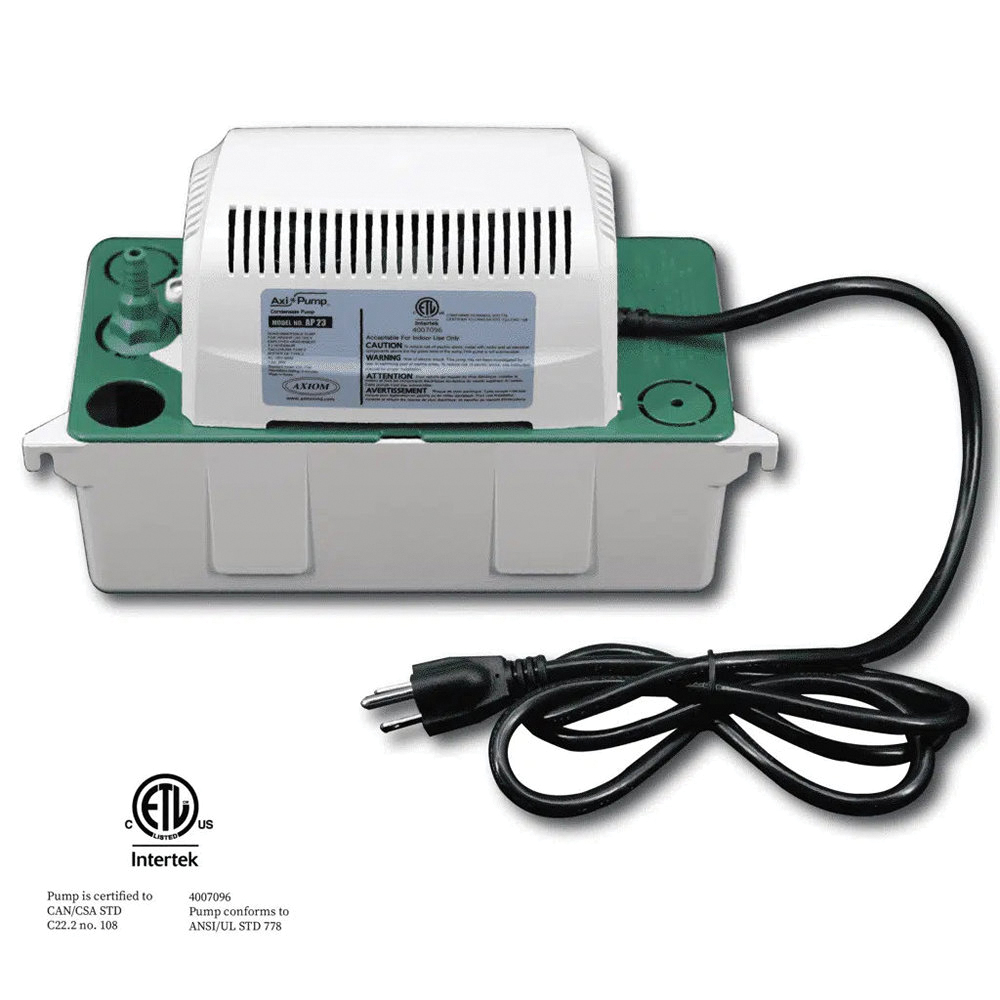

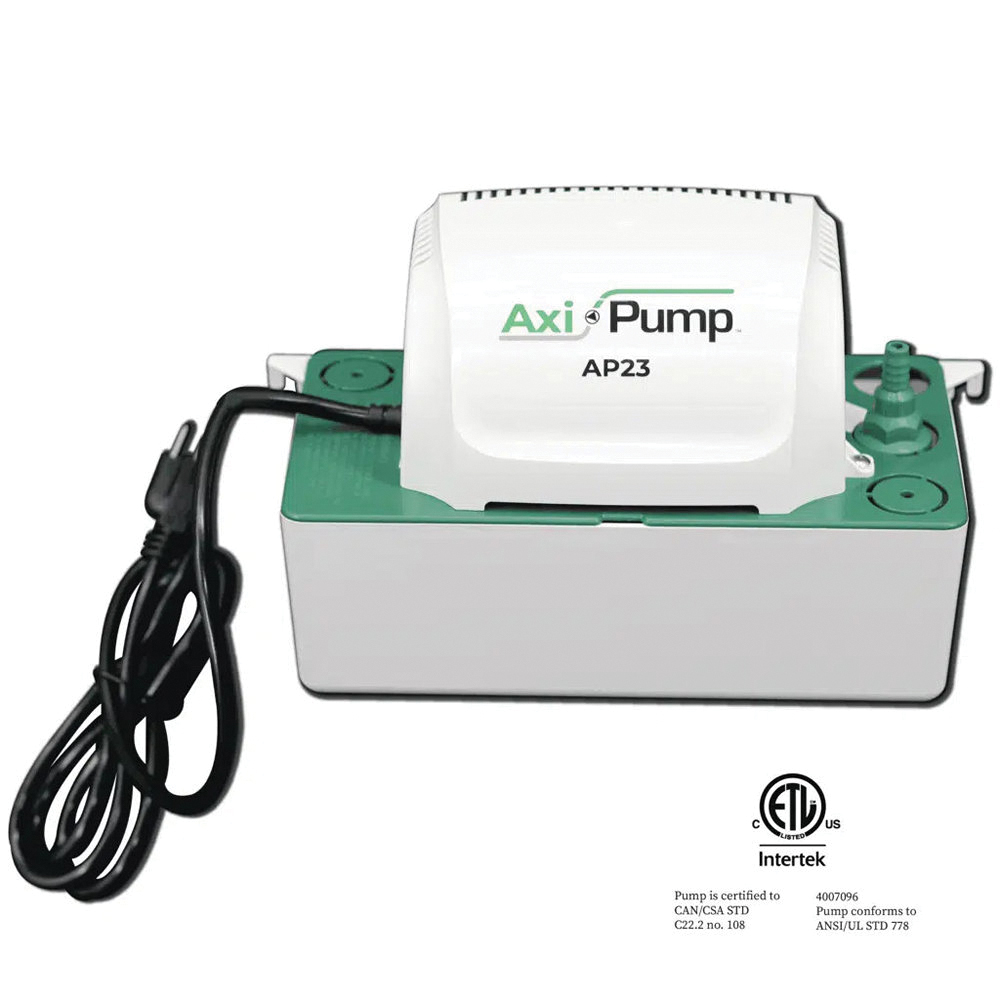

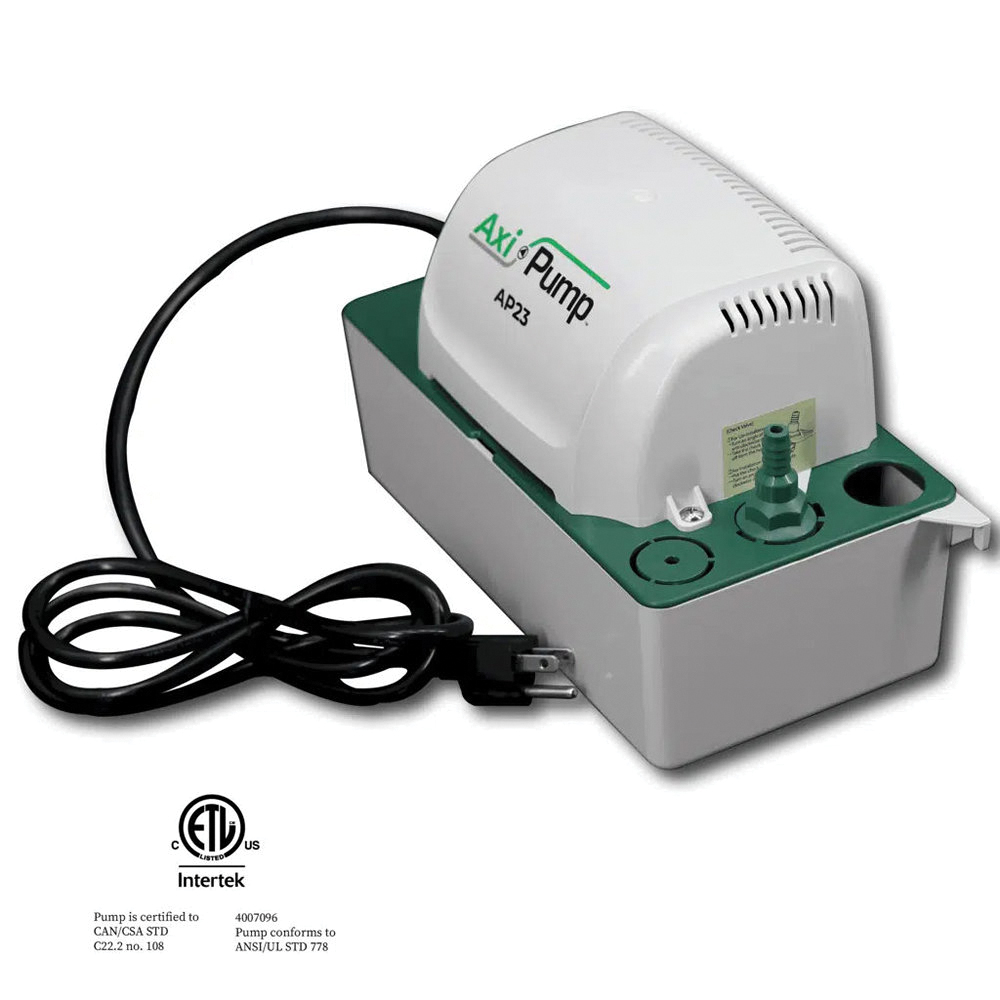

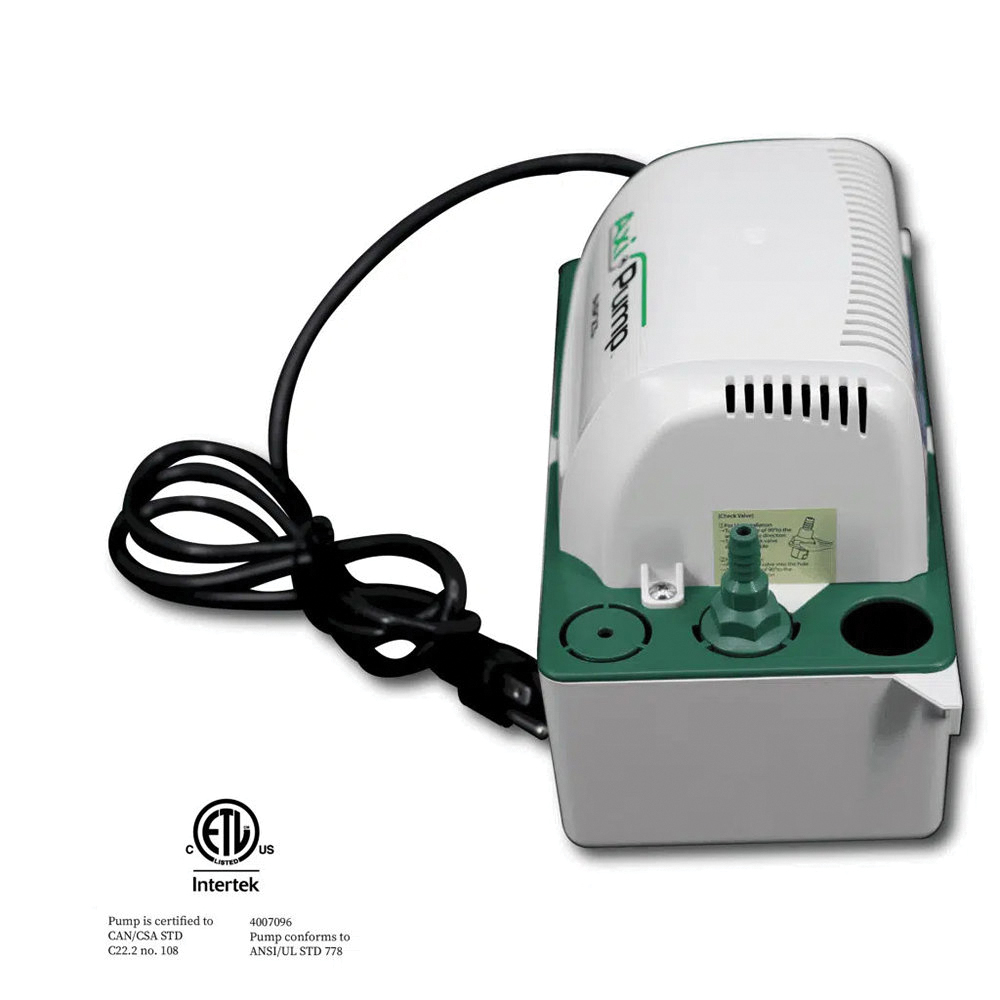

AXIOM AP23-ST Condensate Pump, 120 V, 1.38 A, 74 gph
- Manufacturer: Axiom Industries
- Brand Name: AXIOM
- Part#: AXMAP23-ST
- MPN: AP23-ST
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Axi-Pump Condensate Pumps automatically remove the condensate fluid produced from HVAC appliances like air conditioners, dehumidifier, including harsh acidic water generated from High-efficiency furnaces, boilers, and tankless water heaters.
AXIOM Condensate Pump, 120 V, 1.38 A, 78.4 W, 60 Hz, 74 gph Flow Rate, 1.8 L Capacity, 1.8 L Tank, 33 ft Suction Lift, 3/8 in Outlet, 269 mm L x 286 mm W x 166 mm H, For Use With: Air Conditioners, Dehumidifiers, Water Heaters
| Amperage Rating | : | 1.38 A |
| Capacity | : | 1.8 L |
| Dimensions | : | 269 mm L x 286 mm W x 166 mm H |
| Flow Rate | : | 74 gph |
| Frequency Rating | : | 60 Hz |
| Outlet Size | : | 3/8 in |
| Power Rating | : | 78.4 W |
| Suction Lift | : | 33 ft |
| Suitable For Use With | : | Air Conditioners, Dehumidifiers, Water Heaters |
| Tank Size | : | 1.8 L |
| Voltage Rating | : | 120 V |
- Built-in Wall Mount Tabs
- 3/8″ Outlet Connections
- Three Inlet Holes
- Corrosion Resistant Material
- Quiet Pump Operation
- Stainless Steel Pump Shaft
- Low Power Consumption
- 6′ Power Cord with Ground
- Thermal Safety Switch
- Removable Check Valve
- 0.5 USG Reservoir Tank
- Suitable for All HVAC Equipment
Instruction/Installation Manual
