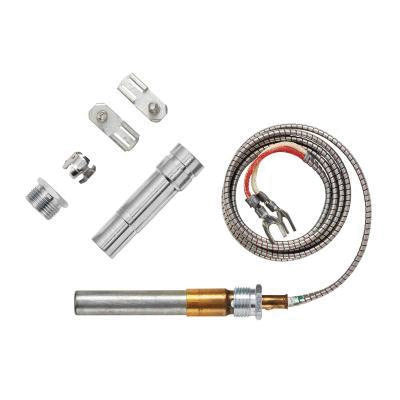

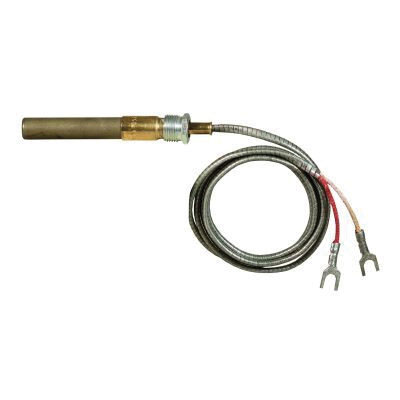

HONEYWELL Q313B1005 Thermopile, Spade, 750 mV, 35 in L Lead, 2.89 Ohm, 780 to 1400 deg F
- Manufacturer: Resideo Technologies Inc
- Brand Name: resideo
- Part#: HNWQ313B1005
- MPN: Q313B1005
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Q313 Thermopile Generator contains multiple thermocouples connected in series to provide 750mV. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
resideo Thermopile, Connection Type: Spade, 750 mV, 2.89 Ohm Resistance, 35 in Lead Length, 780 to 1400 deg F, Additional Information: For Use With Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
| Additional Information | : | For Use With Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners |
| Connection Type | : | Spade |
| Lead Length | : | 35 in |
| Resistance | : | 2.89 Ohm |
| Temperature Rating | : | 780 to 1400 deg F |
| Voltage Rating | : | 750 mV |
- Push-in clip, split nut, or adapter assembly available (depending on model) for easy pilot burner installation
- Spade or quick-connect terminals available for millivolt gas control connections
- Available in a variety of lead lengths
