Rheem® RGEGYB240AYF402BAAA0 USRRGEGYB240AYF402BAAA0
  1. pin-int

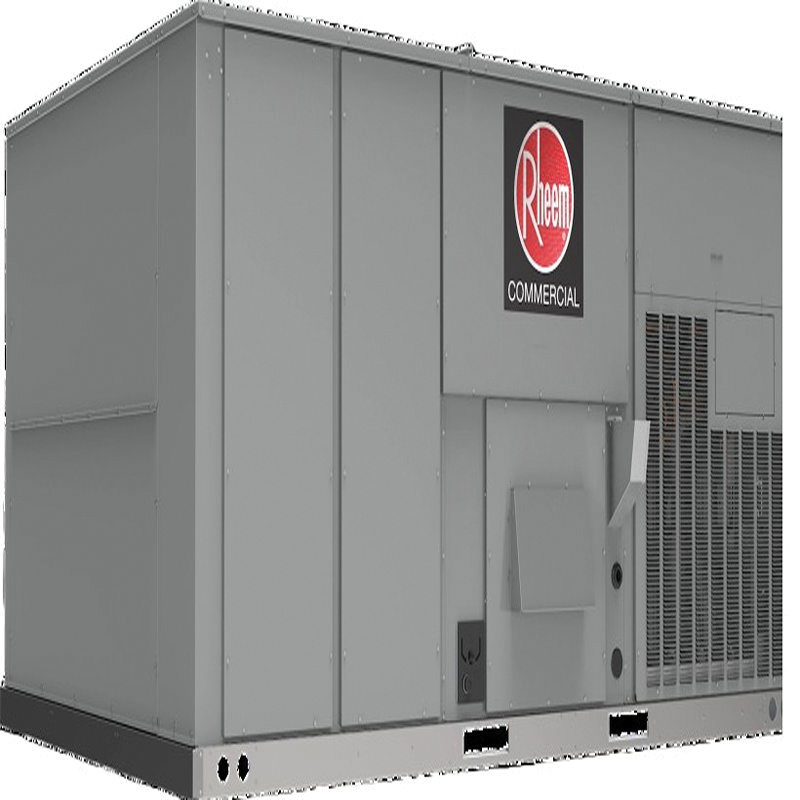

Rheem® Renaissance™ Line Classic® RGEGYB240AYF402BAAA0 Gas/Electric Packaged Unit, 240000 Btu/hr Input, 20 ton, 575 V

Rheem® Renaissance™ Line Classic® RGEGYB240AYF402BAAA0 Gas/Electric Packaged Unit, 240000 Btu/hr Input, 20 ton, 575 V

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Rheem®
  • Part#: USRRGEGYB240AYF402BAAA0
  • MPN: RGEGYB240AYF402BAAA0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Rheem® Gas/Electric Packaged Unit, RGEGYB Series, 240000 Btu/hr Input BTU Rating, 575 V Voltage Rating, 2-1/2 hp Rating, 1755 rpm Rotational Speed, 60 Hz Frequency Rating, 3 ph Phase, Scroll Compressor Type, 46.2 sq-ft Face Area Configuration, 8000 cfm Rating, 14 IEER Rating, 10.8 EER Rating, 20 ton Tonnage, 2 Number of Stages, R-454B Refrigerant Type, 96.1 dBA Decibel Rating, Ducted Vent, Ducted or Ductless, Direct Spark Ignition Type, Belt Drive Type, 1 in Connection, Connection Type: NPT, 1 in Drain Connection, (8) 2 x 24 x 20 in Filter Size, 81 % Steady State Efficiency, Aluminum, -30 to 70 deg C Temperature Rating, 58-1/2 in H x 126-15/16 in W x 86-3/16 in D Dimensions

CFM Rating      :      8000 cfm
Compressor Type      :      Scroll
Configuration      :      46.2 sq-ft Face Area
Connection Size      :      1 in
Connection Type      :      NPT
Decibel Rating      :      96.1 dBA
Dimensions      :      58-1/2 in H x 126-15/16 in W x 86-3/16 in D
Drain Connection      :      1 in
Drive Type      :      Belt
EER Rating      :      10.8
Filter Size      :      (8) 2 x 24 x 20 in
Frequency Rating      :      60 Hz
HP Rating      :      2-1/2 hp
IEER Rating      :      14
Ignition Type      :      Direct Spark
Input BTU Rating      :      240000 Btu/hr
Material      :      Aluminum
Number of Stages      :      2
Phase      :      3 ph
Refrigerant Type      :      R-454B
Rotational Speed      :      1755 rpm
Series      :      RGEGYB Series
Steady State Efficiency      :      81 %
Temperature Rating      :      -30 to 70 deg C
Tonnage      :      20 ton
Vent, Ducted or Ductless      :      Ducted
Voltage Rating      :      575 V
  • Nominal sizes: 15-25 Tons
  • Up to 10.8 EER / 14.0 IEER
  • Two-stage cooling
  • Coil Type: Full Interlaced MicroChannel
  • Optional PlusOne® ClearControl™, PlusOne® HumidiDry®
  • Refrigerant Type: R-454B with factory-installed sensor
