Rheem® RGEDYB102AYG152AAAA0 USRRGEDYB102AYG152AAAA0
  1. pin-int

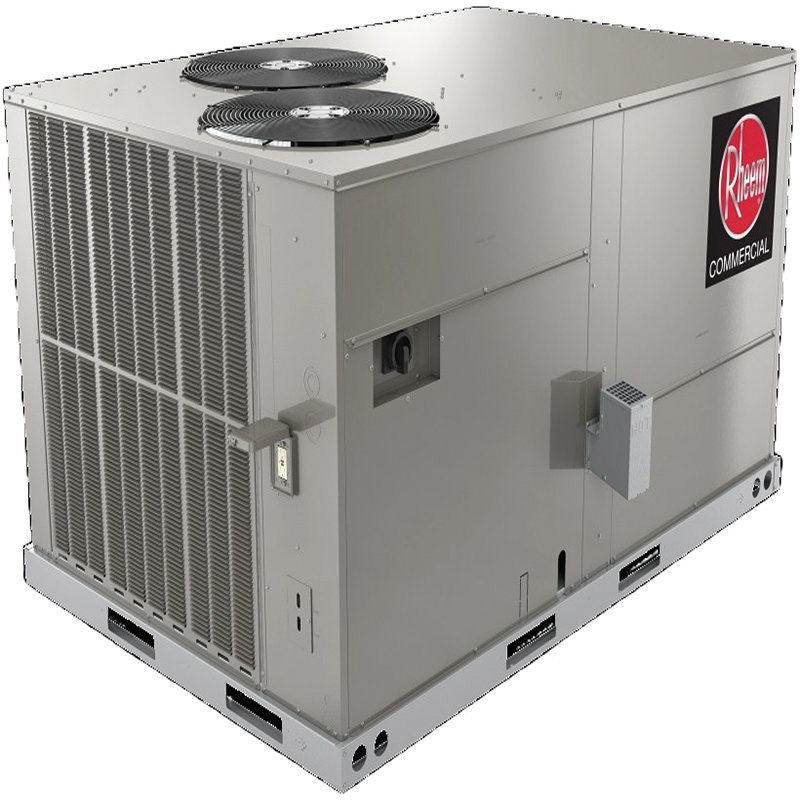

Rheem® Renaissance™ Line Classic® RGEDYB102AYG152AAAA0 Gas/Electric Packaged Unit, 99000 Btu/hr Input, 8.5 ton, 575 V

Rheem® Renaissance™ Line Classic® RGEDYB102AYG152AAAA0 Gas/Electric Packaged Unit, 99000 Btu/hr Input, 8.5 ton, 575 V

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Rheem®
  • Part#: USRRGEDYB102AYG152AAAA0
  • MPN: RGEDYB102AYG152AAAA0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Rheem® Gas/Electric Packaged Unit, RGEDYB Series, 99000 Btu/hr Input BTU Rating, 150000 Btu/hr Output BTU Rating, 575 V Voltage Rating, 1/5 hp Rating, 1725 rpm Rotational Speed, 60 Hz Frequency Rating, 3 ph Phase, Scroll Compressor Type, 25.6 sq-ft Face Area Configuration, 3400 cfm Rating, 14.6 IEER Rating, 11 EER Rating, 8.5 ton Tonnage, 6 Number of Burners, 2 Number of Stages, R-454B Refrigerant Type, 81 dBA Decibel Rating, Direct Spark Ignition Type, Belt Drive Type, 1/2 in Connection, 3/4 in Drain Connection, (4) 2 x 20 x 20 in Filter Size, 81 % Steady State Efficiency, Aluminum, -40 to 70 deg C Temperature Rating, 50 in H x 89 in W x 57-7/8 in D Dimensions

CFM Rating      :      3400 cfm
Compressor Type      :      Scroll
Configuration      :      25.6 sq-ft Face Area
Connection Size      :      1/2 in
Decibel Rating      :      81 dBA
Dimensions      :      50 in H x 89 in W x 57-7/8 in D
Drain Connection      :      3/4 in
Drive Type      :      Belt
EER Rating      :      11
Filter Size      :      (4) 2 x 20 x 20 in
Frequency Rating      :      60 Hz
HP Rating      :      1/5 hp
IEER Rating      :      14.6
Ignition Type      :      Direct Spark
Input BTU Rating      :      99000 Btu/hr
Material      :      Aluminum
Number of Burners      :      6
Number of Stages      :      2
Output BTU Rating      :      150000 Btu/hr
Phase      :      3 ph
Refrigerant Type      :      R-454B
Rotational Speed      :      1725 rpm
Series      :      RGEDYB Series
Steady State Efficiency      :      81 %
Temperature Rating      :      -40 to 70 deg C
Tonnage      :      8.5 ton
Voltage Rating      :      575 V
  • Nominal sizes: 7.5-12.5 Tons
  • Up to 11.0 EER / 14.6 IEER
  • Two-stage cooling
  • Coil Type: Full MicroChannel
  • Optional PlusOne® ClearControl™, PlusOne® HumidiDry®
  • Refrigerant Type: R-454B with factory-installed sensor
