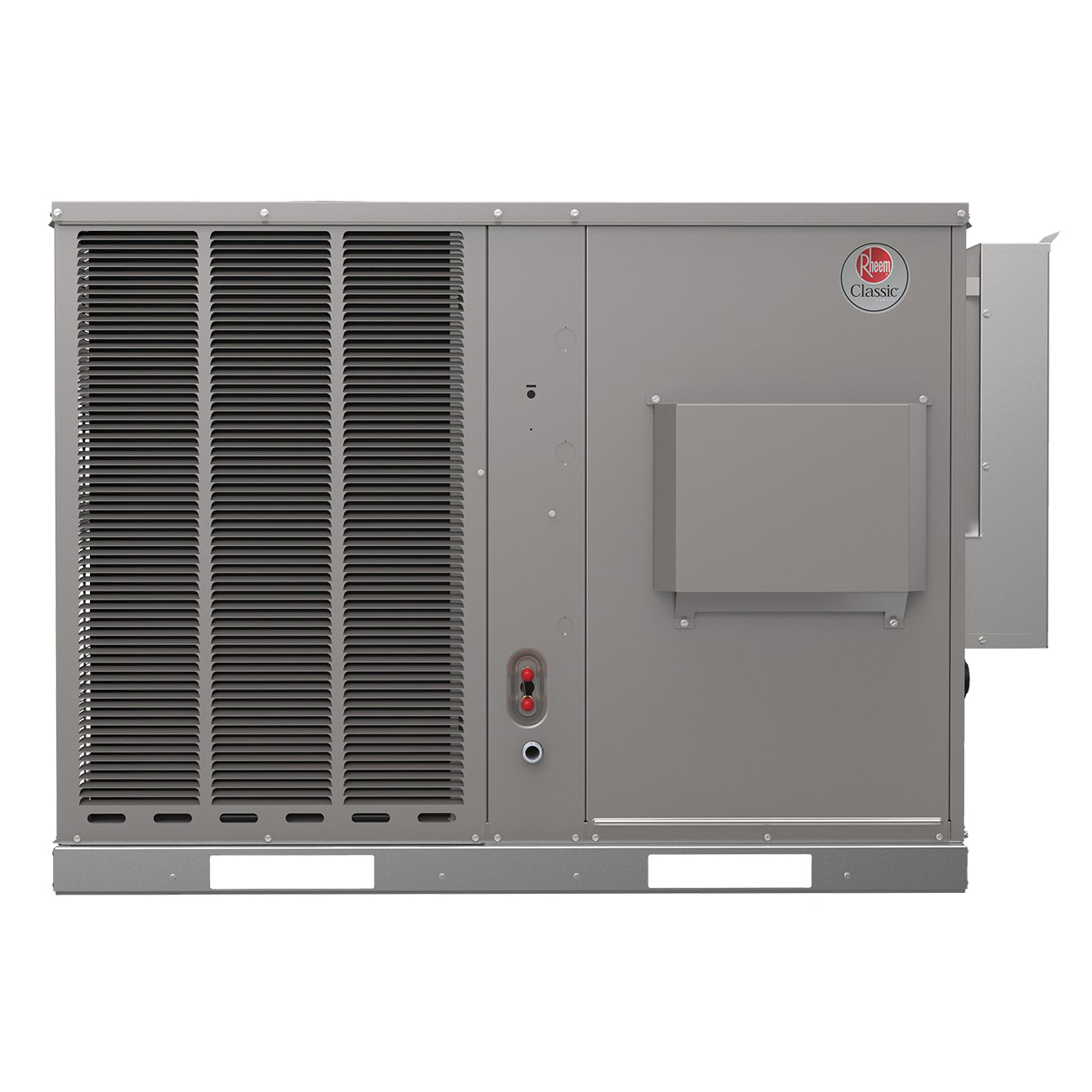

Rheem® Endeavor® Line Classic® RGEAYB Series RGEAYB060AJT081NAAJA Gas/Electric Packaged Unit, 80000 Btu/hr Input, 5 ton

Rheem® Gas/Electric Packaged Unit, RGEAYB Series, Input BTU Rating: 80000 Btu/hr, Output BTU Rating: 60000 Btu/hr, 208/230 V, 5.21 kW Wattage, 1 hp, 1050 rpm Rotational Speed, 60 Hz, 1 ph Phase, Scroll Compressor, 2000 cfm, 10.6 EER Rating, 13.4 SEER, 81 % AFUE Rating, Tonnage: 5 ton, 4 Burners, 1 Stages, R-454B Refrigerant, 79 dBA Decibel, Direct Spark Ignition, Blower Size: 12 x 9 in, 1/2 in Connection, 3/4 in Drain Connection, (1) 1 x 24 x 24 in Filter, 82 % Steady State Efficiency, Stainless Steel, 19.4 to 36.1 deg C, 41 in H x 47-1/2 in W x 52-7/16 in D

• Scroll Compressors on all models: Provides maximum efficiency and quiet operation
• MicroChannel Evaporator and Condenser Coil: Delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. All aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. It is easier to clean and has a more robust surface.
• Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions
• High Pressure Control: Standard on all models for refrigerant component protection and reliability
• Filter Drier: Standard on all models
• 100% Factory Run Tested
• Stainless Steel Heat Exchanger Option: Available factory installed for better corrosion resistance. This is standard on all ULN models
• PlusOne® Ignition System: Proven Direct Spark Ignition System (DSI) for reliability and longevity
• PlusOne® Refrigerant Detection System™1: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
• Rugged Base Rail: For improved installation and handling
• Easily Accessible Control Box, Furnace Compartment and Slide-Out Blower Section: Allows for installability and serviceability
• Side and Down Discharge Options Available: All models are shipped ready for horizontal applications
• Double Sloped Evaporator Coil Drain Pan: Allows for complete water removal from the unit - contributing to improved indoor air quality
• Louvered Condenser Compartment: Protects the coil against yard hazards and/or weather extremes
• Supply and Return Air Openings: Feature a one-inch-tall flange to prevent water migration into the ductwork
• Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants with only minimal changes to system installation. For us, this is another step toward our continued sustain ability goal of reducing greenhouse gas emissions, while still delivering an exceptional level if energy efficient, dependable comfort
