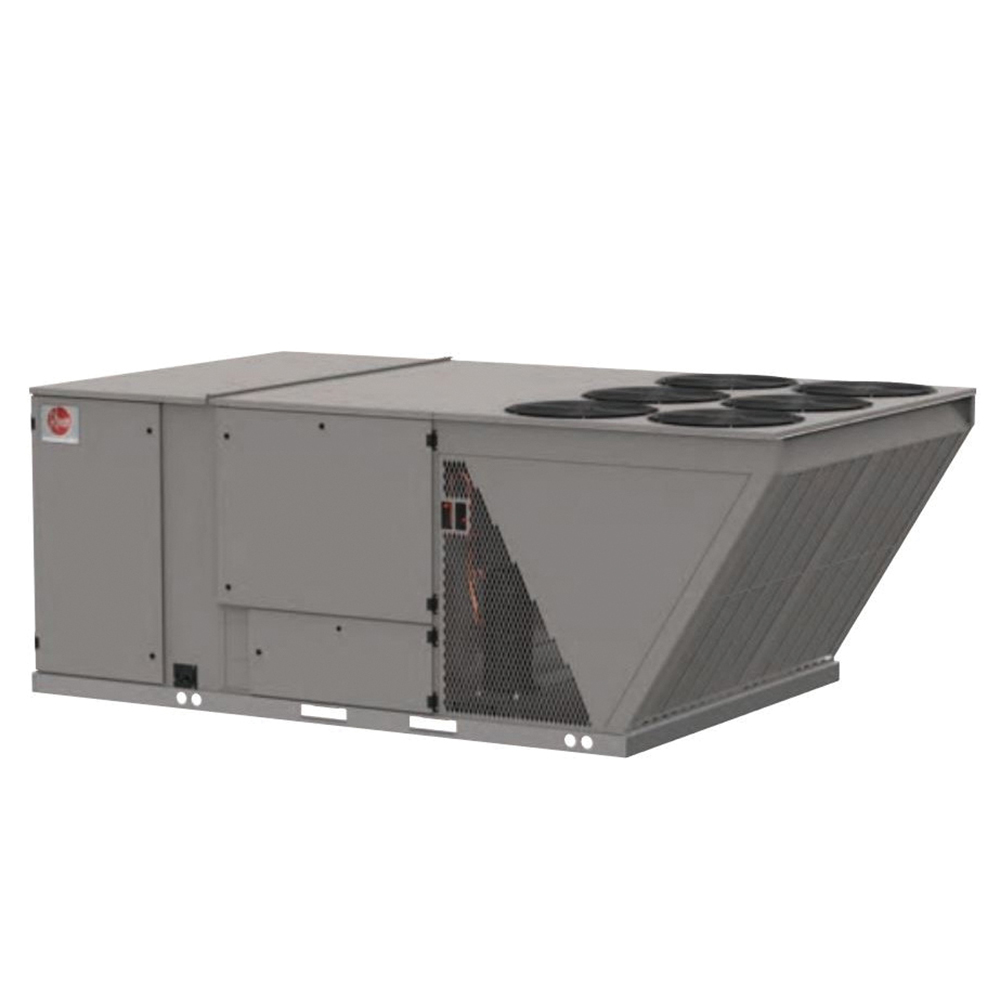

Rheem® Commercial Renaissance™ RACH Series RACHYB360AYH000CAAA0 Packaged Air Conditioner, 27.5 ton Nominal, 575 V
- Manufacturer: Rheem Manufacturing
- Brand Name: Rheem®
- Part#: USRRACHYB360AYH000CAAA0
- MPN: RACHYB360AYH000CAAA0
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
-
Other Branch Availability
Rheem® Packaged Air Conditioner, RACH Series, Model: RACHYB, 27.5 ton Nominal Capacity, 348000 Btu/hr Cooling Capacity, 348000 Btu/hr Cooling, 575 V, 33 kW Wattage, 60 Hz, 3 ph Phase, Scroll Compressor, Convertible Airflow, 11000 cfm, 13.2 IEER, 10 EER Rating, 1 Outdoor Fan, Multiple Indoor Fan Speed, 5 Cool Stages, R-454B Refrigerant, 82.9 dB Sound Level, Rooftop Mounting, Belt Drive, 23 FPI, 52.4 sq-ft Face Area Outdoor, 15 FPI, 26.7 sq-ft Face Area Indoor Coil, (8) 2 x 25 x 20 in Filter, Steel, Galvanized, 115 deg F, 152-1/16 in L x 85-29/32 in W x 57 in H
| CFM Rating | : | 11000 cfm |
| Coil Rating | : | 23 FPI, 52.4 sq-ft Face Area Outdoor, 15 FPI, 26.7 sq-ft Face Area Indoor |
| Compressor Type | : | Scroll |
| Configuration | : | Convertible Airflow |
| Cooling BTU Rating | : | 348000 Btu/hr |
| Cooling Capacity | : | 348000 Btu/hr |
| Dimensions | : | 152-1/16 in L x 85-29/32 in W x 57 in H |
| Drive Type | : | Belt |
| EER Rating | : | 10 |
| Filter Size | : | (8) 2 x 25 x 20 in |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| IEER Rating | : | 13.2 |
| Material | : | Steel |
| Model | : | RACHYB |
| Mounting Type | : | Rooftop |
| Nominal Capacity | : | 27.5 ton |
| Number of Speeds | : | 1 Outdoor Fan, Multiple Indoor Fan |
| Number of Stages | : | 5 Cool |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-454B |
| Series | : | RACH Series |
| Sound Level | : | 82.9 dB |
| Temperature Rating | : | 115 deg F |
| Voltage Rating | : | 575 V |
| Wattage | : | 33 kW |
- Factory charged with R-454 refrigerant
- Wired and run tested at the factory
- Powder Paint Finish meets ASTM® B117 test requirements.
- G90 galvanized steel coated on each side for maximum protection
- Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers in the air stream
- Cooling operation up to 125 deg F ambient
- Scroll compressors with internal line break overload and high-pressure protection
- One single-stage and one two-stage compressor for 5 total stages of cooling
- MicroChannel condenser coil and Tube and Fin evaporator coil
- Blower with variable frequency drive (VFD) control
- Single- and multi-zone variable air volume (VAV) capable
- High pressure and low pressure/loss of charge protection
- Permanently lubricated evaporator and condenser motors
- Internally protected condenser motors with totally enclosed shaft down design
- Fork-able base rails for easy handling and lifting
- Color-coded and labeled wiring
- Single point electrical connections
- Field convertible airflow-vertical downflow or horizontal sideflow
- Solid-core liquid line filter drier
- Hinged major access doors with heavy-duty gasketing and 1/4 turn latches
