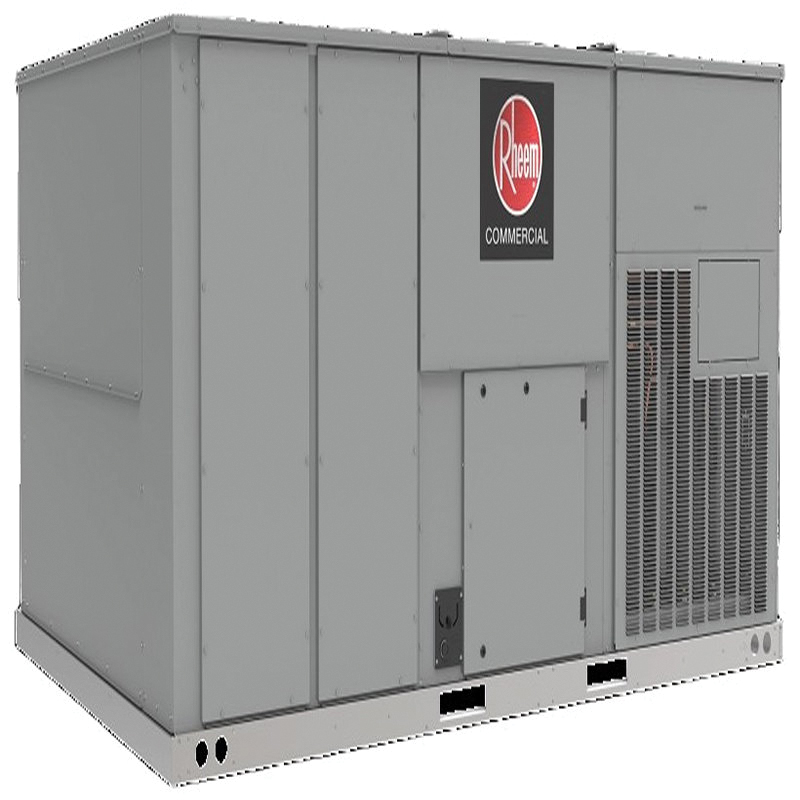

Rheem® Commercial Renaissance™ RACG Series RACGYB180AYH000BAAA0 Packaged Air Conditioner, 15 ton Nominal, 575 V

Rheem® Packaged Air Conditioner, RACG Series, Model: RACGYB, 15 ton Nominal Capacity, 180000 Btu/hr Cooling Capacity, 180000 Btu/hr Cooling, 575 V, 15.12 kW Wattage, 3/4 hp Outdoor Fan, 1100 rpm Outdoor Fan Rotational Speed, 60 Hz, 3 ph Phase, Scroll Compressor, Convertible Airflow, 6000 cfm, 14.2 IEER, 11 EER Rating, 1 Outdoor Fan, 1 Indoor Fan Speed, 2 Cool Stages, R-454B Refrigerant, 83 dB Sound Level, Rooftop Mounting, Belt Drive, 23 FPI, 36.3 sq-ft Face Area Outdoor, 18 FPI, 23.8 sq-ft Face Area Indoor Coil, (8) 2 x 24 x 20 in Filter, Steel, Galvanized, 125 deg F, 127-3/4 in L x 86-3/4 in W x 58-1/2 in H

• Factory charged with R-454B refrigerant
• Wired and run tested
• Factory-installed refrigerant leak detection
• Scroll compressors with internal line break overload and high pressure protection
• All models have two compressor stages
• Field Convertible airflow - vertical down flow or horizontal side flow
• Forkable base rails for easy handling and lifting
• Cooling operation up to 125 deg F ambient
• Patented PlusOne® SmartShield™ Interlaced MicroChannel Coil Design
• Overflow condensate sensor
• PlusOne® Diagnostics with Dual 7-Segment LED Display to meet code compliance
• Base pan with drawn supply and return opening
• 1/4 turn fasteners on filter access door (On hinged models only)
• Color-coded and labeled wiring
• TXV refrigerant metering system
• Solid-core liquid line filter drier
• High pressure and low pressure/loss of charge protection with built in Smart Logic
• Insulation encapsulated throughout entire unit
• High performance belt drive motor with variable pitch pulleys and quick adjust belt system
• Blower with Variable Frequency Drive (VFD) control is standard
