Rheem® RACDYB150AYG000AAAA0 USRRACDYB150AYG000AAAA0
  1. pin-int

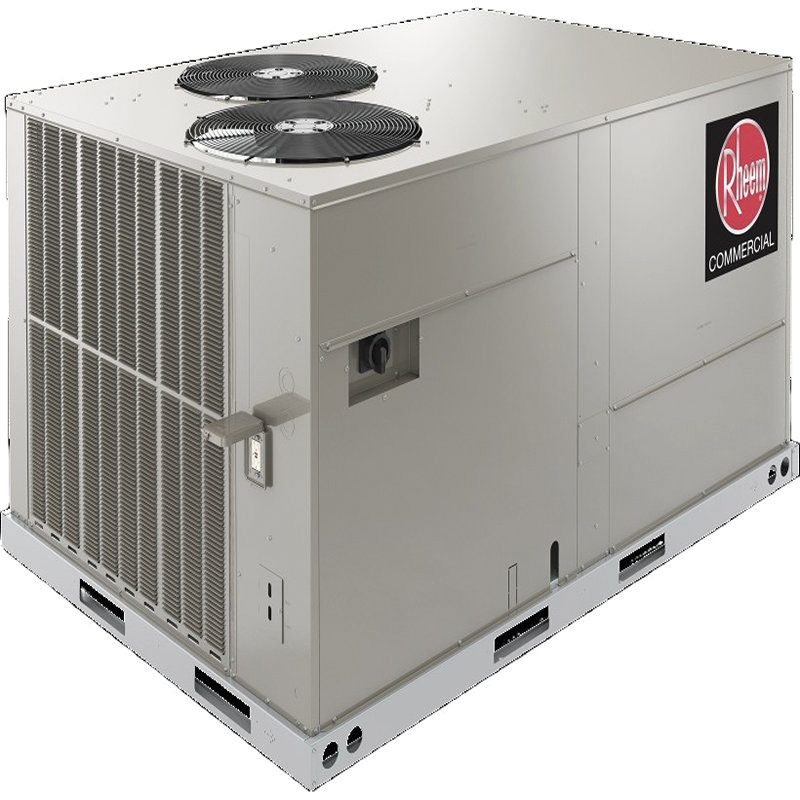

Rheem® Commercial Renaissance™ RACD Series RACDYB150AYG000AAAA0 Packaged Air Conditioner, 12.5 ton Nominal, 575 V

Rheem® Commercial Renaissance™ RACD Series RACDYB150AYG000AAAA0 Packaged Air Conditioner, 12.5 ton Nominal, 575 V

  • Manufacturer: Rheem Manufacturing
  • Brand Name: Rheem®
  • Part#: USRRACDYB150AYG000AAAA0
  • MPN: RACDYB150AYG000AAAA0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

Rheem® Packaged Air Conditioner, RACD Series, Model: RACDYB, 12.5 ton Nominal Capacity, 148000 Btu/hr Cooling Capacity, 148000 Btu/hr Cooling, 575 V, 13.15 kW Wattage, 3/4 hp Outdoor Fan, 1100 rpm Outdoor Fan, 1725 Indoor Fan Rotational Speed, 60 Hz, 3 ph Phase, Scroll Compressor, Convertible Airflow, 5000 cfm, 14.2 IEER, 11 EER Rating, 1 Outdoor Fan, 2 Indoor Fan Speed, 2 Cool Stages, R-454B Refrigerant, 87 dB Sound Level, Rooftop Mounting, Belt Drive, 23 FPI, 16.46 sq-ft Face Area Outdoor, 20 FPI, 8.41 sq-ft Face Area Indoor Coil, (4) 2 x 16 x 16 in Filter, Steel, Galvanized, 115 deg F, 90-1/8 in L x 59-1/2 in W x 60 in H

CFM Rating      :      5000 cfm
Coil Rating      :      23 FPI, 16.46 sq-ft Face Area Outdoor, 20 FPI, 8.41 sq-ft Face Area Indoor
Compressor Type      :      Scroll
Configuration      :      Convertible Airflow
Cooling BTU Rating      :      148000 Btu/hr
Cooling Capacity      :      148000 Btu/hr
Dimensions      :      90-1/8 in L x 59-1/2 in W x 60 in H
Drive Type      :      Belt
EER Rating      :      11
Filter Size      :      (4) 2 x 16 x 16 in
Finish      :      Galvanized
Frequency Rating      :      60 Hz
HP Rating      :      3/4 hp Outdoor Fan
IEER Rating      :      14.2
Material      :      Steel
Model      :      RACDYB
Mounting Type      :      Rooftop
Nominal Capacity      :      12.5 ton
Number of Speeds      :      1 Outdoor Fan, 2 Indoor Fan
Number of Stages      :      2 Cool
Phase      :      3 ph
Refrigerant Type      :      R-454B
Rotational Speed      :      1100 rpm Outdoor Fan, 1725 Indoor Fan
Series      :      RACD Series
Sound Level      :      87 dB
Temperature Rating      :      115 deg F
Voltage Rating      :      575 V
Wattage      :      13.15 kW
  • Factory charged with R-454B refrigerant
  • Wired and run tested
  • Scroll compressors with internal line break overload and high pressure protection
  • Models have two stages of cooling
  • Convertible airflow - vertical down flow or horizontal side flow
  • Forkable base rails for easy handling and lifting
  • Cooling operation up to 125 deg F ambient
  • MicroChannel evaporator and condenser coil
  • Overflow condensate sensor
  • PlusOne® Diagnostics with Dual 7-Segment LED Display to meet code compliance
  • One-piece top cover and base pan with drawn supply and return opening
  • Two-piece control door
  • 1/4 turn fasteners on filter access door
  • Color-coded and labeled wiring
  • External lockable gauge ports
  • TXV refrigerant metering system
  • Solid-core liquid line filter drier
  • High pressure and low pressure/loss of charge protection with built in Smart Logic
  • Insulation encapsulated throughout entire unit
  • High performance belt drive motor with variable pitch pulleys and quick adjust belt system
