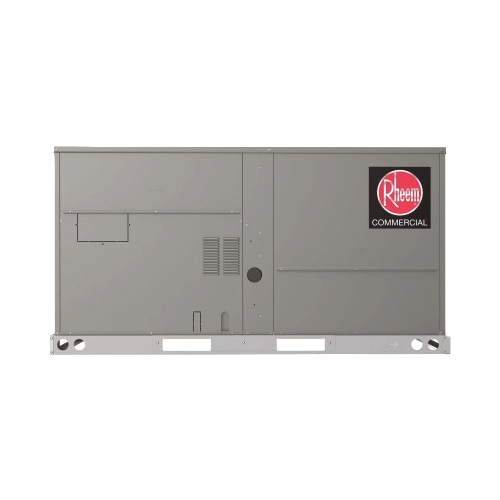

Rheem® Commercial Renaissance™ RACC Series RACCYB036AYU000AAAA0 Packaged Air Conditioner, 3 ton Nominal, 575 V, 1200 cfm

Rheem® Packaged Air Conditioner, RACC Series, Model: RACCYB, 3 ton Nominal Capacity, 36000 Btu/hr Cooling Capacity, 36000 Btu/hr Cooling, 575 V, 2.7 kW Wattage, 1/5 hp Outdoor Fan, 1-1/2 hp Indoor Fan, 850 rpm Outdoor Fan, 1050 Indoor Fan Rotational Speed, 60 Hz, 3 ph Phase, Scroll Compressor, Convertible Airflow, 1200 cfm, 10.6 EER Rating, 13.4 SEER, 1 Outdoor Fan, Multiple Indoor Fan Speed, 1 Cool Stages, R-454B Refrigerant, 78 dB Sound Level, Rooftop Mounting, Direct Drive, 23 FPI, 16.46 sq-ft Face Area Outdoor, 20 FPI, 7.48 sq-ft Face Area Indoor Coil, (4) 2 x 16 x 16 in Filter, Steel, Galvanized, 115 deg F, 79-1/4 in L x 46-3/4 in W x 41-3/8 in H

• Factory charged with R-454B refrigerant
• Factory installed refrigerant leak detection system
• Wired and run tested
• Scroll compressors with internal line break overload and high pressure protection
• Convertible airflow - vertical down flow or horizontal side flow
• Forkable base rails for easy handling and lifting
• Cooling operation up to 125 deg F ambient
• MicroChannel evaporator and condenser coil
• Overflow condensate sensor
• Diagnostics with Dual 7-Segment LED Display to meet code compliance
• One-piece top cover and base pan with drawn supply and return opening
• Two-piece control door
• 1/4 turn fasteners on filter access door
• Color-coded and labeled wiring
• External lockable gauge ports
• TXV refrigerant metering system
• Solid-core liquid line filter drier
• High pressure and low pressure/loss of charge protection with built-in Smart Logic
• Insulation encapsulated throughout entire unit
• Standard Modbus interface
